Vehicle Systems Disassembly & Assembly
3.

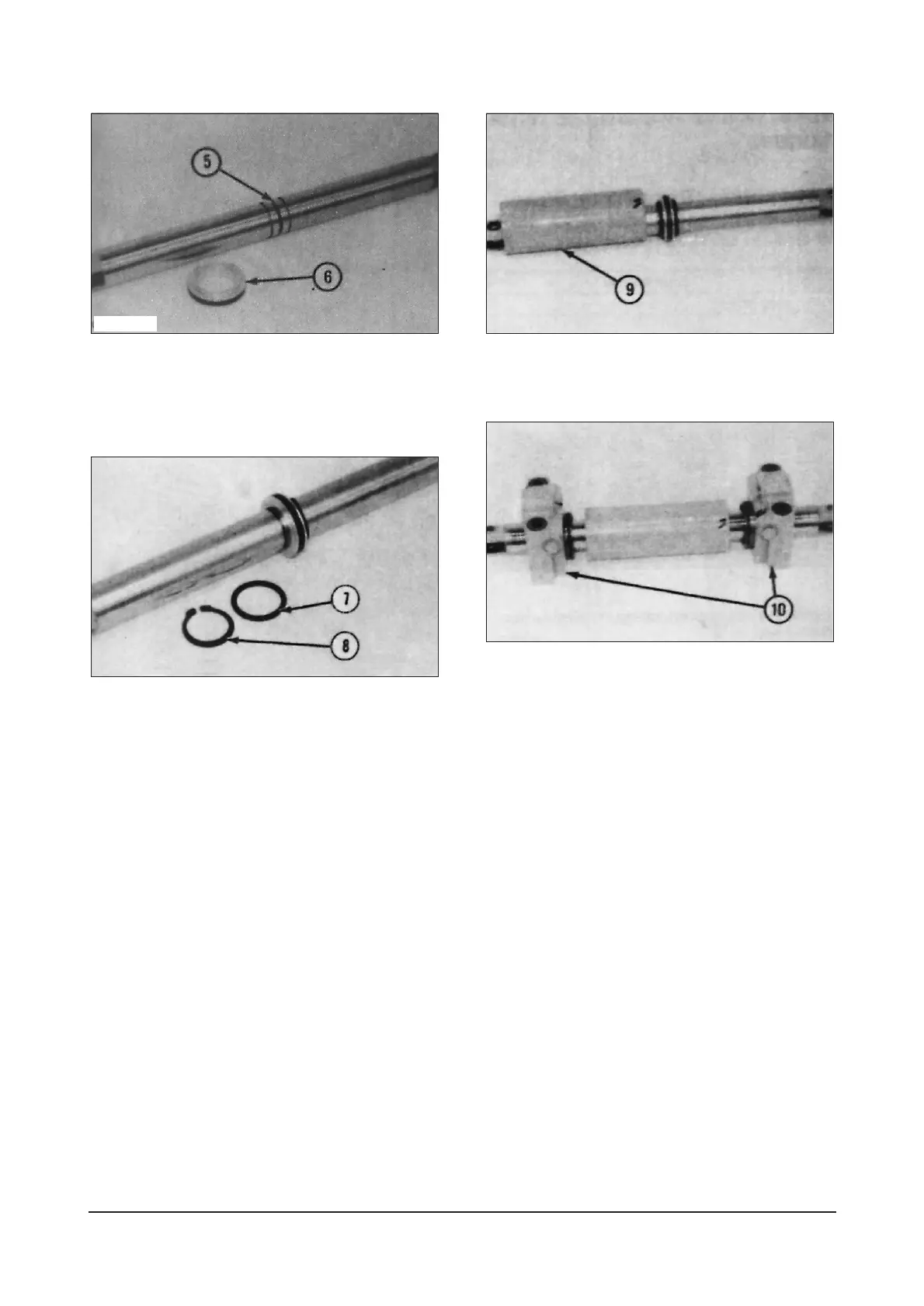

Install O-ring seal (5) on the cylinder rod.
4. Install piston (6) on the cylinder rod.
5. Install rings (7).
6. Use tool (A) to install retaining rings (8) on each
side of the piston.
7. Install cylinder tube (9) on the rod assembly.
NOTE : Install the nuts and rods (A) on steering
cylinder after installing the cylinder end caps. (see
“Remove & Install Steering Cylinder” in this module)
8. Install end caps (11) on cylinder tube (10).
End By :
a. Install the steering cylinder.
41
