Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
16.

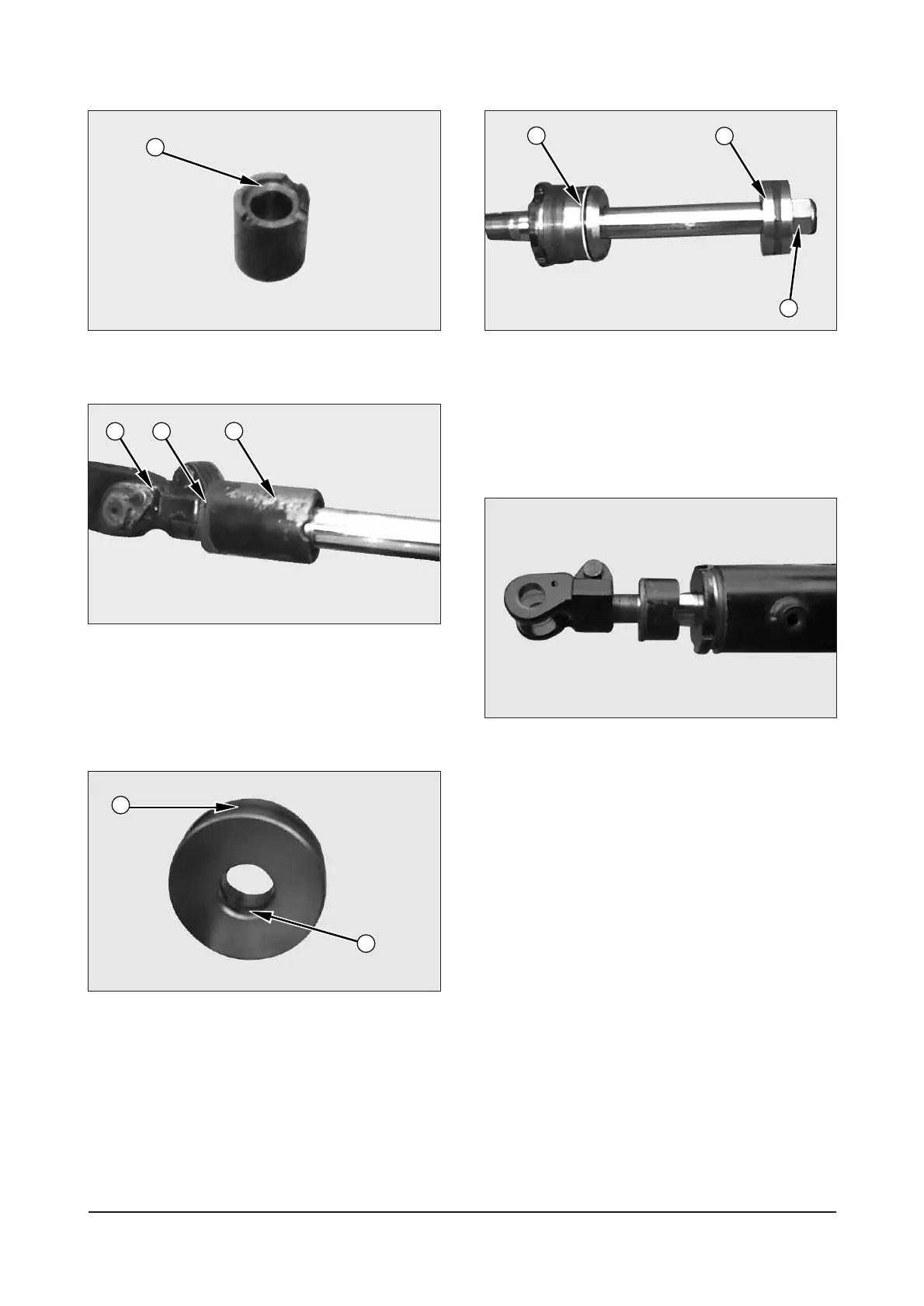

Install seal (11) in the spacer.
17. Install spacer (6).
18. Install shims (8) and rod eye (2). Tighten the bolt
on rod eye (2) to a torque of
95
LL
15 N•m
(70
LL
11 lb•ft).
19. Install seals (10) and O-ring seal (9) on the pis-
ton
20. Install head assembly (5) on the cylinder rod.
21. Install piston assembly (4) onto the cylinder rod.
22. Install nut (3). Tighten nut (3) to a torque of
270
LL
30 N•m (200
LL
22 lb•ft).
23. Install the rod assembly in the cylinder body.
38
IDCD458P IDCD422P
IDCD427P
IDCD423P
IDCD423P
11
5
4
3
2
10
9
8
6
