Vehicle Systems Disassembly & Assembly

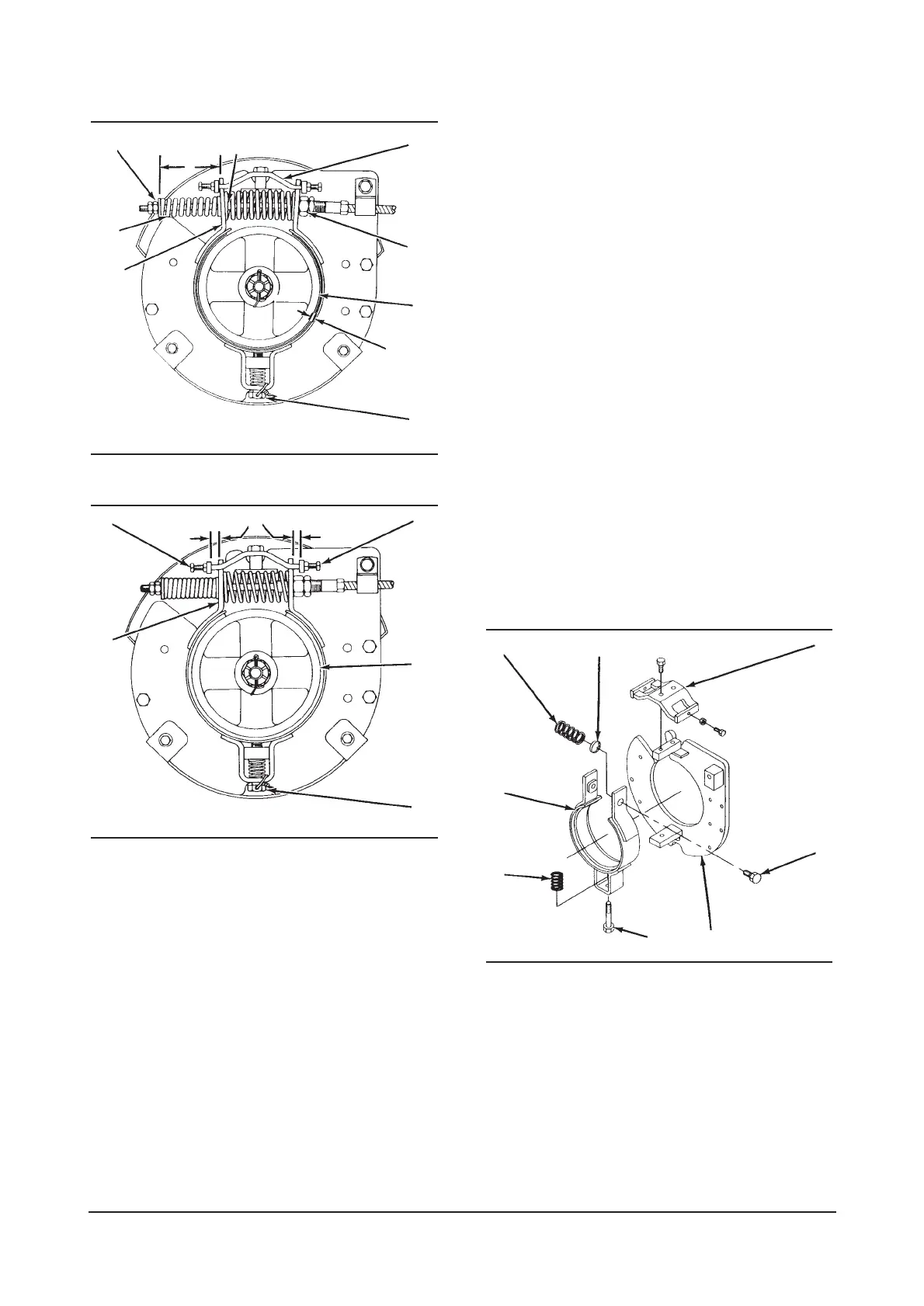

Brake Off
Brake On
8. Adjust the parking brake as follows: adjust drum (6)
to the strap assembly lining clearance with bolt (14).
Adjust bolt (14) until the clearance at point (A) is
0.25 to 0.50 mm(.010 to .020 in). Install the wire to
hold the adjustment.
9. With the parking brake lever assembly in the
“OFF” position and cable assembly shoulder (10)
seated against strap assembly (12), as shown in
BRAKE OFF, adjust nuts (1) until spring (3) over
travel (X) is 70.0
L 0.5mm (2.76 L .02 in).
10. With the parking brake applied, adjust off position
stop bolts (15) and (16) until there is a clearance
(Y) of 6.0 mm (.24 in) maximum between strap
assembly (12) and bracket assembly (11).
Tighten the nuts to hold the adjustment.
11. With the parking brake lever assembly in the
“OFF” position, adjust retaining nut (13) so that
the lever assembly returns to the full off position
and strap assembly (12) contacts stop bolts (15)
and (16).
Disassemble And Assemble Parking
Brake
Start By:
a. remove parking brake
1. Remove the wire, bolt (7) and spring (6). Remove
retaining nut (5), spring (1) and ring (2).
2. Remove bracket assembly (3). Remove strap
assembly (4) from bracket assembly (8).
62
IDCD328S
IDCD329S
IDCD330S
1
X
10
3
12
14
15
12
16
6
14
3
5
1
4
6
2
A
6
13
11
Y
