12.

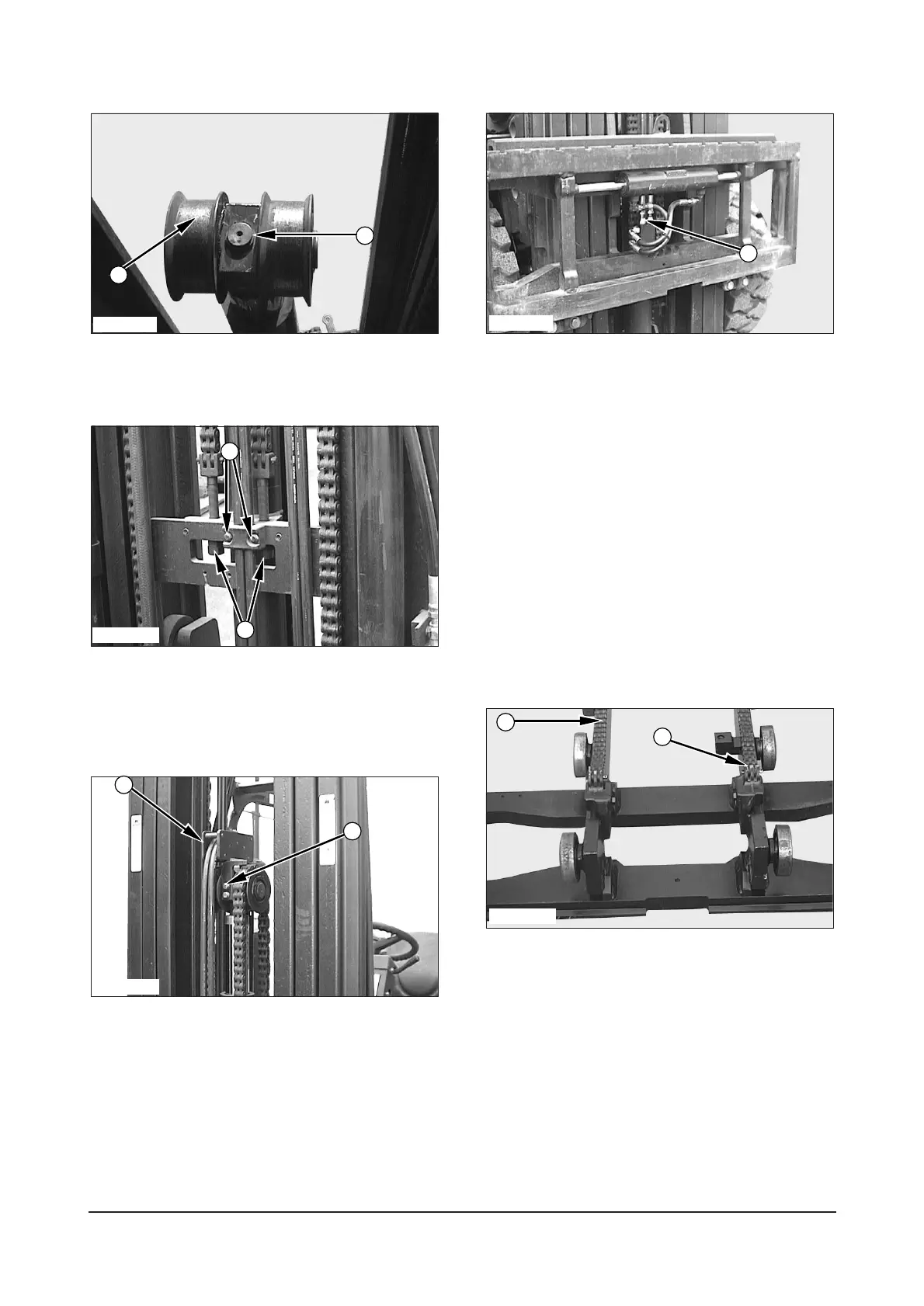

Install cross head(12) and retaining ring(11).
13. Put the chains in position over cross head(12).
Install nuts(9) onto the chain anchors.
Install bolts(10) onto the hose mounting bracket.
14. Install chain guard/hose support assembly(6) and
four bolts(8).
15. Connect two hydraulic line(4) in their original
positions.
End By:
a. Install backrest.
b. Install forks.
Disassemble Carriage
Start By:
a. Remove carriage.
Typical Example
1. Remove the roll pins and pins(2) to disconnect
chains(1).
10
IDCD009P
IDCD006P
IDCD011P
8
1
2
6
11
12
IDCD008P
IDCD005P
4
10
9
