Vehicle Systems Disassembly & Assembly
Typical Example

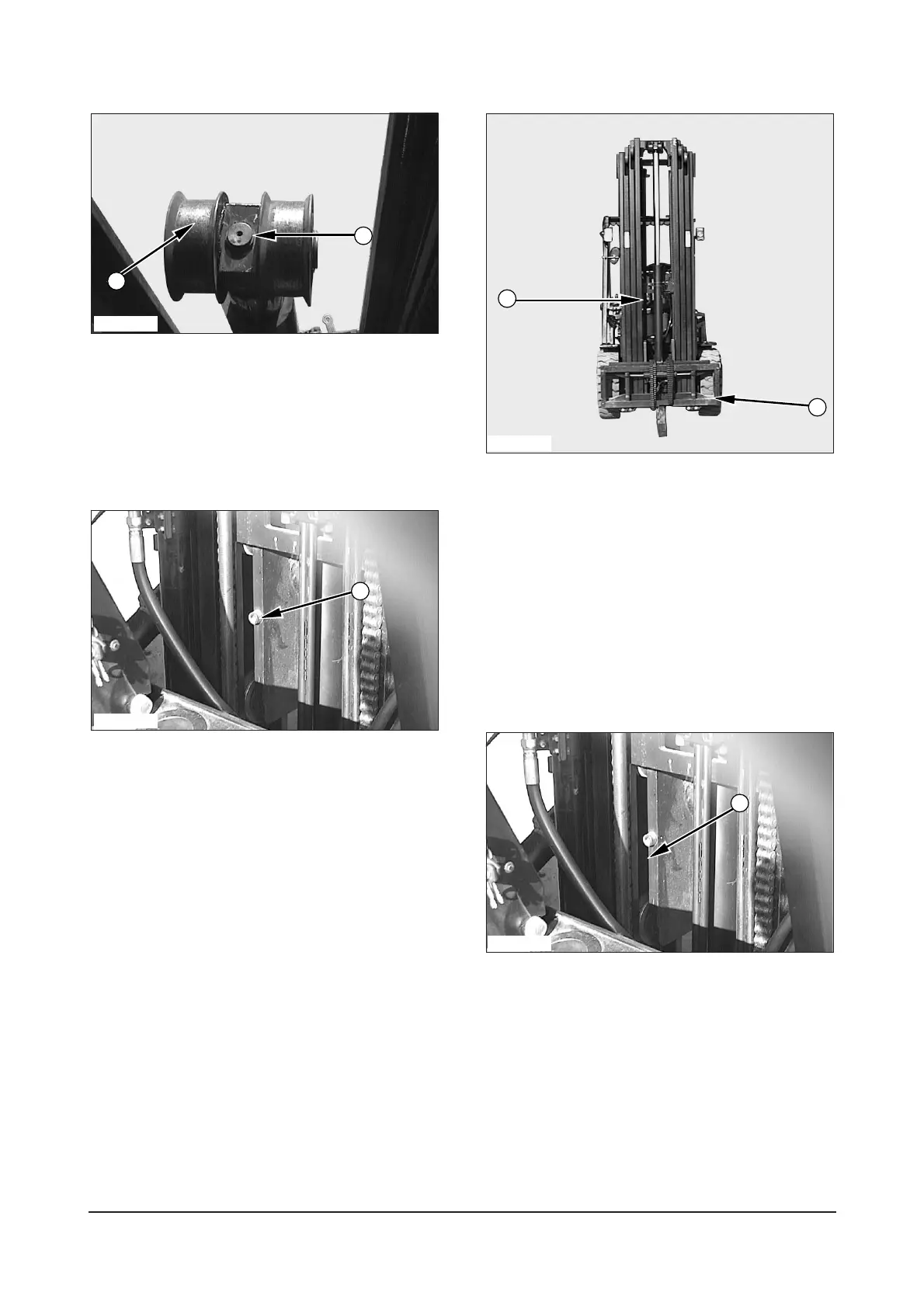

5. Use tool(A) to remove retainer ring(11) from the
cross head shaft.
6. Remove cross head(12) from the shaft.
7. Remove carriage bolts(13).
8. Raise the inner mast to pull out carriage as
shown.
9. Remove carriage from bottom of inner mast(15).
Carriage(14) weighs
116kg(255 lb).
NOTE: Use the following steps to install the carriage.
10. Raise the inner mast to put in the carriage onto
the mast, and lower the inner mast to cover
carriage(1) bearing fully.
11. Install carriage bolts(13).
9
