Vehicle Systems Disassembly & Assembly
1.

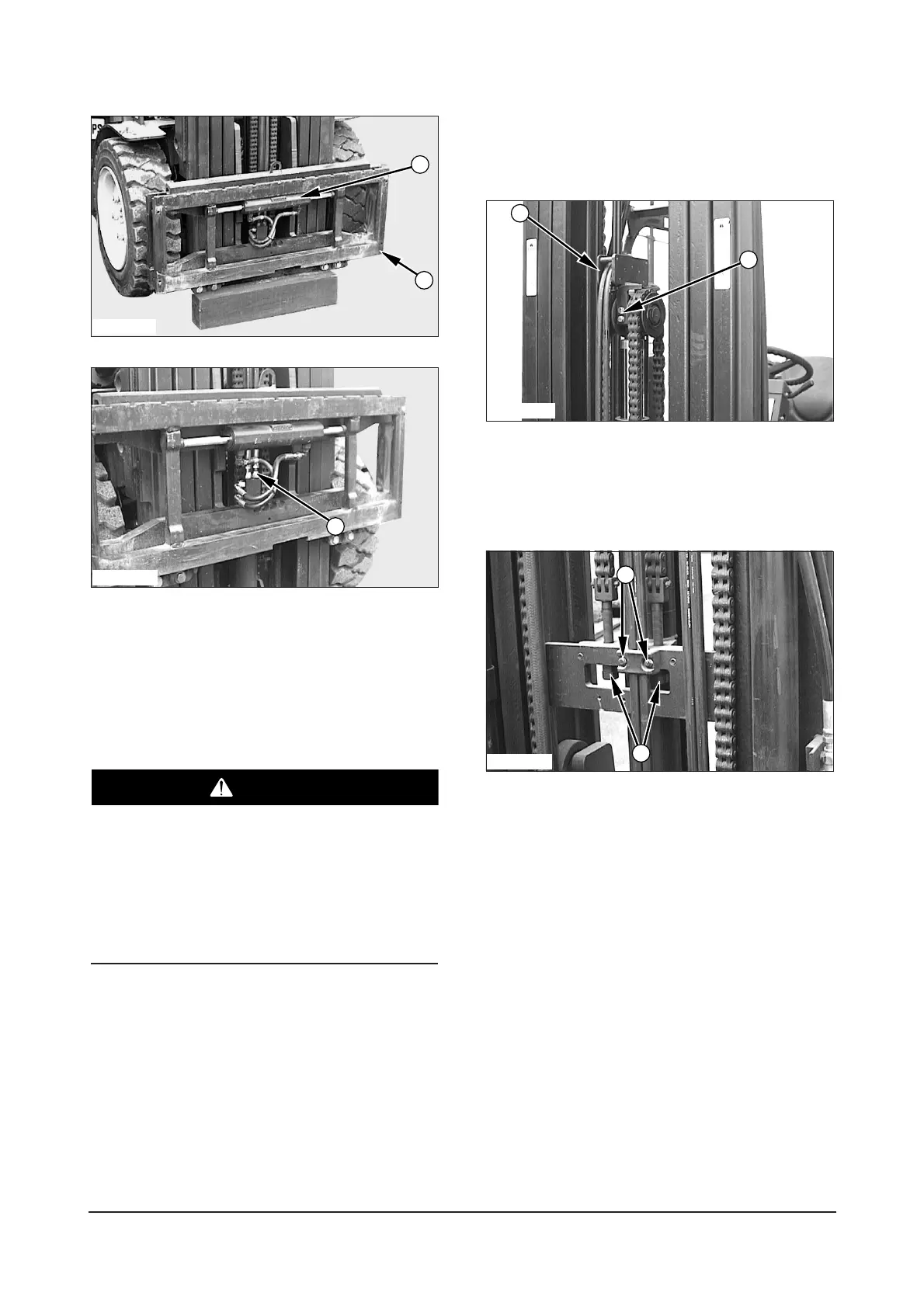

Raise carriage(1). Position a wooden block as
shown. Lower carriage(1) onto the wooden block.
2. Disconnect two hydraulic lines(4) from side shifter
cylinder (2). Plug and cap all openings to prevent
contamination and debris from entering system.
To prevent personal injury be sure pressure in the
hydraulic system has been released before
disconnecting any hydraulic lines. Slowly loosen
the cap of the hydraulic tank to release any
pressure in the tank. Be cautious of hot hydraulic
oil when any lines are disconnected in the
hydraulic system.
NOTE:
For purposes of reassembly, identify and
mark all hydraulic lines and connectors before
removing or disconnecting.
3. Remove four bolts(8) from the chain guard/hose
support assembly(6). Set the hoses aside, clear of
the primary cylinder and cross head.
4. Remove two bolts (10) from the hose mounting
bracket. Set the hoses aside. Remove two nuts(9)
from the chain anchors. Set the chains aside,
clear of the mast.
