Disassembly
&
Assembly
1

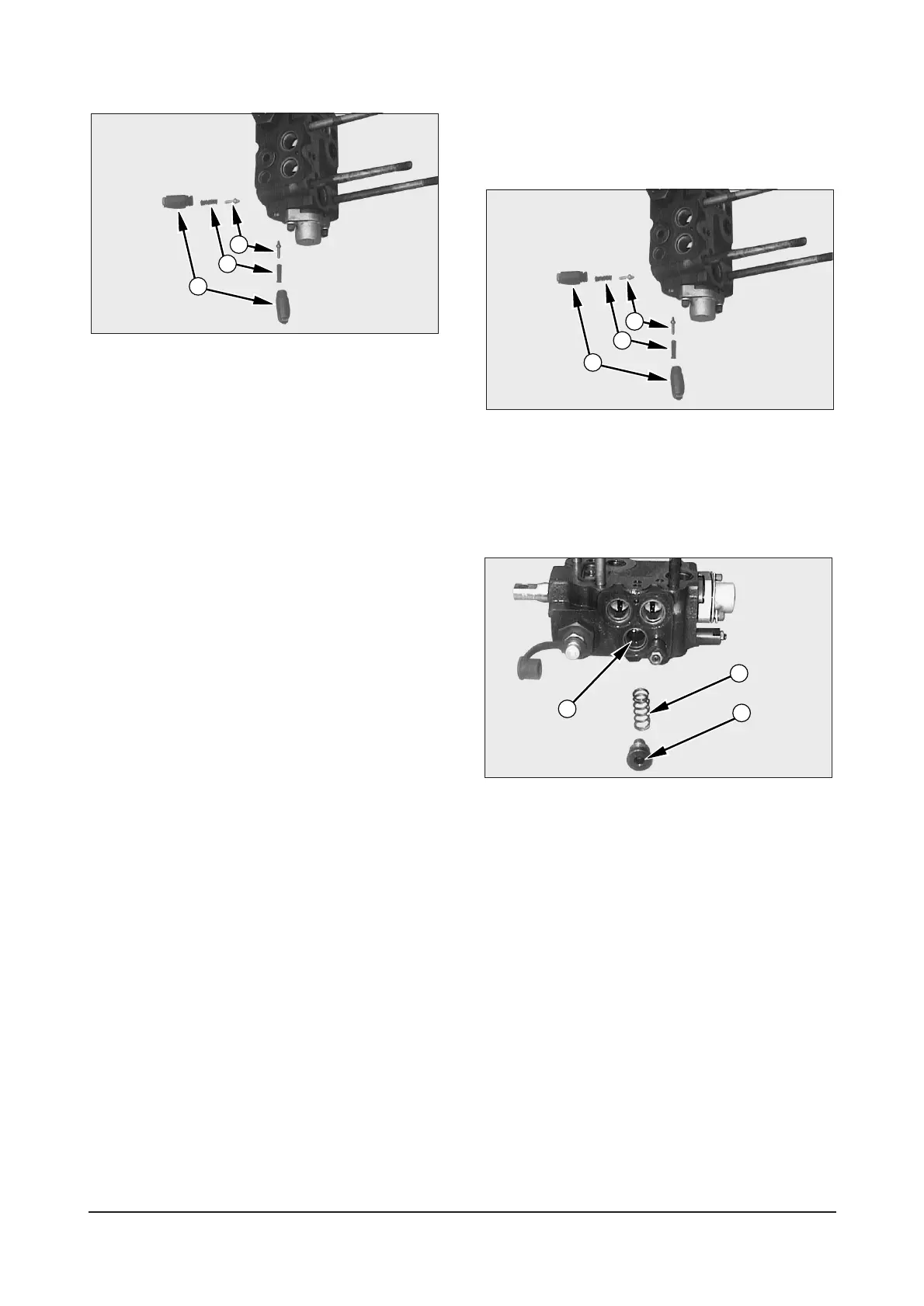

1.
Remove
relief plugs
(17), springs
(18) and
pop-
pets
(19).
Assemble
Hydraulic Control
V
alves
1.
Make
sure all
valve parts
are
clean and
free of
dirt.
2.
Install
poppets (1),
springs (2),
and
relief plugs
(3).
3.
Install
hydrostat (4).
4.
Install
spring (5)
and plug
(6).
44
IDCD224P
17
18
19
IDCD224P
3
2
1
IDCD223P
5
4
6
44
46
