Vehicle Systems Disassembly & Assembly

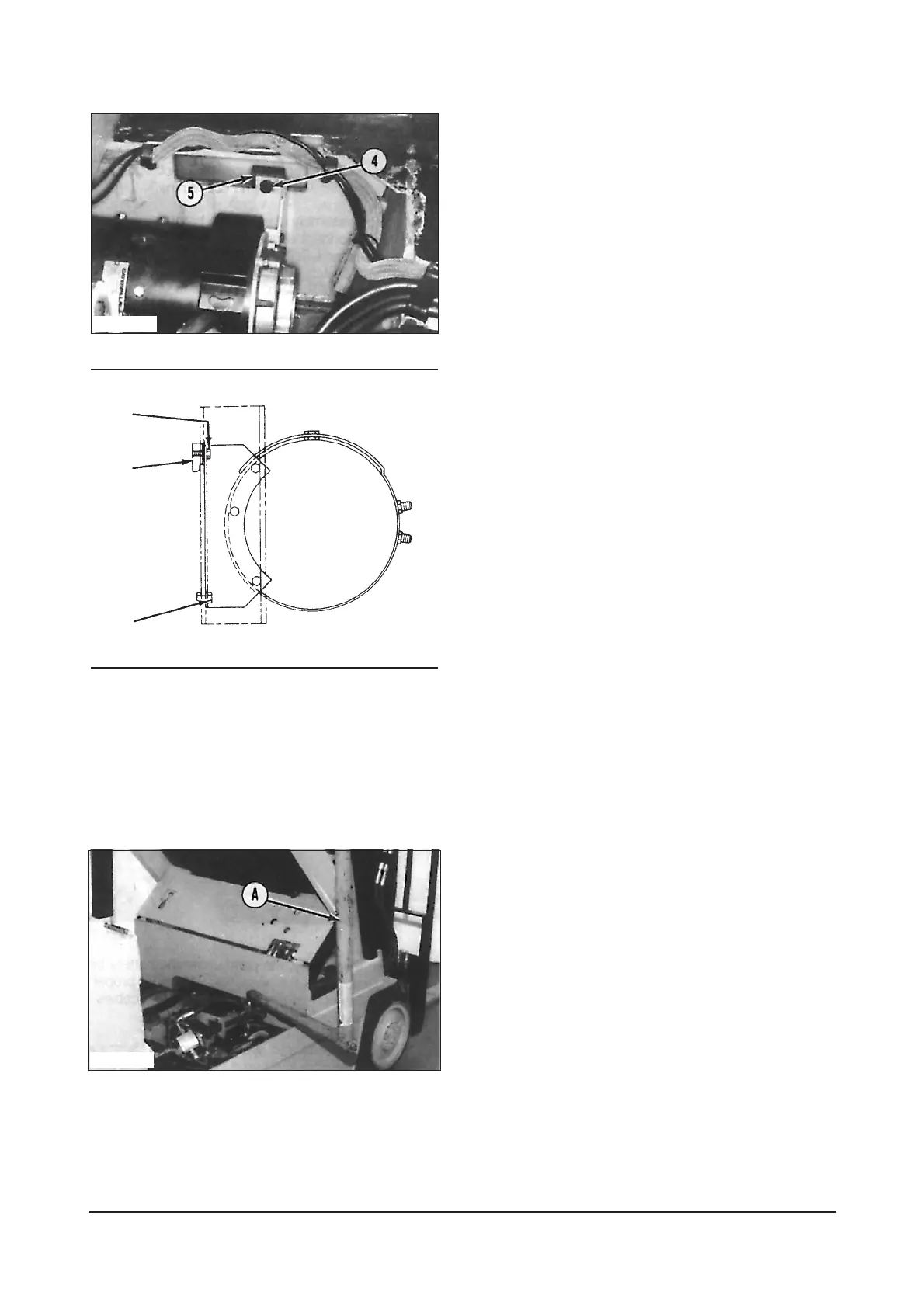

NOTE:
If upper bolts (4) are removed, blocks (5) will
fall inside the channel.
3. Loosen, but do not remove, upper two mounting
bolts (4). Remove lower two mounting bolts (6), and
slide the pump motor and plates to the rear of the
truck.
4. The weight of the pump motor is 48 kg (105 lb).
Attach tooling (A) and a hoist to the pump motor,
and remove it from the lift truck. Remove the two
plates and blocks from the motor if necessary.
NOTE: The following steps are for installation of the
hydraulic pump motor.
5. Install the two plates and blocks on the pump motor
if they were removed. Put the pump motor in
position in the lift truck with tooling (A) and a hoist.
6. Slide the pump motor to the front of the lift truck.
Install two lower bolts (6). Tighten bolts (4) and (6).
7. Put hydraulic pump (3) in position on th pump
motor. Make sure the coupling is in alignment with
the pump motor armature. Install the two bolts that
hold the pump on the pump motor.
8. Connect two cables (2) and wires (1) to the pump
motor. Install the plate over the motors, the battery
and floor plates.
6
IDCD306S
IDCD307S
4
5
6
IDCD308S
