· Attach the plug washer, thread the plug in by hand to prevent cross-threading.
•Tighten a new spark plug 1/2 turn with the wrench to compress the washer if you reuse a plug, it
should only take 1/4-1/2 turn after the plug seats.
CAUTION: The spark plug must be securely tightened. An improperly tightened plug can become
very hot and possibly damage the engine. Never use a spark plug with an improper heat range.

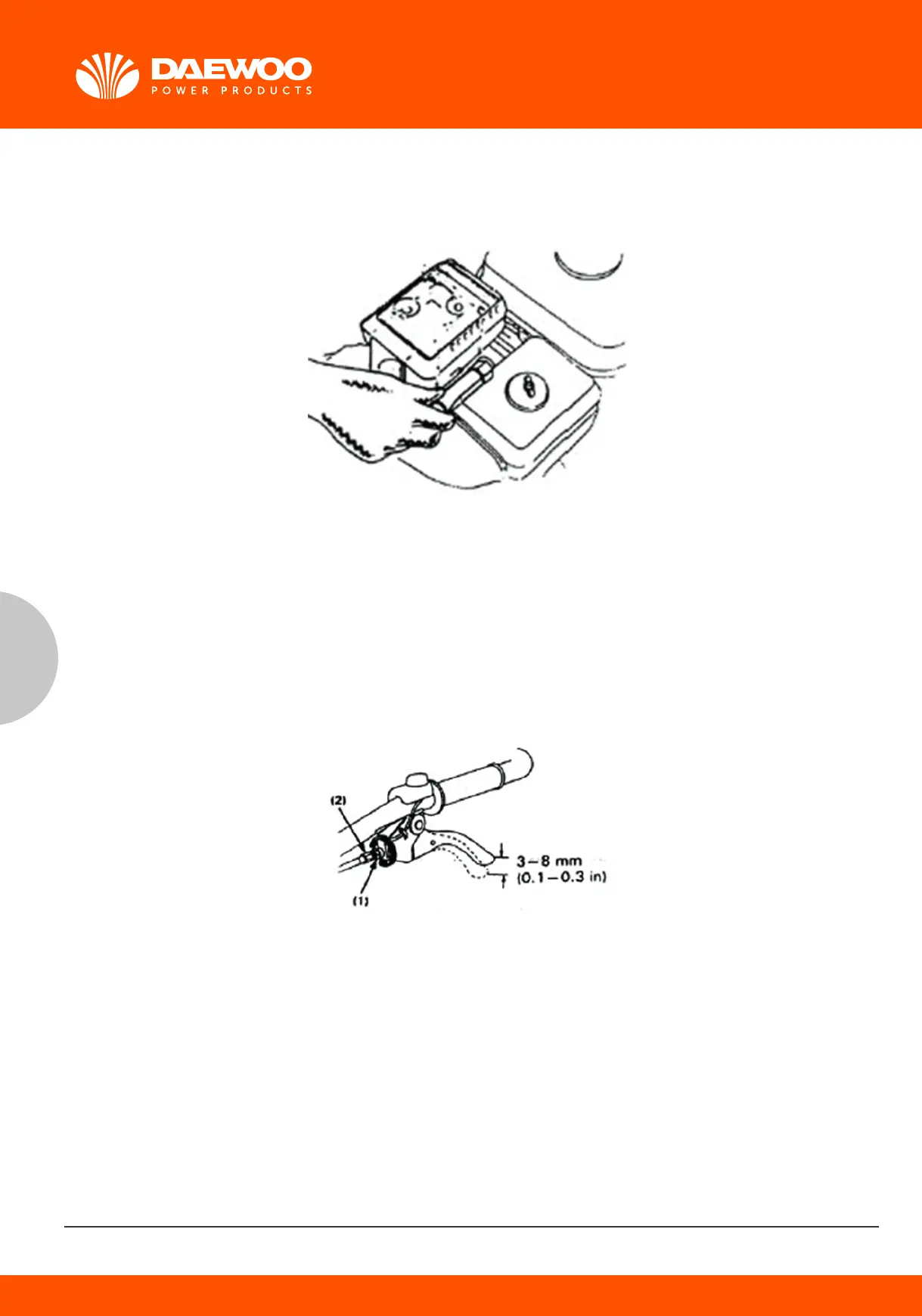

5. Clutch Cable Adjustment
Measure the free play at the lever tip.
Free play: 3-8 mm (0.1-0.3 in)
If the free play is incorrect, loosen the lock nut and turn the adjusting bolt in or out as required.
(1) LOCK NUT
(2) ADJUSTING BOLT
After adjustment, tighten the lock nut securely. Then start the engine and check for proper clutch
lever operation.
6. Throttle Cable Adjustment
Measure the free play at the lever tip.
Free play: 5-10 mm (0.2-0.4 in)
If the free play is incorrect, loosen the lock nut and turn the adjusting nut in or out as required.
(1) THROTTLE LEVER
(2) ADJUSTING NUT
(3) LOCK NUT
