• Remove the spark plug cap. Clean any dirt from around the spark plug base, then remove the
spark plug.
• Install the spark plug in the plug cap.
• Turn the engine switch on.
• Grounding the side electrode to any engine ground, pull the recoil starter to see if sparks jump
across the gap.
• If there is not spark, replace the plug. If OK, try to start the engine according to the instructions.
• If the engine still does not start, take the tiller to an authorized dealer.
12. SPECIFICATIONS
Displacement: 212 cc
Max. Power: 7.5 hp
Fuel Tank Capacity: 4.5 L
Starting System: Recoil
Tilling Width: 750-1100 mm
Tilling Depth: 100-300 mm
Gear Shifting: -1,0,2,1
Transmission: Belt
Handlebar System: Up/Down&Left/Right
Tire: 4.0-8
Blades: 4 Pieces × 4 Group

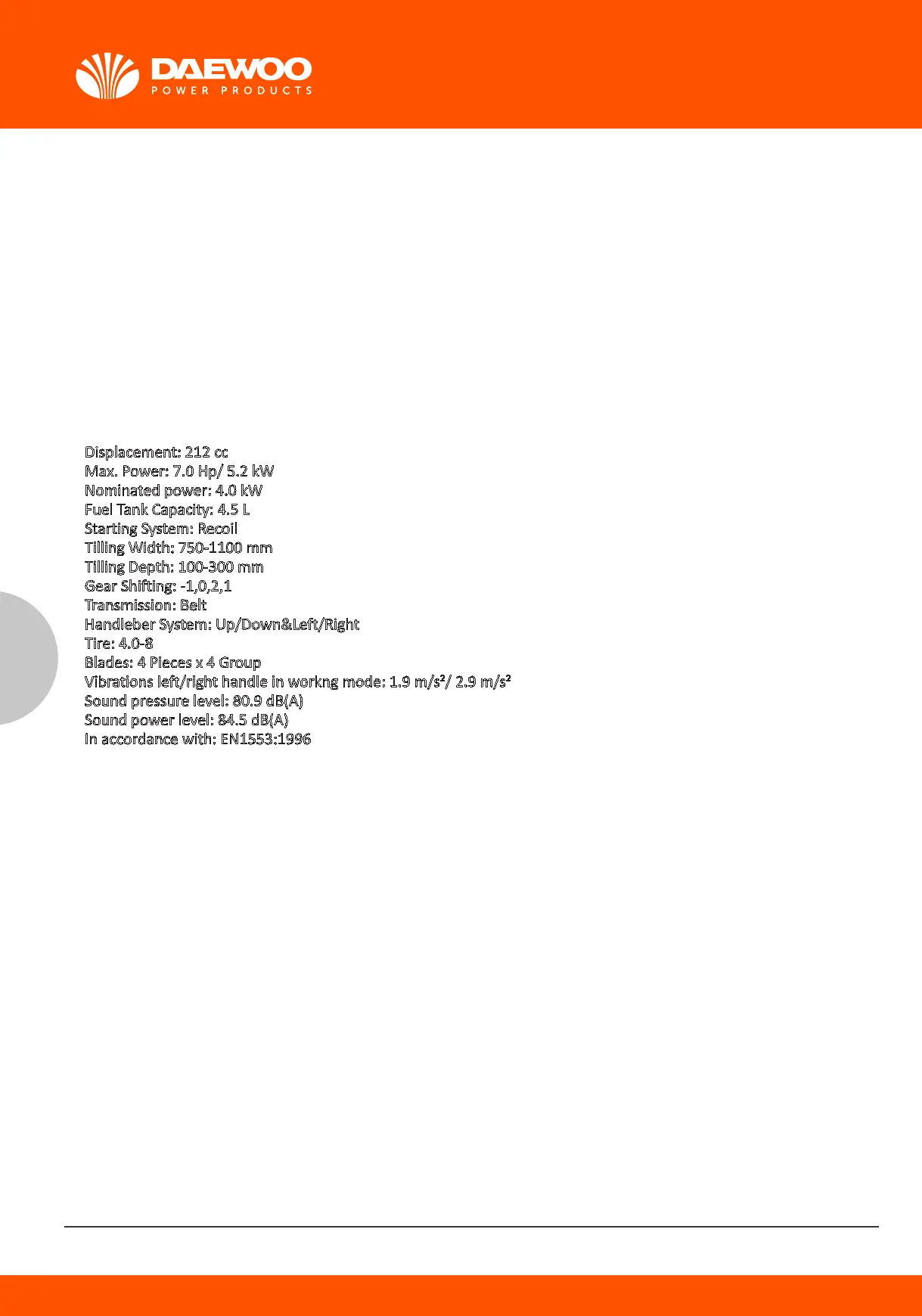

Displacement: 212 cc
Max. Power: 7.0 Hp/ 5.2 kW
Nominated power: 4.0 kW
Fuel Tank Capacity: 4.5 L
Starting System: Recoil
Tilling Width: 750-1100 mm
Tilling Depth: 100-300 mm
Gear Shifting: -1,0,2,1
Transmission: Belt
Handleber System: Up/Down&Left/Right
Tire: 4.0-8
Blades: 4 Pieces x 4 Group
Vibrations left/right handle in workng mode: 1.9 m/s
2
/ 2.9 m/s
2
Sound pressure level: 80.9 dB(A)
Sound power level: 84.5 dB(A)
In accordance with: EN1553:1996
