9

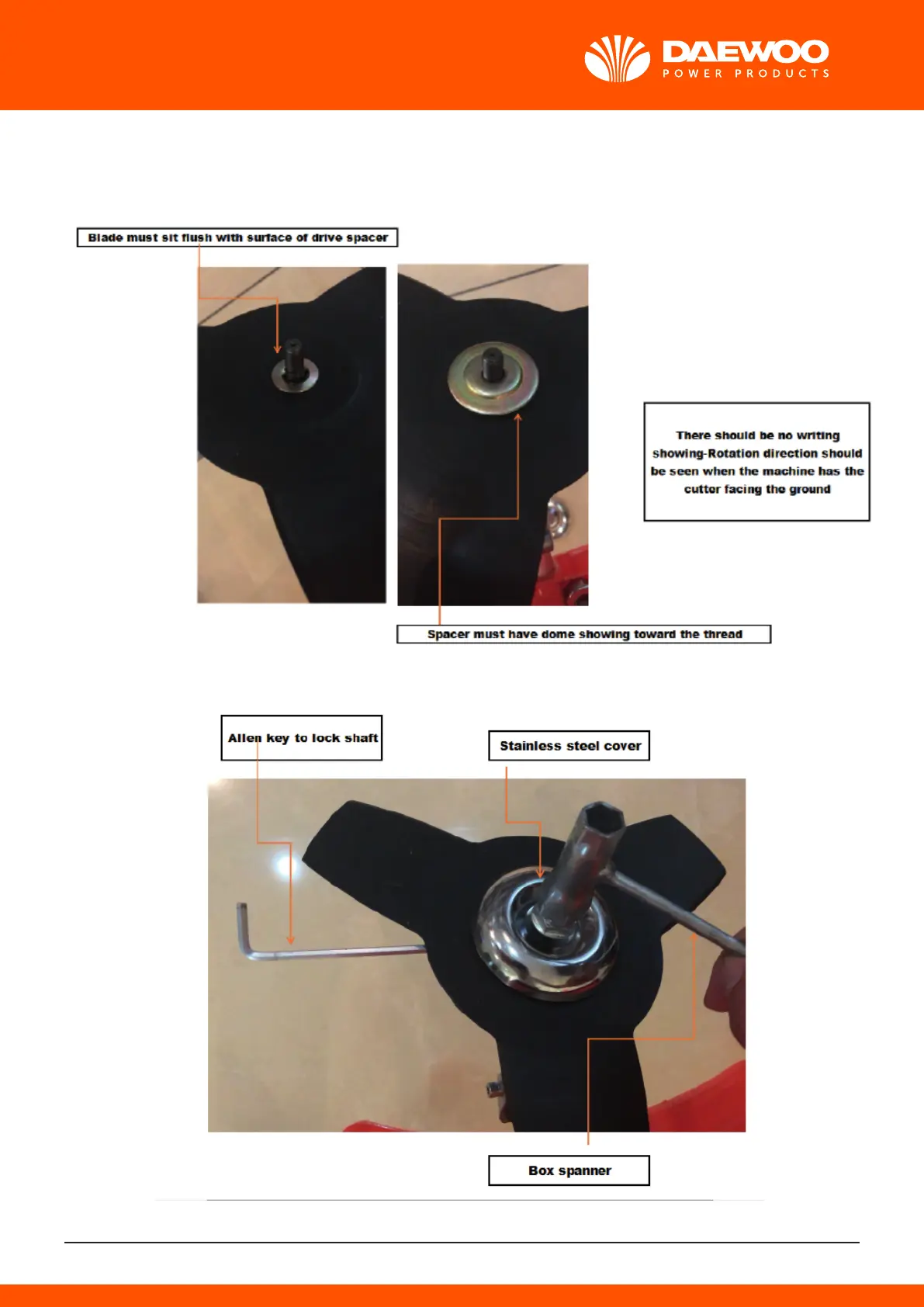

Place the over the threaded drive, then place spacer over threaded drive– N.B. Raised area to
be toward the thread. N.B. There should be now writing showing.
Once blade is in place, put the stainless steel cover over the spacer, put lock-nut onto
threaded shaft and loosely tighten (anti-clockwise direction). Use the box spanner to over
the lock-nut and tighten – use the Allen key to lock the shaft.
