Daewoo DBC520AV - Specifications; Parts Location

21
8. SPECIFICATION
DBC520AV
Engine model:1E44F-5
Engine type: Air cooled, two stroke,
single cylinder
Displacement: 52 cc
Power: 1.45 kW / 2.0 hp
Idling speed: 3000±200 rpm
Two-cycle oil/gasoline mixing ratio: 1:40
Carburetor: Diaphragm type
Shaft length: 1500 mm
Shaft diameter: 28 mm
Blade type: 3 T Metal blade
Thicknees: 1.6 mm
Cutting diame}ter: 255 mm
Nylon head: cutting diameter: 460 mm

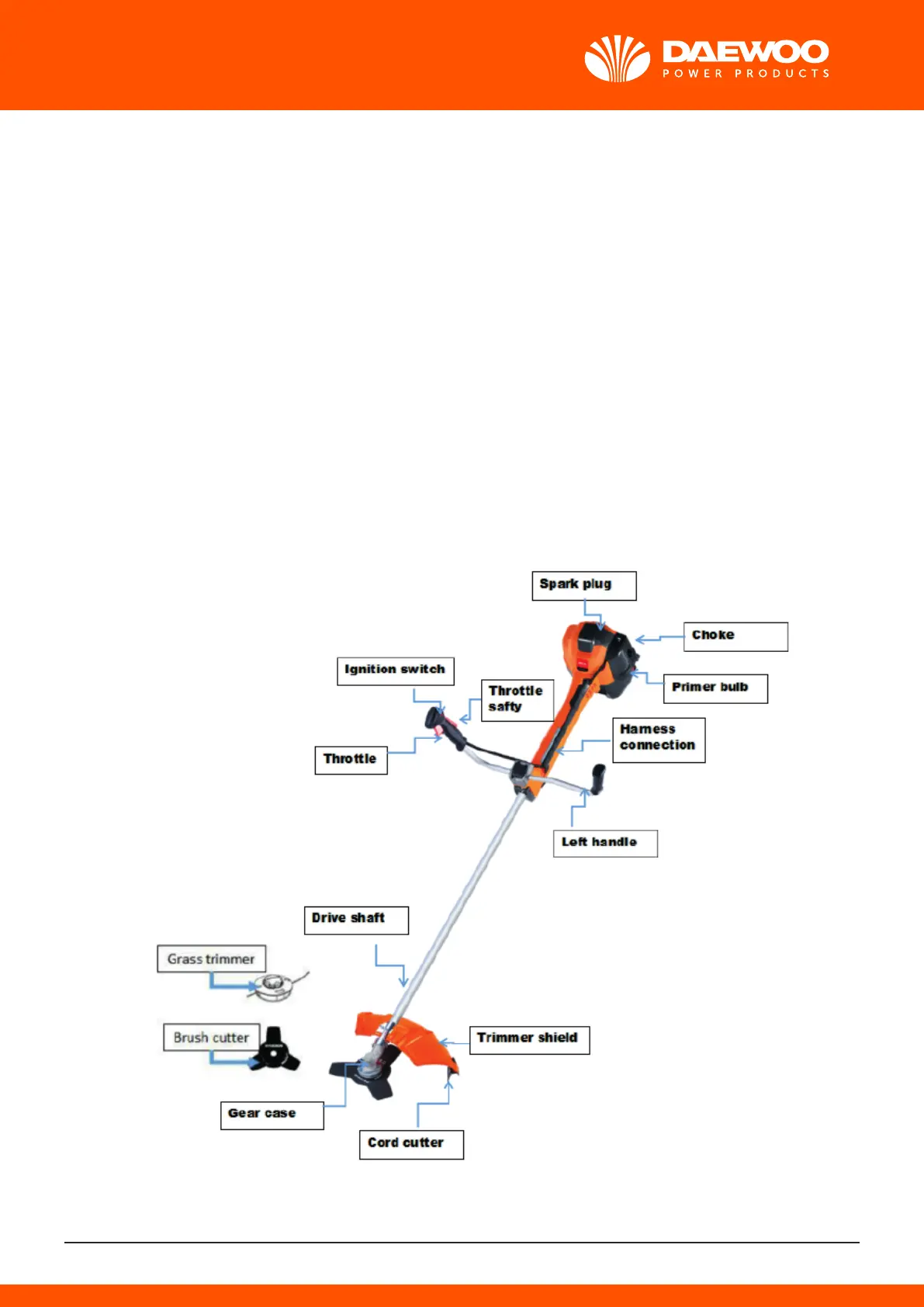

9. PARTS LOCATION
DBC430AV
Engine model: 1E40F-5
Engine type: Air cooled, two stroke,
single cylinder
Displacement: 43 cc
Power: 1.25 kW / 1.7 hp
Idling speed: 3000 ± 200 rpm
Two-cycle oil/gasoline mixing ratio: 1:40
Carburetor: Diaphragm type
Shaft length: 1500 mm
Shaft diameter:28 mm
Blade type: 3 T metal blade
Thicknees: 1.6 mm
Cutting diameter: 255 mm
Nylon head: cutting diameter: 460 mm
