Dishwasher
Edition: 2011-12 Model:DDW-G1213E
17

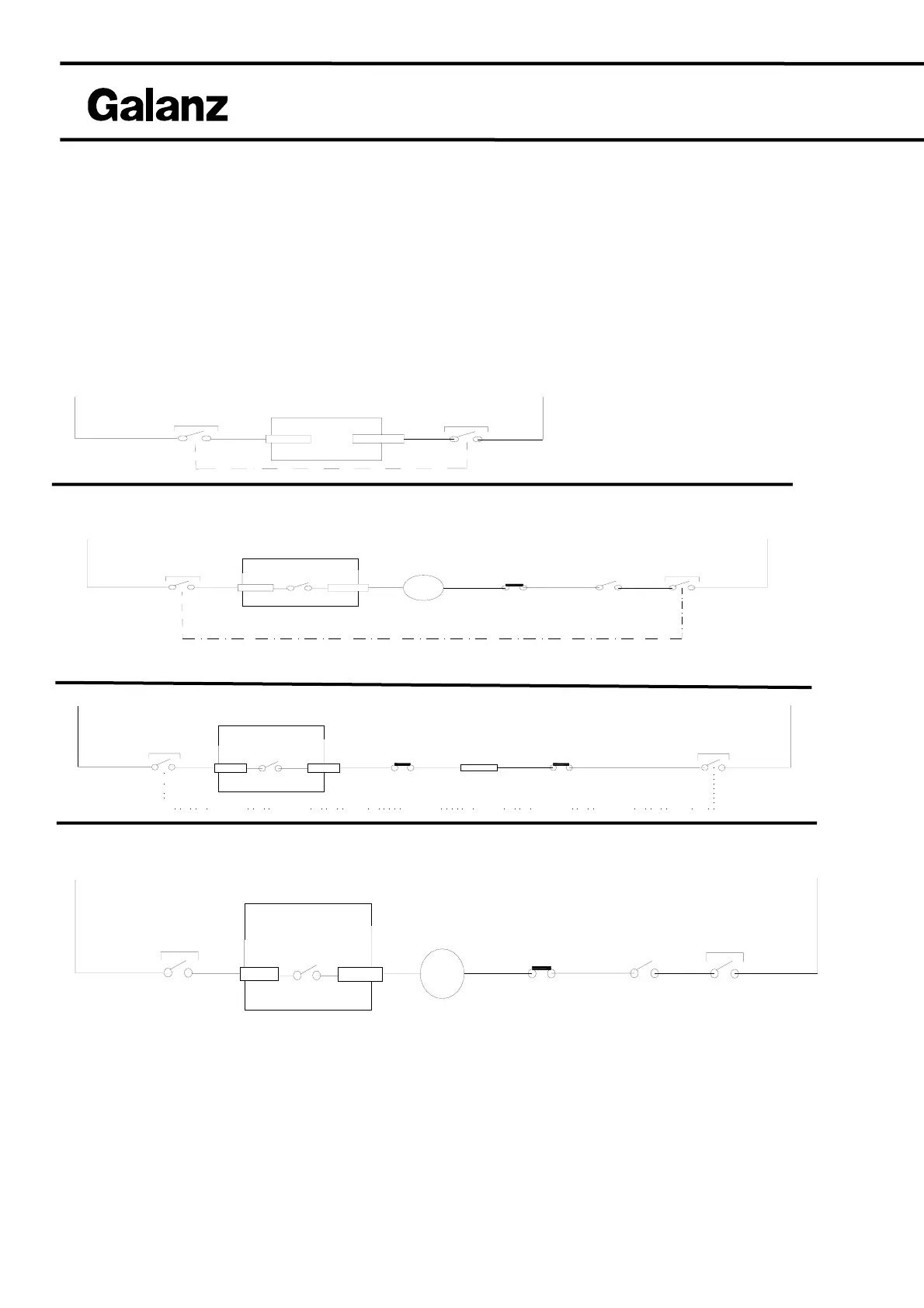

7.2 Dishwasher Strip Circuits
The following individual circuits are for use in diagnoses. Do not continue with
the diagnoses of the appliance if a fuse is blown, a circuit breaker is tripped, or if
there is less than a 230 volt power supply at the wall outlet.
■ Unplug dishwasher or disconnect power.
■ Perform resistance checks. To check resistance of a component, disconnect
harness leads first.
Power Up
L
N
L
power switch
power switch
N
PCBA
Washing Motor
L
power switch
power switch
CN1-1
L
MOTOR
Motor relay
150
℃
thermostat
75-90W/230V/50Hz
main winding 240±5 ohm
auxiliary winding 116±5 ohm
N
door switch
PCBA
Heater Element
L
power switch
power switch
L
Heater relay
98℃
229℃
non-resetable
thermostat
Heating element
10-30 ohm
230V/1800W
self-reset
thermo-link
door switch
N
PCBA
Heater
Drain Pump
door switch
N
30W max
230V/50Hz
110-120 ohm
90
℃
thermostat
Drain
L
CN1-2
power switch
power switch
L
PCBA
Drain relay
To Next Page
