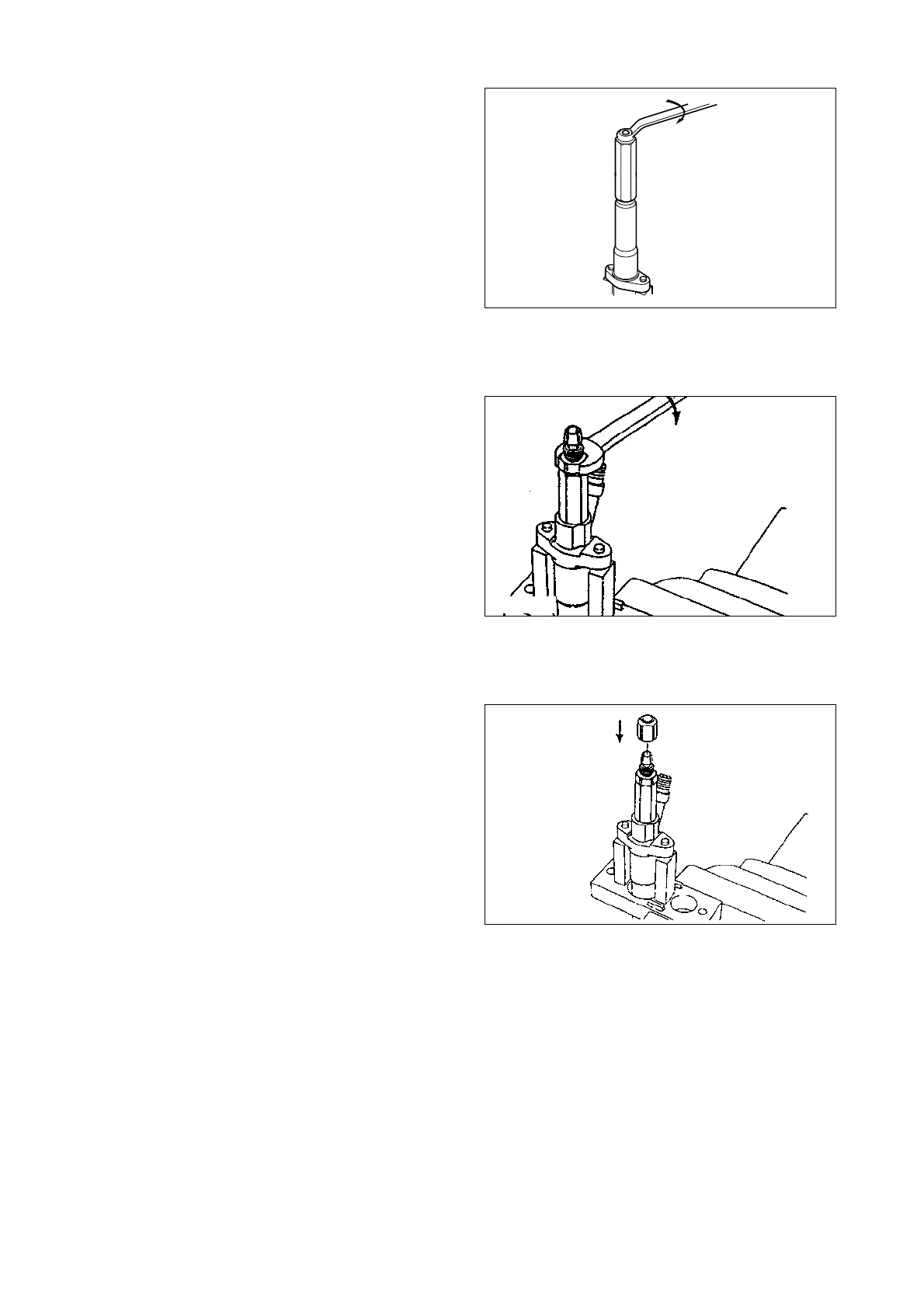

Inspecting the needle valve for full lift
a. Install gasket(30) and plug (31) onto
the adjusting retaining nut (7). (Figure
4-36)
- 114 -
EQM4042I
<Figure 4-36> Installing gasket and plug
b. Install the nozzle holder on the plate
with the cap nut facing upward.
c. Install the holder into the cap nut.
(Figure 4-37)
EQM4043I
<Figure 4-37> Installing nozzle holder
d. Install a nut(157892-1000: 17mm) on
the holder.
EQM4044I
<Figure 4-38> Installing the nut
