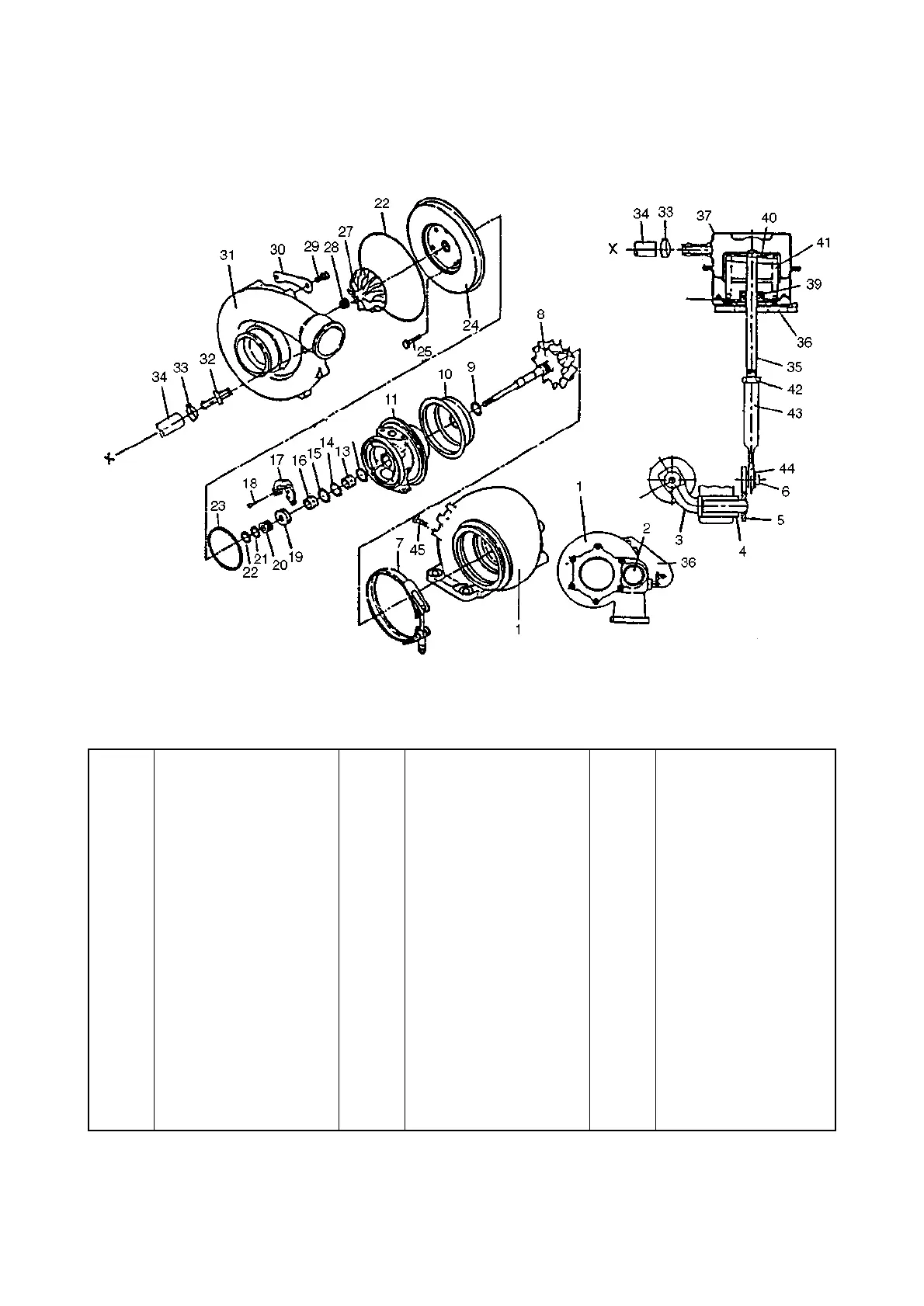

3) Construction
- 136 -
EQM4062S
1 Turbine housing 16 Bearing 31 Compressor housing
2 Plug 17 Thrust collar 32 Elbow
3 Arm and valve 18 Screw 33 Clamp
4 Bush 19 Thrust bearing 34 Hose
5 Crank 20 Thrust space 35 Piston
6 Retaining ring 21 Piston ring 36 Bracket, body
7 V-band 22 Seal ring 37 Cove
8 Wheel 23 Seal ring 38 Retainer
9 Piston ring 24 Rear plate 39 Gimble
10 Wheel shroud 25 Bolt 40 Diaphragm
11 Center housing 26 O-ring 41 Spring
12 Retaining ring 27 Compressor wheel 42 Nut
13 Bearing 28 Nut 43 End rod
14 Retaining ring 29 Bolt 44 Retaining ring
15 Retaining ring 30 Clamp 45 Bolt
