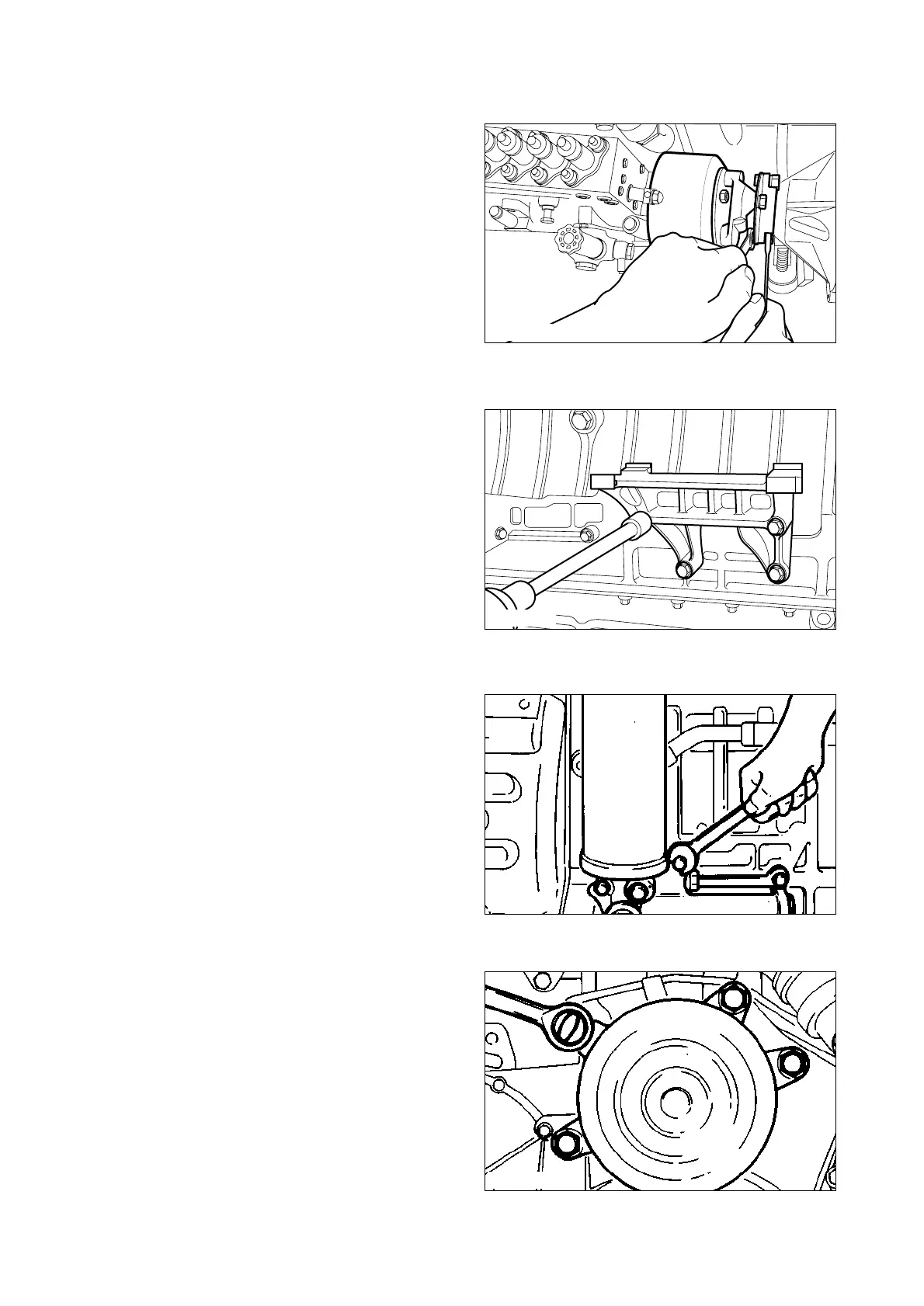

3.1.18. Fuel injection pump
1) Remove the oil supply pipe and return
pipe connected to the fuel injection
pump.
2) Unscrew the bolts connecting the cou-
pling and drive shaft, loosen the injec-
tion pump attaching bolts, then disas-
semble the injection pump.
Note : Place the No.1 cylinder in the
exact 'OT' position to disassem-
ble the injection pump.
3) Release the pump fixing bracket bolts
to disassemble the bracket from the
cylinder block.
Note : Do not interchange the shims as
they must be installed in their
original positions at reassembly.
3.1.19. Oil filter
1) Using a filter remover, remove the filter
element.
2) Remove the pipe connected to the oil
cooler.
3) Loosen the oil filter fixing bolts and dis-
assemble the oil filter head from the
cylinder block.
3.1.20. Idle pulley
1) Remove the bolts and disassemble the
idle pulley.
