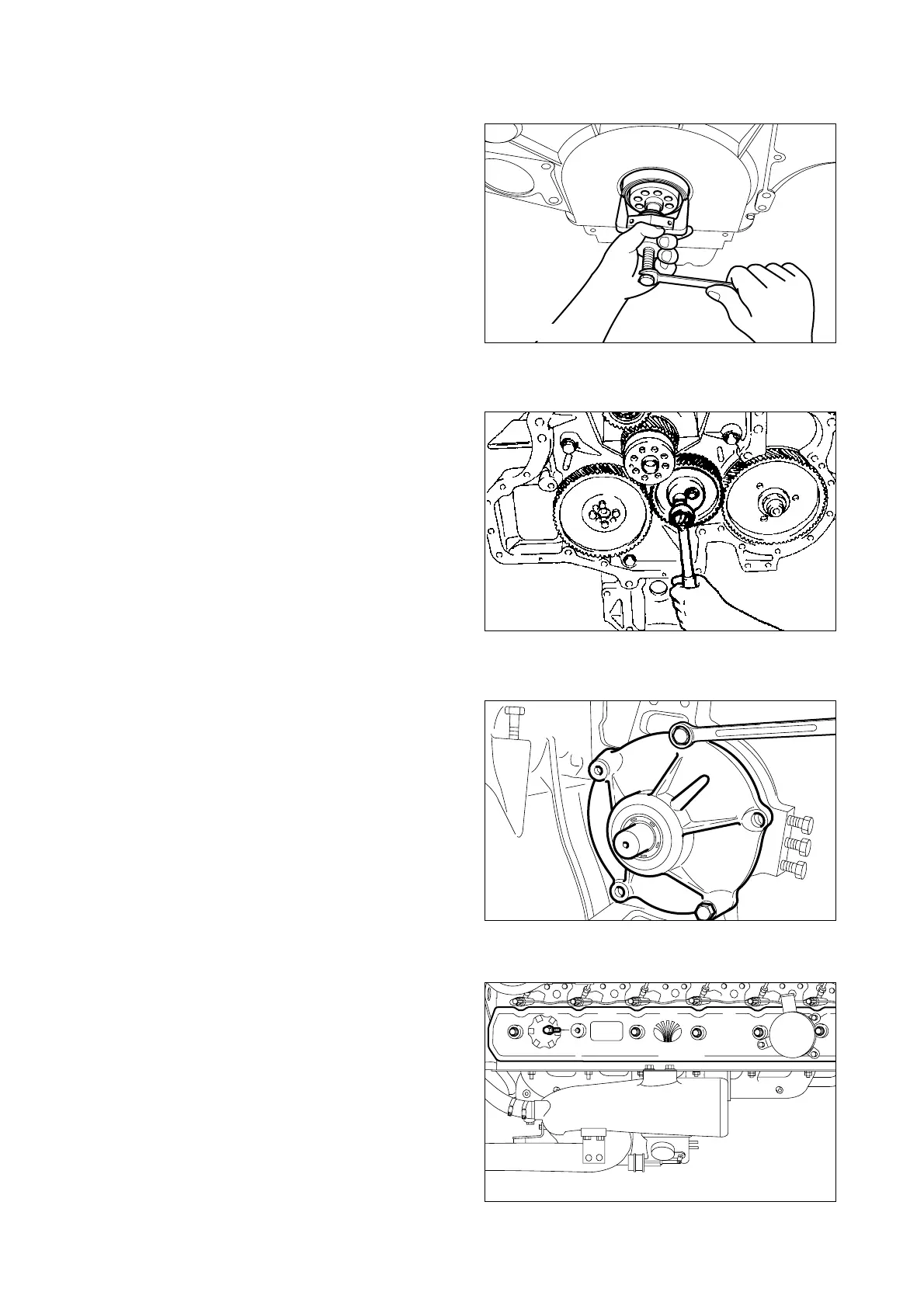

3.1.25. Timing gear case cover
1) Disassemble the oil seal using an oil
seal removing jig.
2) Remove the cover fixing bolts and dis-
assemble the cover from the timing
gear case.
- 43 -
EQM3024I
3.1.26. Idle gear
1) Unscrew the idle gear fixing bolts and
disassemble the thrust washer and idle
gear.
2) Disassemble the idle gear pin using a
rubber hammer to prevent damage to
them.
EQM3025S
3.1.27. Fuel injection pump drive assembly
1) Remove the dowel pin for the steering
pump.
2) Unscrew the injection pump drive shaft
bearing housing fixing bolts and remove
the injection pump drive assembly in
which the shaft, gear, bearings, and
housing are put together.
EQM3026I
3.1.28. Cylinder head cover
1) Unscrew the cover fixing bolts and dis-
assemble the cover.
2) Keep the bolts in an assembly state so
that the packings and washers may not
be lost, and keep the cover packing as
assembled with the cover.
EQM3027I
