Daewoo DE12 - 4.3. Fuel System

4.3. Fuel system
4.3.1. General descriptions
The fuel system consists of the fuel tank, injection pump, injection nozzle, fuel filter, and fuel
lines such as pipes and hoses necessary to connect those components.
- 88 -
3
8
9
4
7
12
10
11
5
1b
2
1
1a
1. Fuel filter ass’y
1a. Fuel water drain plug
1b. Air bleeding plug (for fuel filter)
2. Fuel pipe connector
3. Injection nozzle
4. Overflow tube
5. Fuel pipe (filter - injection pump)
6. Overflow valve
7. Delivery pipe
8. Fuel pipe (manual pump - filter)
9. Fuel tank
10. Fuel return pipe
11. Suction pipe
12. Feed pump
13. Injection pump
EQM4011I
4.3.2. Injection pump
The components related to the injection pump should be serviced at regular intervals as the
plunger and delivery valve may be worn after a given length of time for use and cause the dete-
rioration of the engine.
Make sure that servicing should be performed at the professional maintenance shop as autho-
rized by Bosch or Zexel Company.
For adjustment of fuel injection volume, refer to the 'Specifications of fuel injection pump'
described on the following pages.

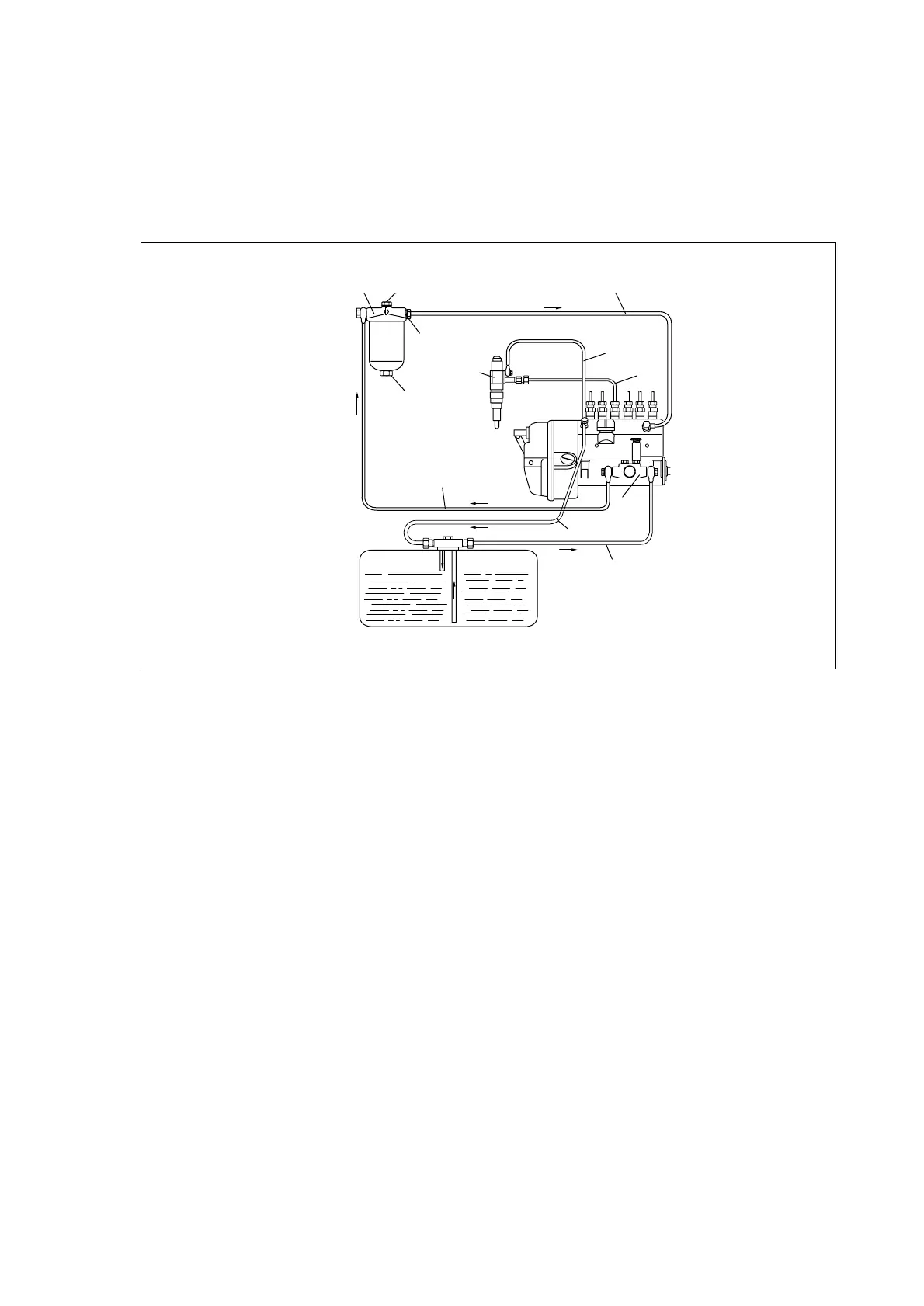

<Figure 4-11> Diagram of fuel system
