3) Construction
- 162 -
MAINTENANCE OF MAJOR COMPONENTS
6
20
21
23
12
13
24
23
19
22
24
8
7
9
23
25,26
2
5
3
17
18
1
10
4
11
15
16
14

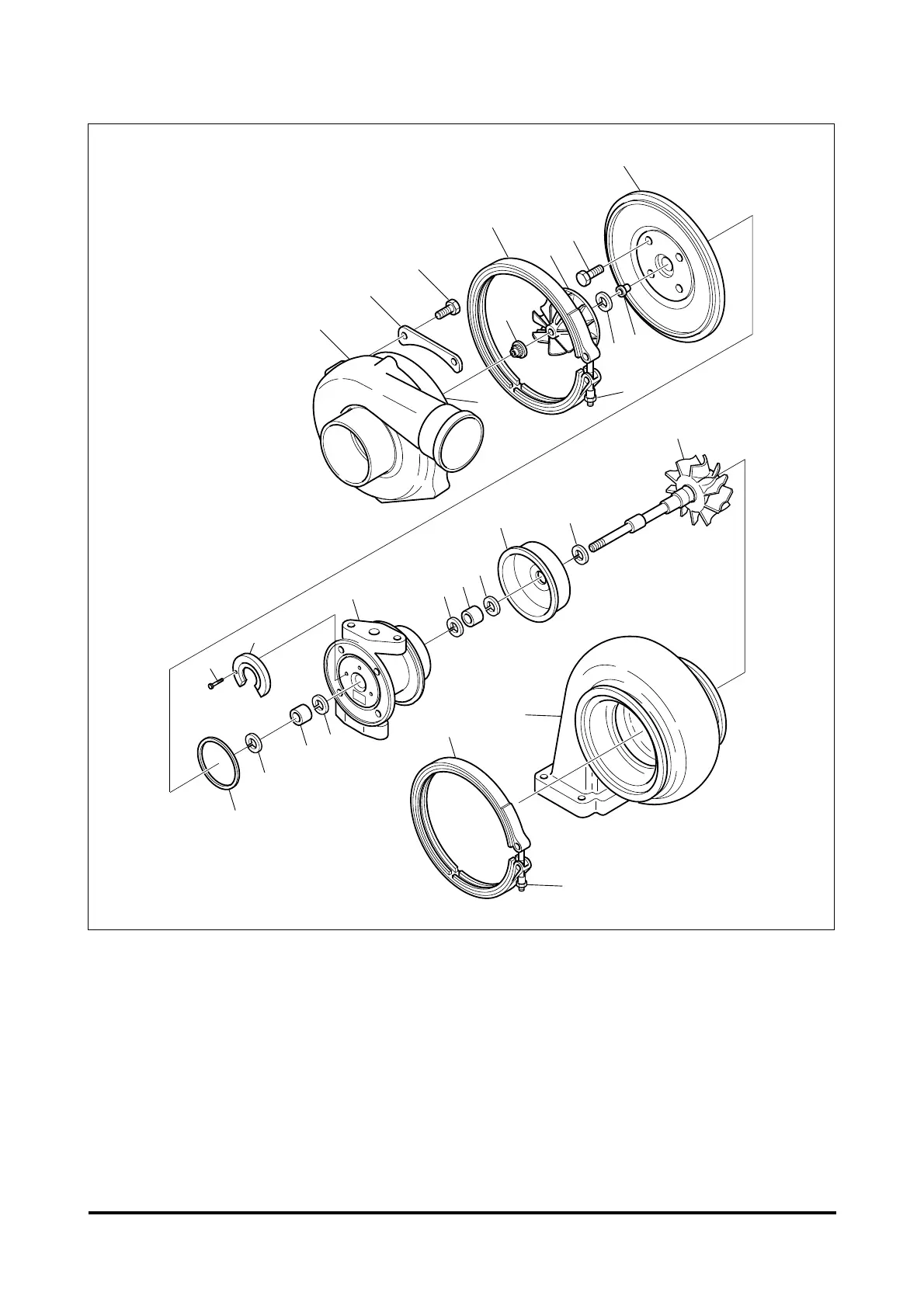

EQM8026I
1. Bolt
2. Clamp
3. Lock nut
4. V-band
5. O-ring
6. Compressor housing
7. Lock nut
8. V-band
9. Turbine housing
10. Lock nut
11. Compressor wheel
12. Piston ring
13. Wheel assembly
14. Wheel shroud
15. Bolt
16. Plate assembly
17. Piston ring
18. Thrust spacer
19. Seal ring
20. Screw
21. Thrust bearing
22. Thrust collar
23. Retainer ring
24. Journal bearing
25. Housing assembly
