Daewoo DE12TIS - Page 19

2) DE12TIS
- 15 -
SAFETY REGULATIONS & ENGINE SPECIFICATIONS
d
a
e
k
i
(VALVE CLEAR AT COLD)
¹è±â(EX):0.3mm
Èí±â(IN):0.3mm
¹ë ºê ˚£ ±Ø
9
0
1
.
9
0
1
.
9
0
1
.
9
0
1
.
9
0
1
.
EE6OM006
3 4 5 6 7 8 16 18
19
10 11 13 12 14 20 21 22 23 1 2
15
17
924
25

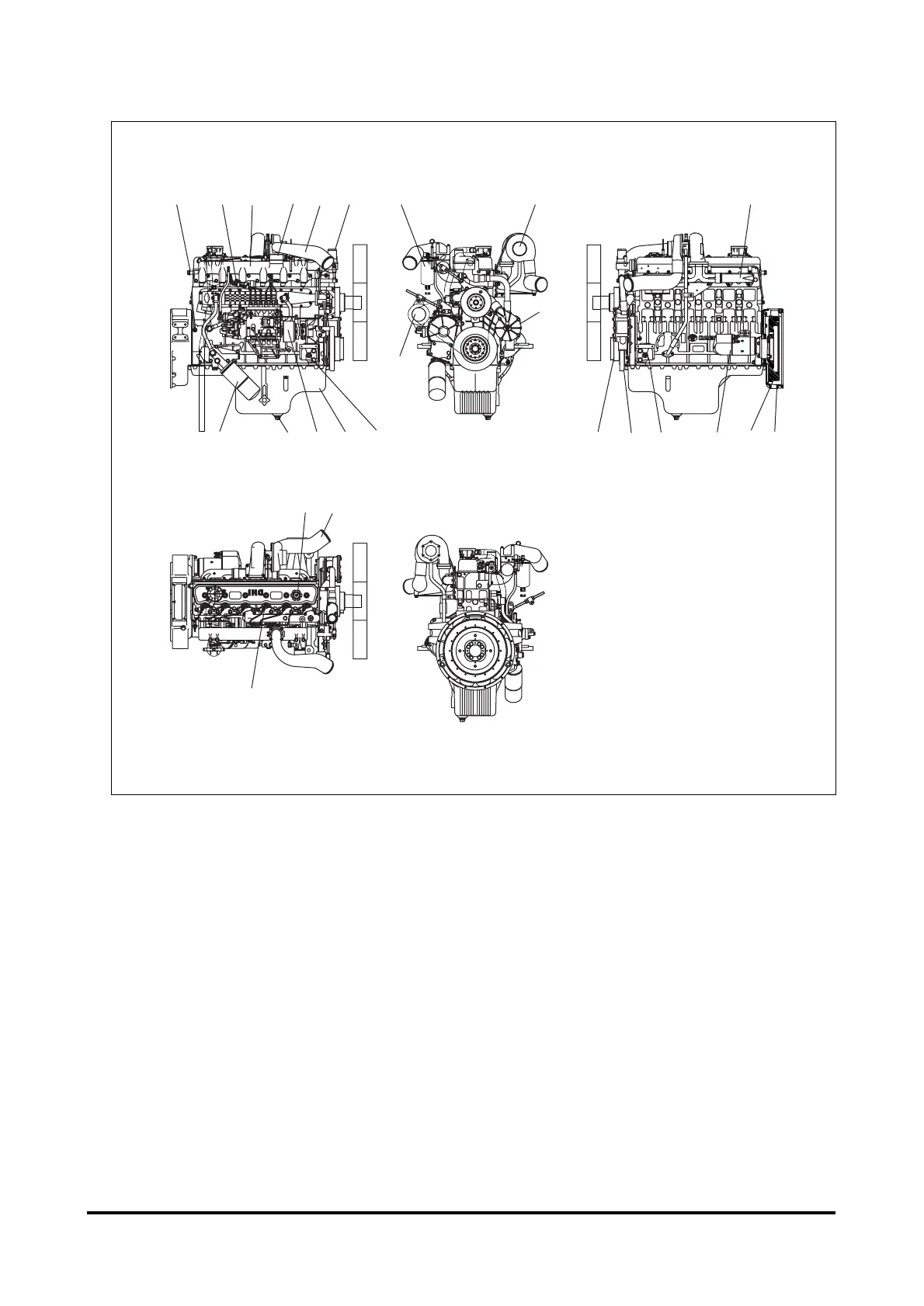

1. Fly wheel
2. Flywheel housing
3. Lifting hook
4. Oil cooler
5. Intake manifold
6. Air heater
7. Air pipe
(Intercooler to intake manifold)
8. Water outlet
9. Oil filler cap
10. Oil filter
11. Oil drain plug
12. Oil pan
13. Fuel injection pump
14. Mounting bracket
15. Alternator
16. Fuel filter
17. Cooling water pump
18. Turbocharger
19. Exhaust manifold
20. Crank shaft pulley
21. Vibration damper
22. Mounting bracket
23. Starting motor
24. Air pipe
(Turbocharger to intercooler)
25. Fuel injection nozzle
