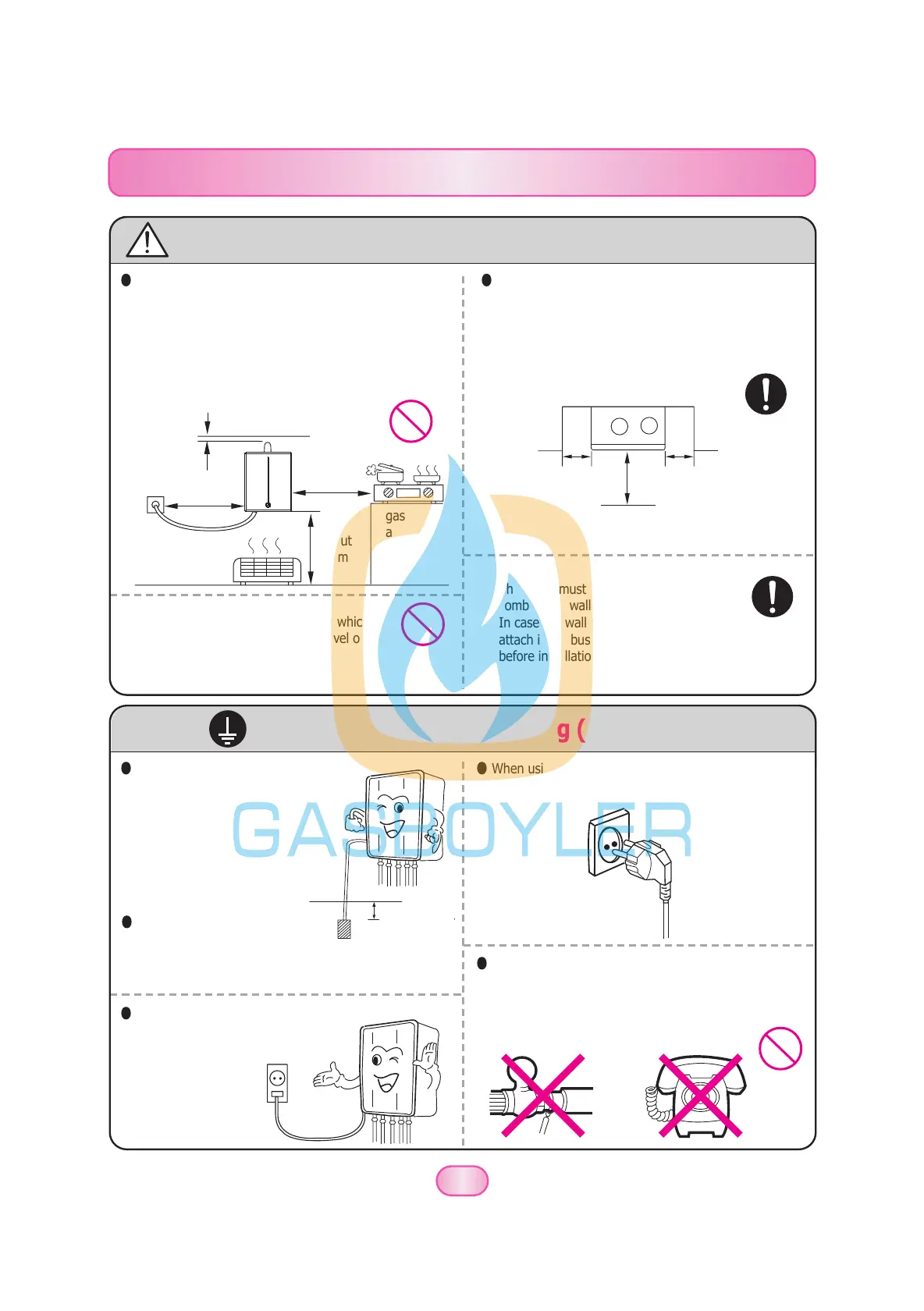

Installation instructions
Warning
Boiler location
Minimum clearance to combution
materials.
There must be at least 1m’s clearance between the
boiler and any other gas appliance. There must be
at least 1.2m clearance below the boiler from any
hot source. The electrical point must be at least 30
cm from the boiler.
more than
15cm
ceiling
safety distance
more than 1m
gas
appliance
about
1.2m
safety distance
more than 30cm
heat source
This boiler is a hermetic tank type which
allows for installation below the level of
the boiler’s exiting pipes.
Minimum Service Clearance.
A distance of at least 60cm in front of the boiler
must be provided for cleaning and servicing the boiler
more than
30cm
more than 60cm
more than
30cm
The boiler must not be fitted on a
combustible wall surface.
In case the wall surface is combustible,
attach incombustible materials to the wall
before installation.
Earthing
Electrical earthing (Grounding)
Earthing (Electrical grounding) is
necessary to prevent you from
getting electrocuted.
The boiler’s grounding conductor
must be earthed at least 30cm
deep. Or the grounding conductor
can be connected to a metallic
water pipe.
The grounding conductor
must be at least 1.15 mm
in diameter.
more than
30cm
If there is an earth terminal on
an electrical point, connect the
boiler’s grounding conductor to it.
When using an electrical point with an earth terminal,
separate earthing is unnecessary.
The boiler must not be earthed to a gas pipe,
telephone line, or a lightning conductor.
2
25
