Connecting Gas leak detector (optional)
Caution
Use DC6-12V for a gas leak detector. Otherwise, it may not work properly.

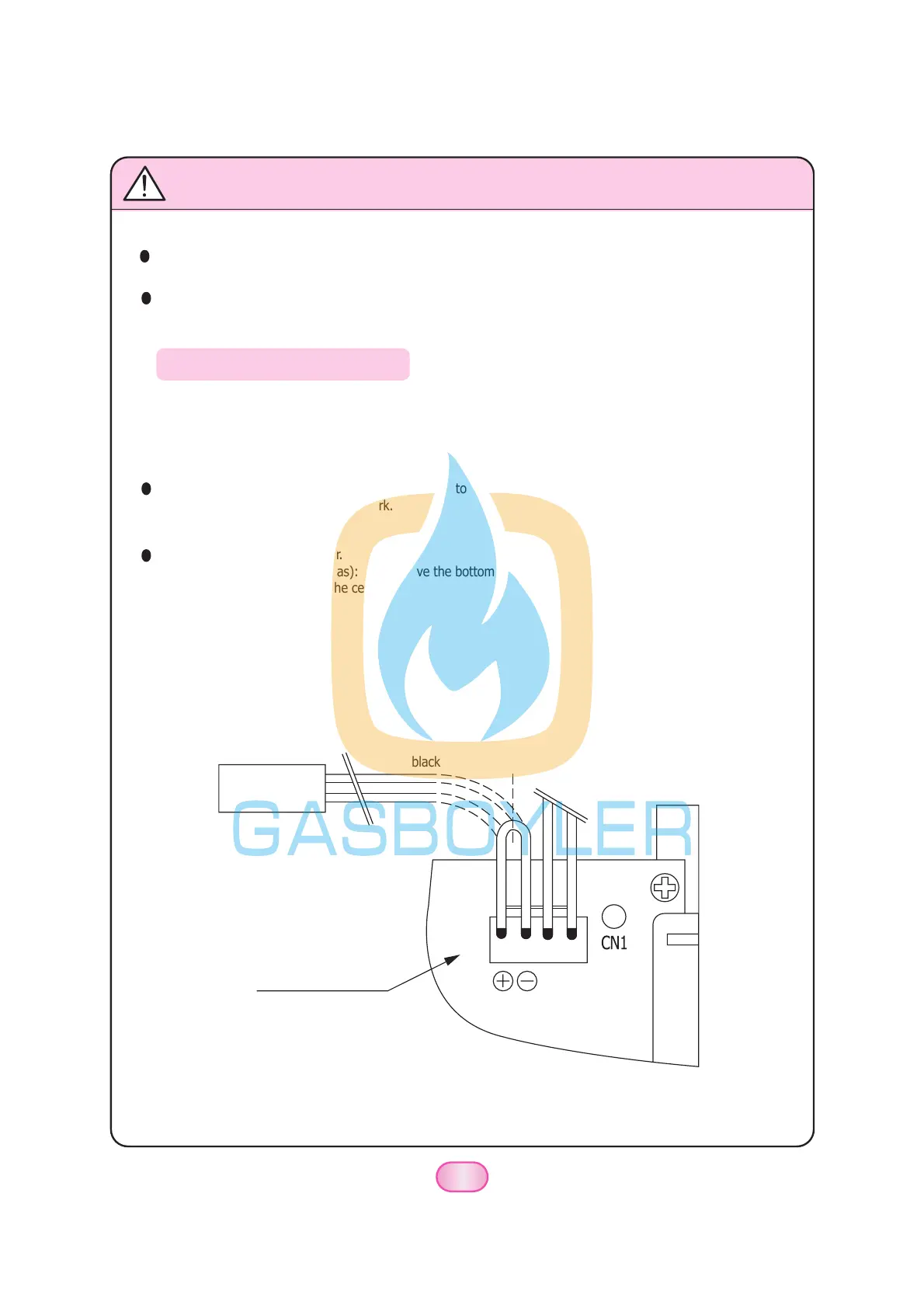

Cut the white line on the upper right corner of the circuit board and connect the cable of the gas leak detector.
(See the picture below)
How to connect
- Connect the white or red line of the gas leak detector to the white line (+) of the circuit board.
- Connect the black line of the gas leak detector to the white line (-) of the circuit board.
Make sure the white (or red) line must be connected to (+), and the black line to (-).
If not, the gas leak detector will not work.
Location of the gas leak detector.
When using LPG or 13A (town gas): 30cm above the bottom
When using LNG: 30cm below the ceiling
Gas leak
detector
black
white or red
Circuit board
Gas
Room
controller
blue
blue
white
