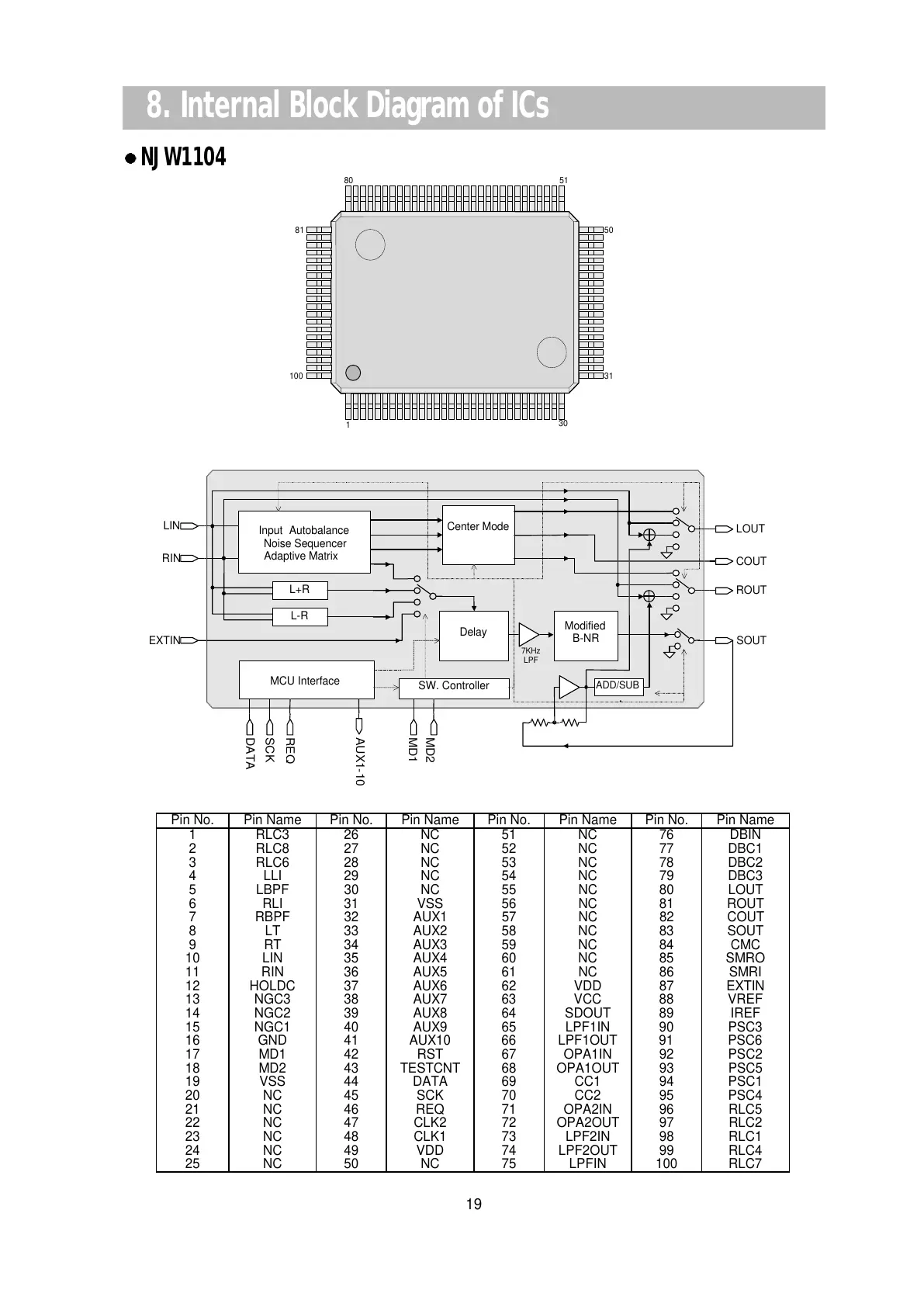

8. Internal Block Diagram of ICs
19
EXTIN
7KHz
LPF
SW. Controller
ADD/SUB
.
L+R
L-R
Center Mode
Modified
B-NR
MCU Interface
Delay
Input Autobalance
Noise Sequencer
Adaptive Matrix
RIN
LOUT
COUT
ROUT
SOUT
LIN
DATA
SCK
REQ
AUX1
-
10
MD1
MD2
80
51
5081
31100
1
30
Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name
1RLC326NC51NC76DBIN
2RLC827NC52NC77DBC1
3RLC628NC53NC78DBC2
4 LLI 29 NC 54 NC 79 DBC3
5 LBPF 30 NC 55 NC 80 LOUT
6 RLI 31 VSS 56 NC 81 ROUT
7 RBPF 32 AUX1 57 NC 82 COUT
8LT33AUX258NC83SOUT
9RT34AUX359NC84CMC
10 LIN 35 AUX4 60 NC 85 SMRO
11 RIN 36 AUX5 61 NC 86 SMRI
12 HOLDC 37 AUX6 62 VDD 87 EXTIN
13 NGC3 38 AUX7 63 VCC 88 VREF
14 NGC2 39 AUX8 64 SDOUT 89 IREF
15 NGC1 40 AUX9 65 LPF1IN 90 PSC3
16 GND 41 AUX10 66 LPF1OUT 91 PSC6
17 MD1 42 RST 67 OPA1IN 92 PSC2
18 MD2 43 TESTCNT 68 OPA1OUT 93 PSC5
19 VSS 44 DATA 69 CC1 94 PSC1
20 NC 45 SCK 70 CC2 95 PSC4
21 NC 46 REQ 71 OPA2IN 96 RLC5
22 NC 47 CLK2 72 OPA2OUT 97 RLC2
23 NC 48 CLK1 73 LPF2IN 98 RLC1
24 NC 49 VDD 74 LPF2OUT 99 RLC4
25 NC 50 NC 75 LPFIN 100 RLC7
NJW1104
