4.2 Connectors

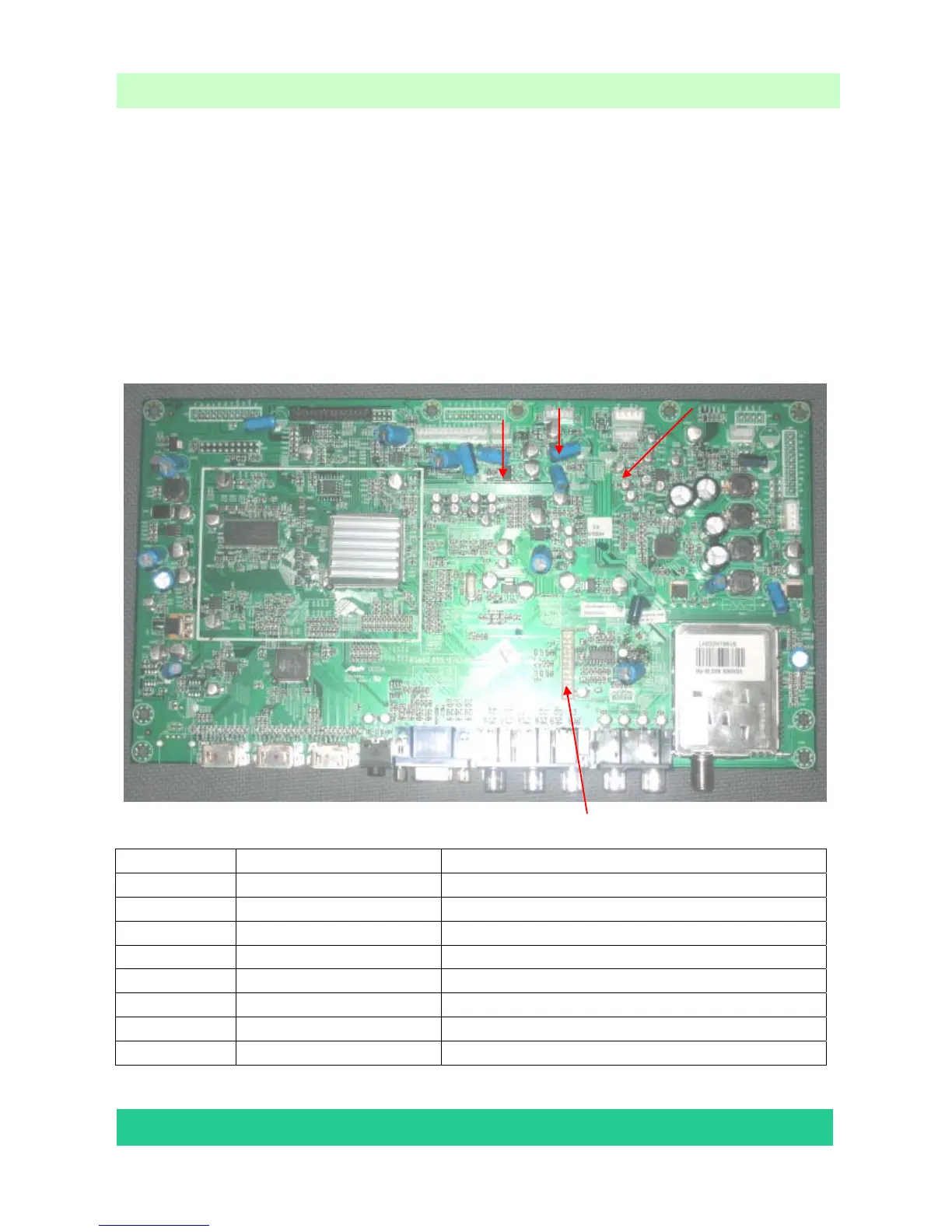

Main Board
Location No. Specification Description
J901 Jack/FF-HX19-10\ROH LVDS signal between MB and panel
J101 Jack/TJC10-14A\ROH Power from Power BD
J1411 Jack/TJC10-3A\ROH Buttons (connect key BD and main BD)
J1410 Jack/TJC10-5A\ROH IR, LED
J703 Jack/TJC10-4A\ROH Serial Port connector
J902 Jack/TJC3-4A\ROH Video/Audio signal
J1201 Jack/A2006WSO-2×13P\ROH Headphone Audio Signal
J801 Jack/TJC3-4A\ROH Audio signal to speakers
J901
J101
J1411
J1410
J902
J703
J801
J1201
