-11-
Description of Each Block

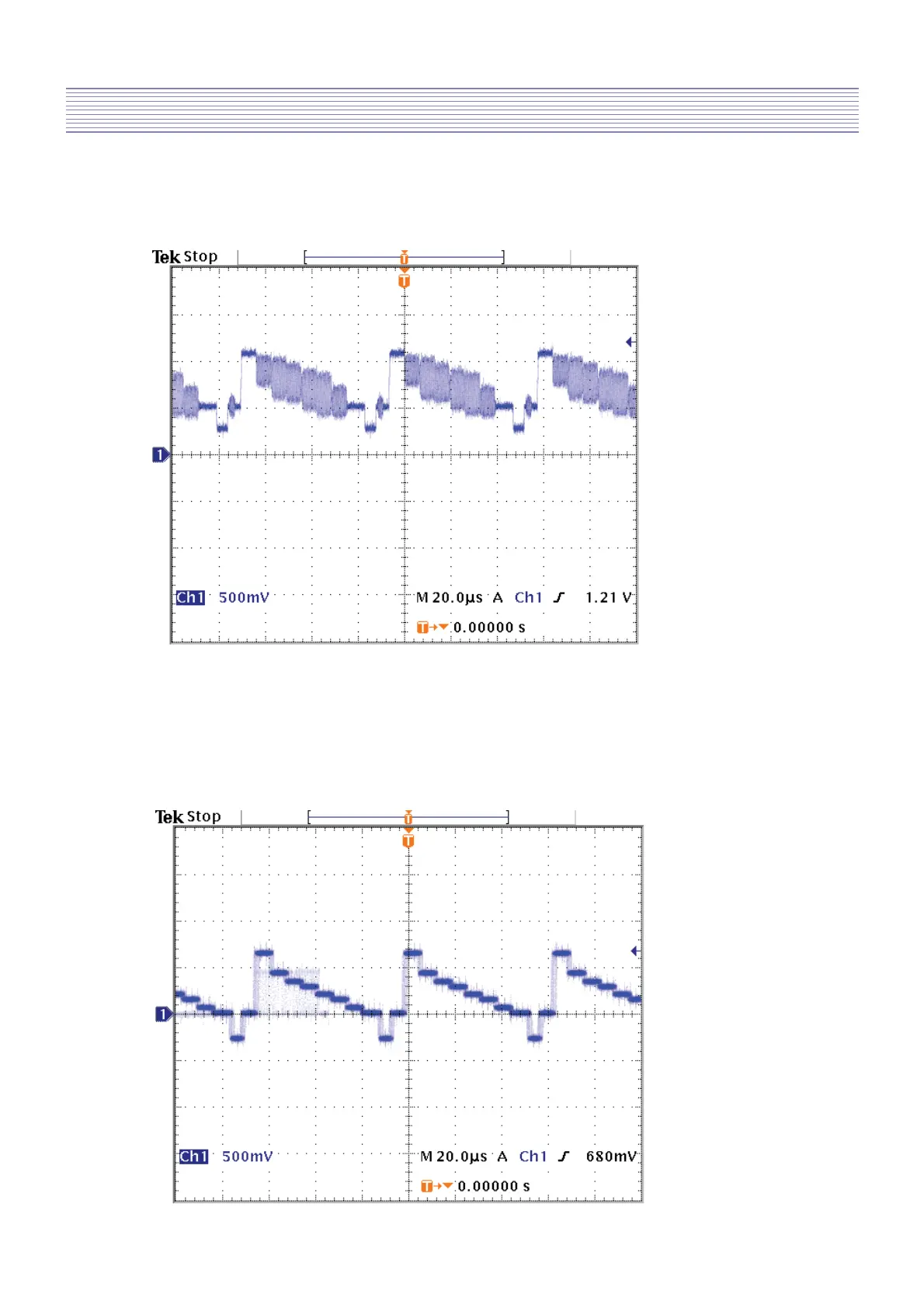

CVBS signal(input to U8)
Location:R203
Y signal(input to U8)
Location:R171
4-2-2.DTV/DVD signal
