13 Ver1.0

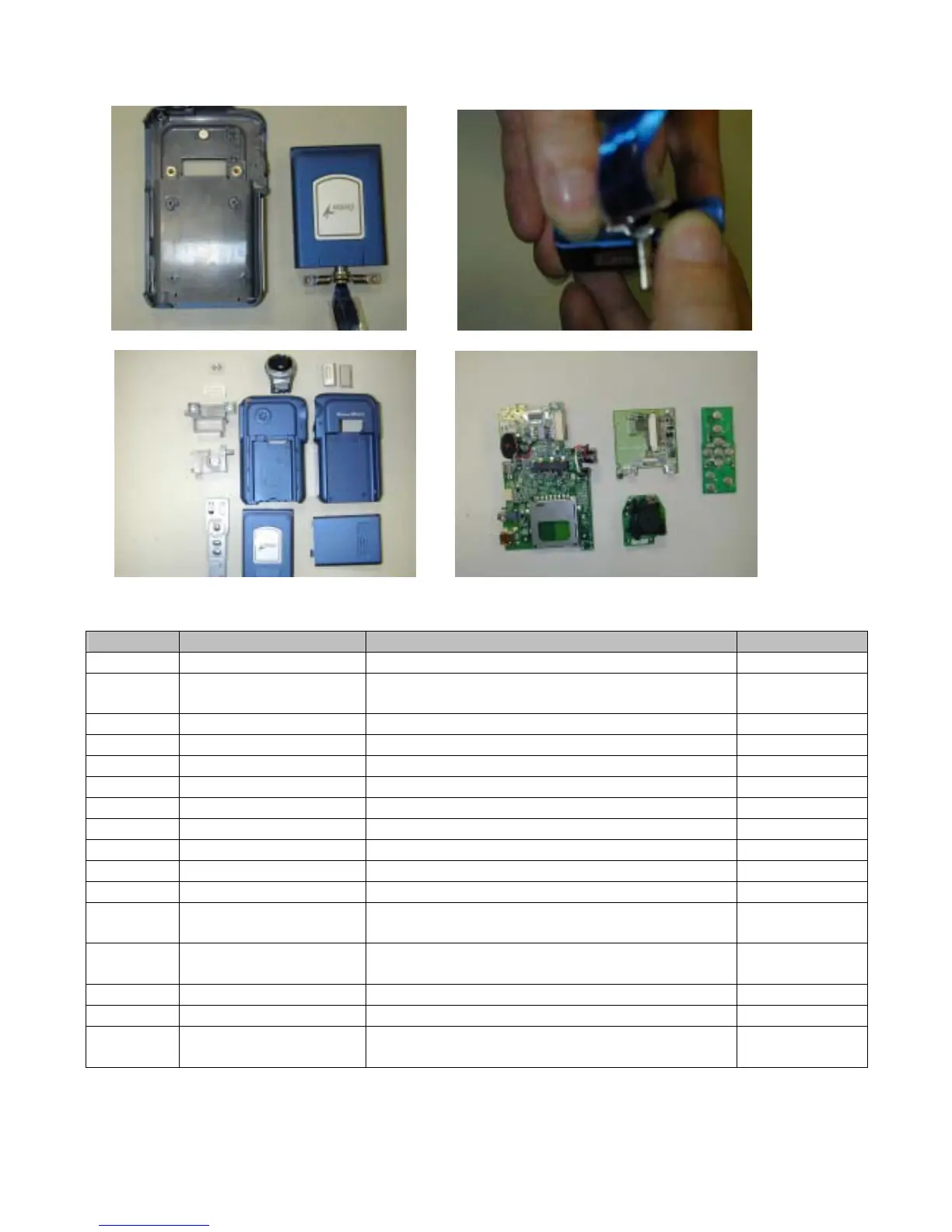

11.Take off the LCD panel 12. Push out the LCD panel cover and
take off the LCD board
12. Mechanical components 13. Electronic components
V. Parts List
Number Name Material Number Quantity
1 Main Board Assembly 725-04220L-A01
1
2 Sensor Board
Assembly
725-04220L-A02
1
3 Key Board Assembly 725-04220L-A03
1
4 LCD Board 700-04220L-A02
1
5 Left Cover 604-04220-A04 1
6 Right Cover 608-64220-A21 1
7 Battery Cover 608-64220-A22 1
8 Front Cover Assembly 618-04220-A04
1
9 LCD Panel 087-04220-A01
1
10 Capacitor Holder 608-14220-A04
1
11 Speaker Holder 608-14220-A02
1
12 LCD Panel Front
Cover Assembly
608-64220-A24 + 609-64220-A06
1
13 LCD Panel Rear Cover
Assembly
608-64220-A23 + 609-04220-A19
1
14 Hinge Cable 618-84220-B01
1
15 Key PAD Assembly 618-44220-A01
1
16 Hinge Upper and
Lower Covers
608-64220-A03 + 608-64220-A04
1
To Next Page
