59

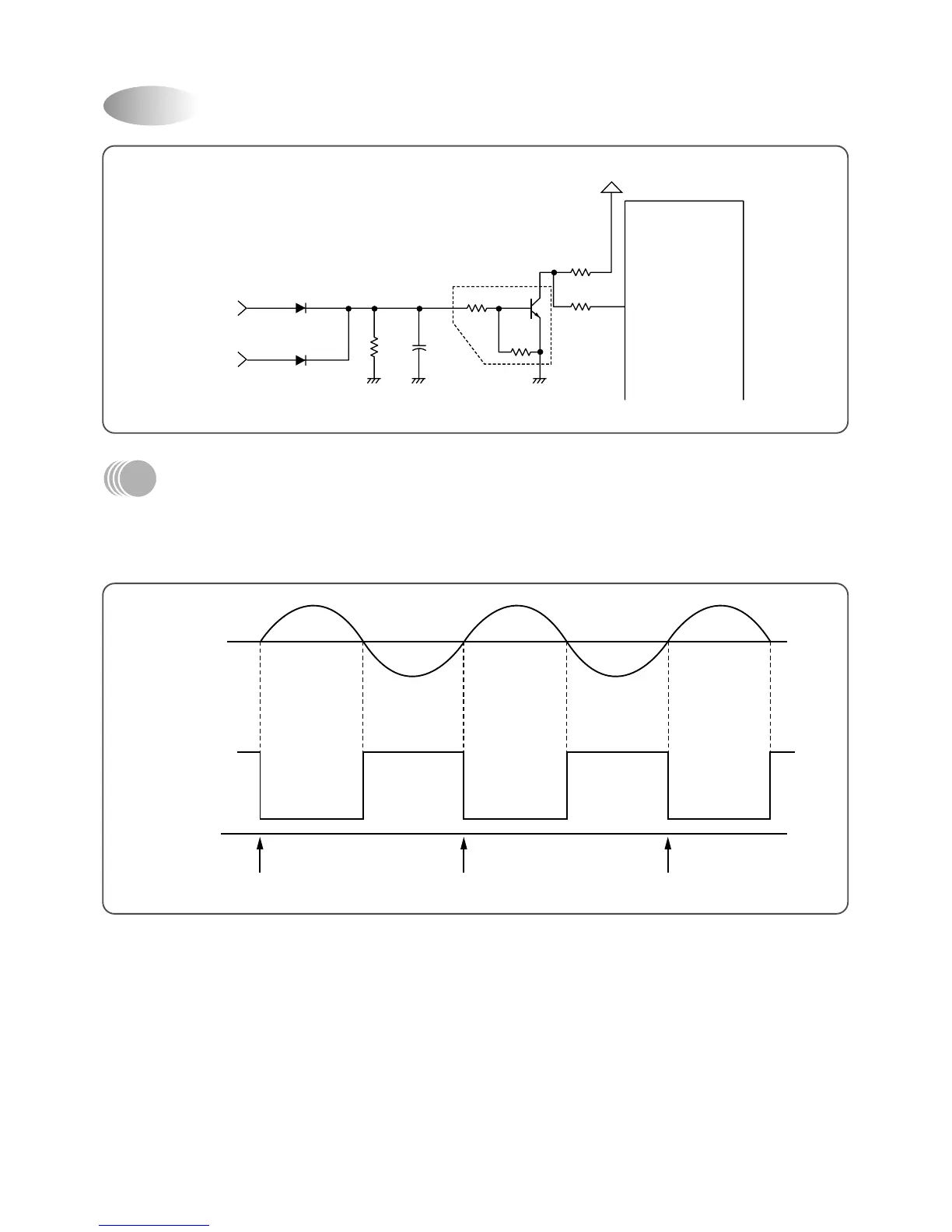

DESCRIPTION
It defect Zero Cross part of T
rans output voltage, Transistor TR1 is used to put in the Micom.
Detail Driving is as following Fig 1
1-1.
R19 is Resistance to limit current.
MICOM
TRANS
OUTPUT
D5
D6
R2
5.6K
1
2
CC4
103
TR1
KRC120M
12
1
2
3
21
R3
10K
R27
1K
VCC
31
DETECT POINT
H
The
Number
31 of
Micom
terminal
AC18V
L
Fig 11-1
Zer
o Crossing Detect(11)
59
61
Table of Contents
Table of Contents
2
Specifications
3
Outline and Dimensions
7
Outdoor Unit
12
Operation
15
Remote Controller
19
Sleep Mode
22
Emergency Operation
22
Auto Mode
23
Dehumidification Mode
24
Wiring Diagram
26
Control Block Diagram
29
Electric Circuit Diagram
32
Trouble Shooting
34
Neither Indoor Unit nor Outdoor Unit Runs
36
PCB Driving Description
40
Key Components of Electronic Circuit
64
Disassembly Instructions
67
Indoor Unit
67
Outdoor Unit
71
Exploded Diagram (Indoor Unit)
74
Exploded Diagram (Outdoor Unit)
82
Control Box Assembly
90
