71

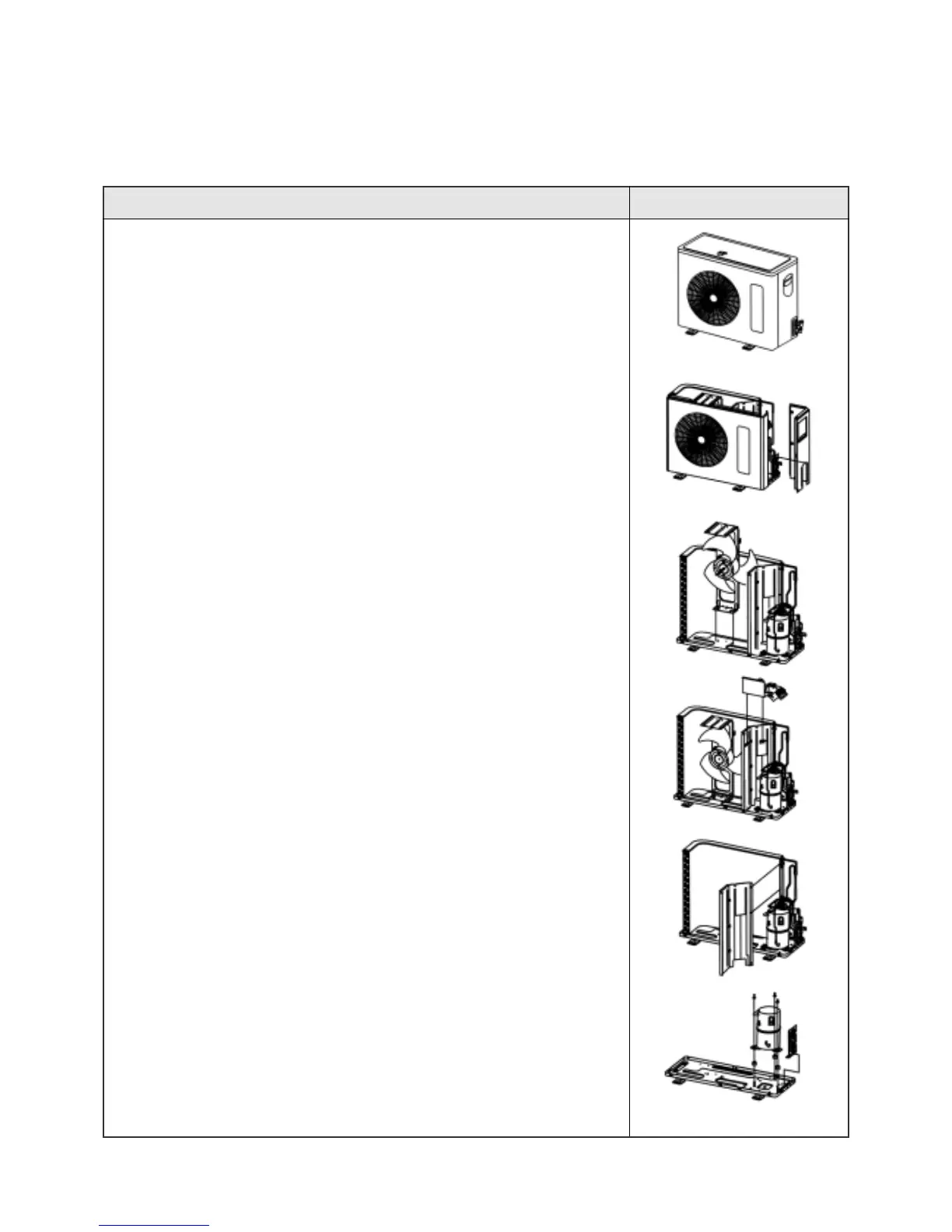

◆DSA-125L, 125P, DSA-185L, 185P
PROCEDURES PHOTOS
1.Stop the operation of the air conditioner and dis connect the wire from in
door unit to out door unit.
2. Disassemble the case. (Fig 1~2)
1 Remove the Top Panel.
2Remove the Side Cabinet.
3Remove the Front Cabinet.
3. Removing the Propeller Fan. (Fig 3)
1Loosen the screw fixed at the motor bracket.
2Remove the Plain Washer.
3Remove the Propeller Fan.
4. Remove the panel control. (Fig 4)
1Disconnect the wire at the control panel.
2Loosen the screw fixed at the panel control.
3Remove the parts on panel control.
5. Remove the partition panel. (Fig 5)
1Loosen four screws at the bracket motor.
2Disconnect the wire at the control panel.
6. Removing the Over load Protector. (Fig 6)
1Remove the cocondenser
2Loosen three volts at compressor.
3Remove the compressor.
Fig 1
Fig 2
Fig 3
Fig 5
Fig 4
Fig 6
