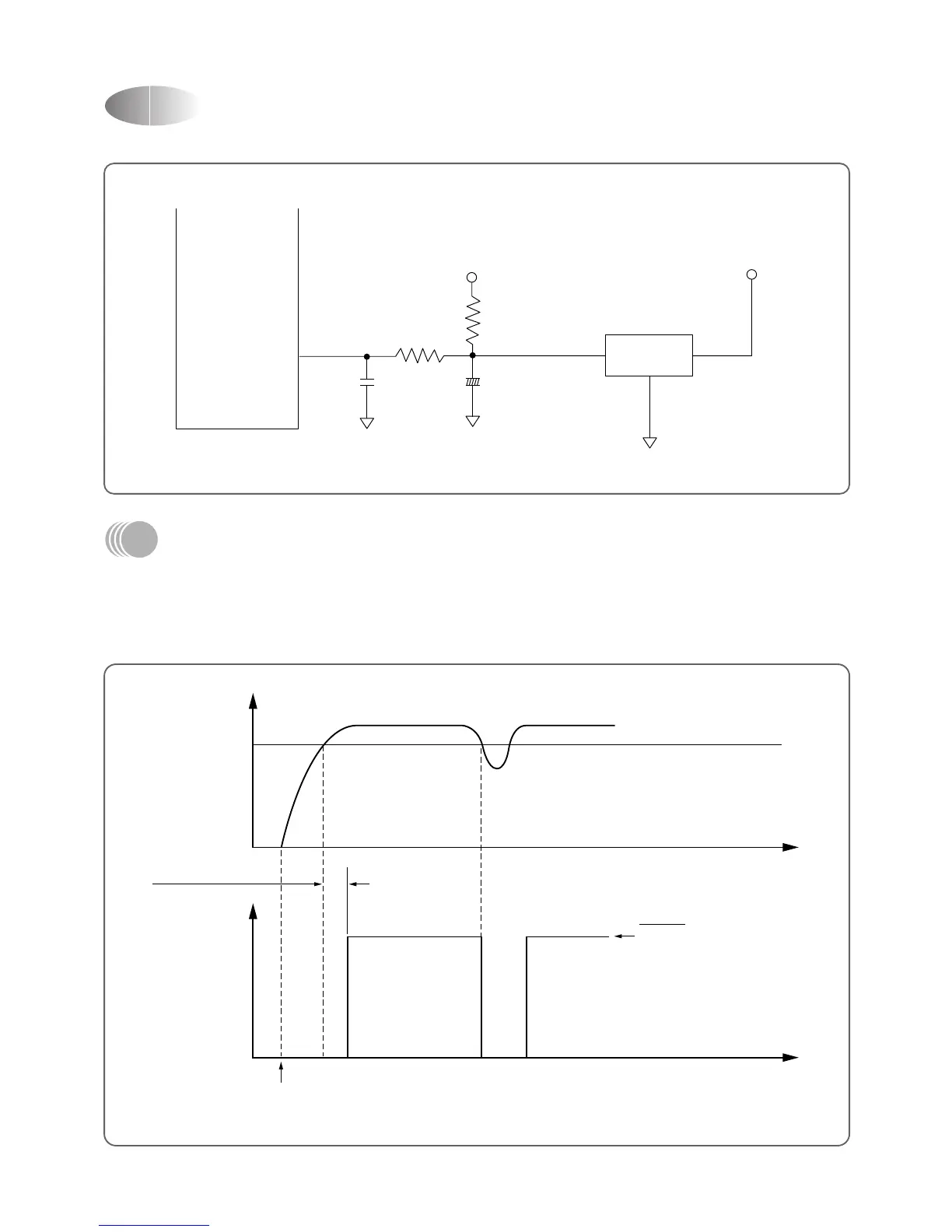

DESCRIPTION
Voltage less than about 0.8V put in Micom Terminal of Number 18 and then Micom reset. Reset IC detect
Power ON and Voltage less than 4.2V, and then send Reset Signal. There is a Manual Reset S/W to reset
manually if necessary.
Reset (7)
R9
1K
CC3
104
R10
5.6K
5V
18
5V
CE1
4.7µF/50
3
7042P
MICOM
1
2
RESET IC
+
4.2V
H
L
t
t
POWER
ON
Vcc (+5V)
DELAY TIME
FOR POWER ON
RESET
