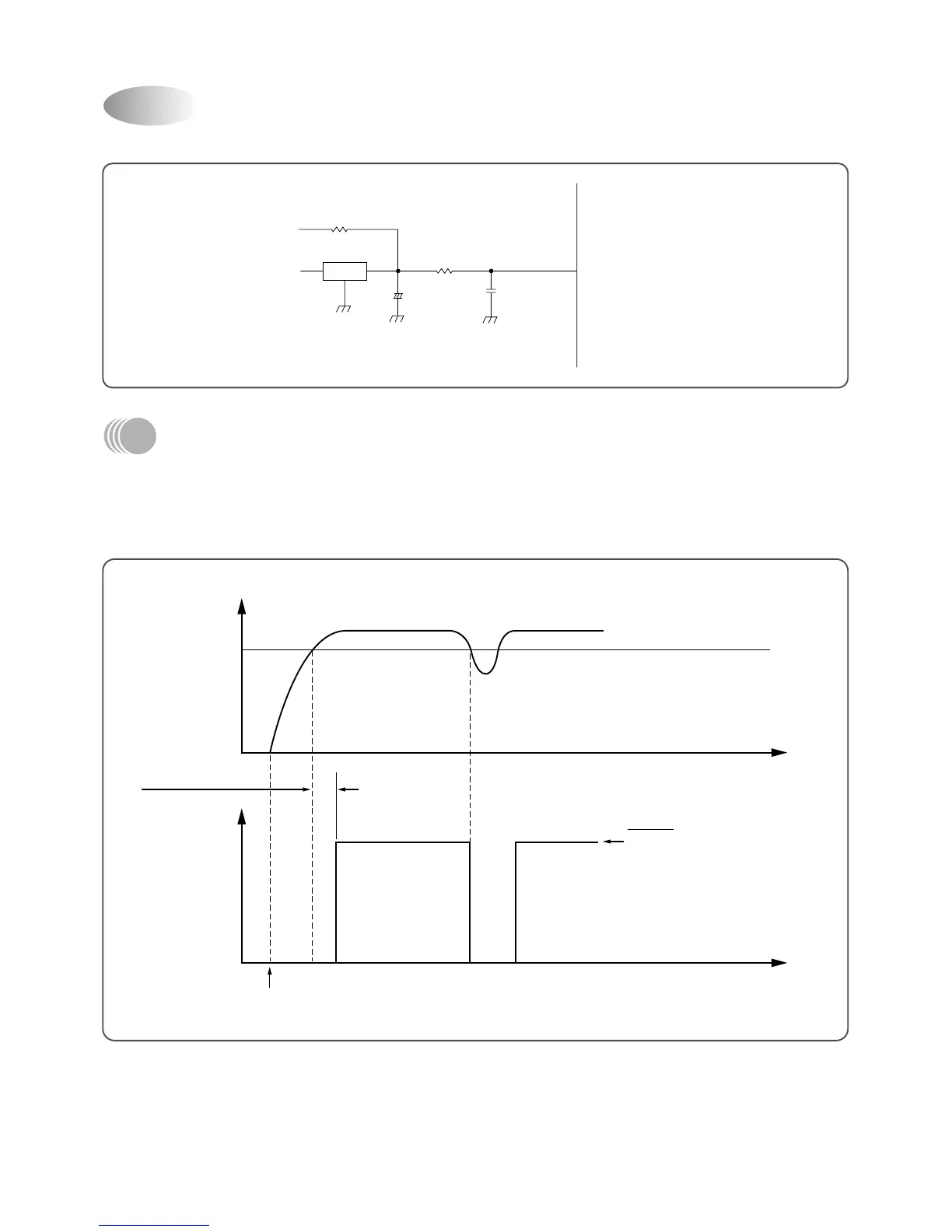

DESCRIPTION
V
oltage less than about 0.8V put in Micom T
erminal of Number 18 and then Micom reset. Reset IC detect
Power ON and V
oltage less than 4.25V
, and then send Reset Signal.
Reset(8)
R13
5.6K
1K
R12
18
CC9
CE4
4.7uF/50V
IC5
7042P
10.3
MICOM
4.25V
H
L
t
t
POWER
ON
Vcc (+5V)
DELAY TIME
FOR POWER ON
RESET
57
59
