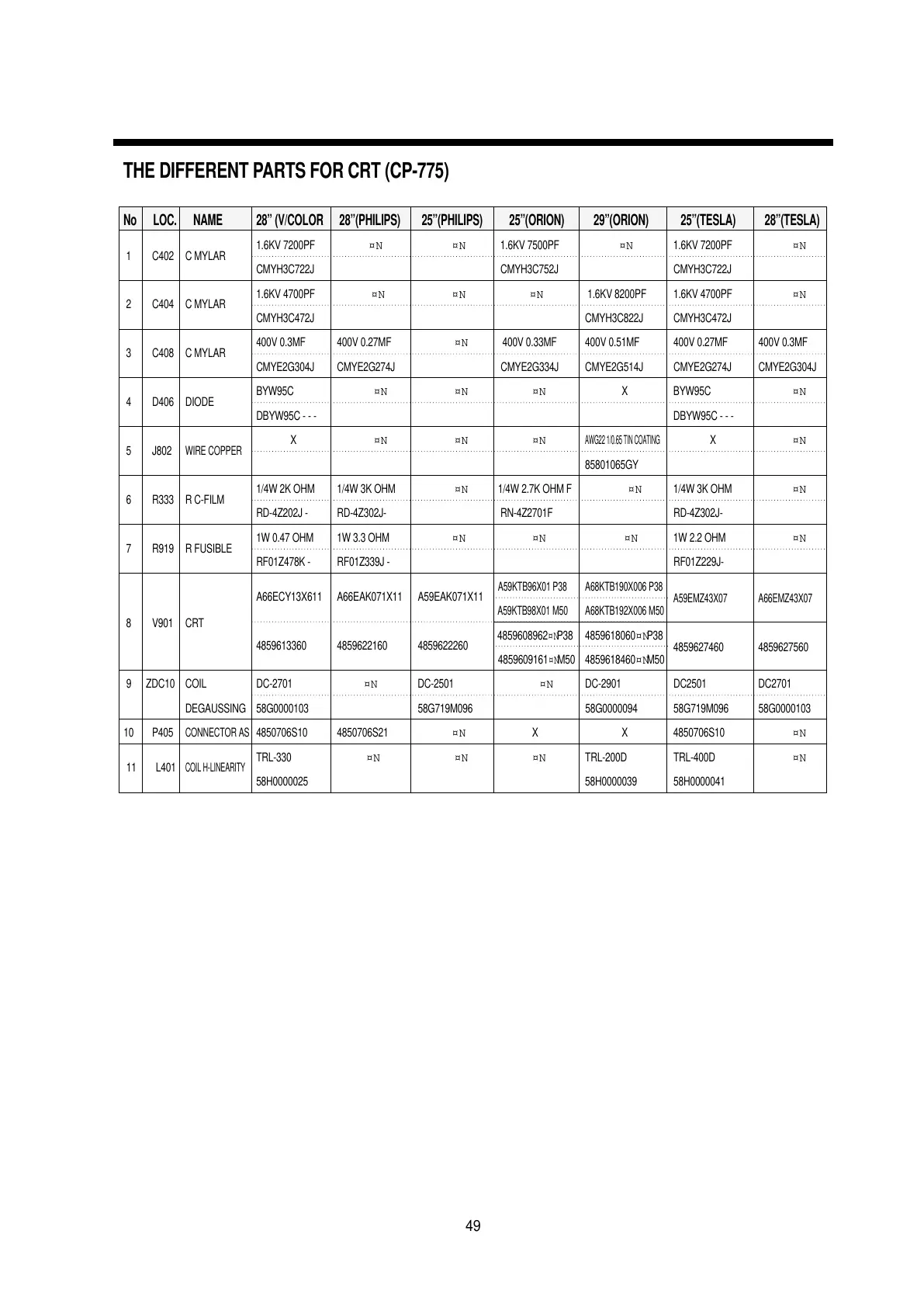

THE DIFFERENT PARTS FOR CRT (CP-775)
No LOC. NAME 28” (V/COLOR 28”(PHILIPS) 25”(PHILIPS) 25”(ORION) 29”(ORION) 25”(TESLA) 28”(TESLA)
1 C402 C MYLAR
1.6KV 7200PF ¤N ¤N 1.6KV 7500PF ¤N 1.6KV 7200PF ¤N
CMYH3C722J CMYH3C752J CMYH3C722J
2 C404 C MYLAR
1.6KV 4700PF ¤N ¤N ¤N 1.6KV 8200PF 1.6KV 4700PF ¤N
CMYH3C472J CMYH3C822J CMYH3C472J
3 C408 C MYLAR
400V 0.3MF 400V 0.27MF ¤N 400V 0.33MF 400V 0.51MF 400V 0.27MF 400V 0.3MF
CMYE2G304J CMYE2G274J CMYE2G334J CMYE2G514J CMYE2G274J CMYE2G304J
4 D406 DIODE
BYW95C ¤N ¤N ¤N X BYW95C ¤N
DBYW95C - - - DBYW95C - - -
5 J802 WIRE COPPER
X ¤N ¤N ¤N AWG22 1/0.65 TIN COATING X ¤N
85801065GY
6 R333 R C-FILM
1/4W 2K OHM 1/4W 3K OHM ¤N 1/4W 2.7K OHM F ¤N 1/4W 3K OHM ¤N
RD-4Z202J - RD-4Z302J- RN-4Z2701F RD-4Z302J-
7 R919 R FUSIBLE
1W 0.47 OHM 1W 3.3 OHM ¤N ¤N ¤N 1W 2.2 OHM ¤N
RF01Z478K - RF01Z339J - RF01Z229J-
8 V901 CRT
A66ECY13X611 A66EAK071X11 A59EAK071X11
A59KTB96X01 P38 A68KTB190X006 P38
A59EMZ43X07 A66EMZ43X07
A59KTB98X01 M50 A68KTB192X006 M50
4859613360 4859622160 4859622260
4859608962¤NP38 4859618060 ¤N P38
4859627460 4859627560
4859609161¤NM50 4859618460 ¤N M50
9 ZDC10 COIL DC-2701 ¤N DC-2501 ¤N DC-2901 DC2501 DC2701
DEGAUSSING 58G0000103 58G719M096 58G0000094 58G719M096 58G0000103
10 P405 CONNECTOR AS 4850706S10 4850706S21 ¤N X X 4850706S10 ¤N
11 L401 COIL H-LINEARITY
TRL-330 ¤N ¤N ¤N TRL-200D TRL-400D ¤N
58H0000025 58H0000039 58H0000041
