NOTE: PLACING THE UNIT IN THE SERVICE MODE
Service option
For this chassis, the sensors (start/end/reel) are located on the MAIN circuit board, not in the DECK assembly. There is an important
service option that has to be followed to repair the MAIN circuit board with the DECK assembly connected. To imitate the function of
the sensors, insert the SVC Mode Diode (D707) on the MAIN circuit board as shown below.

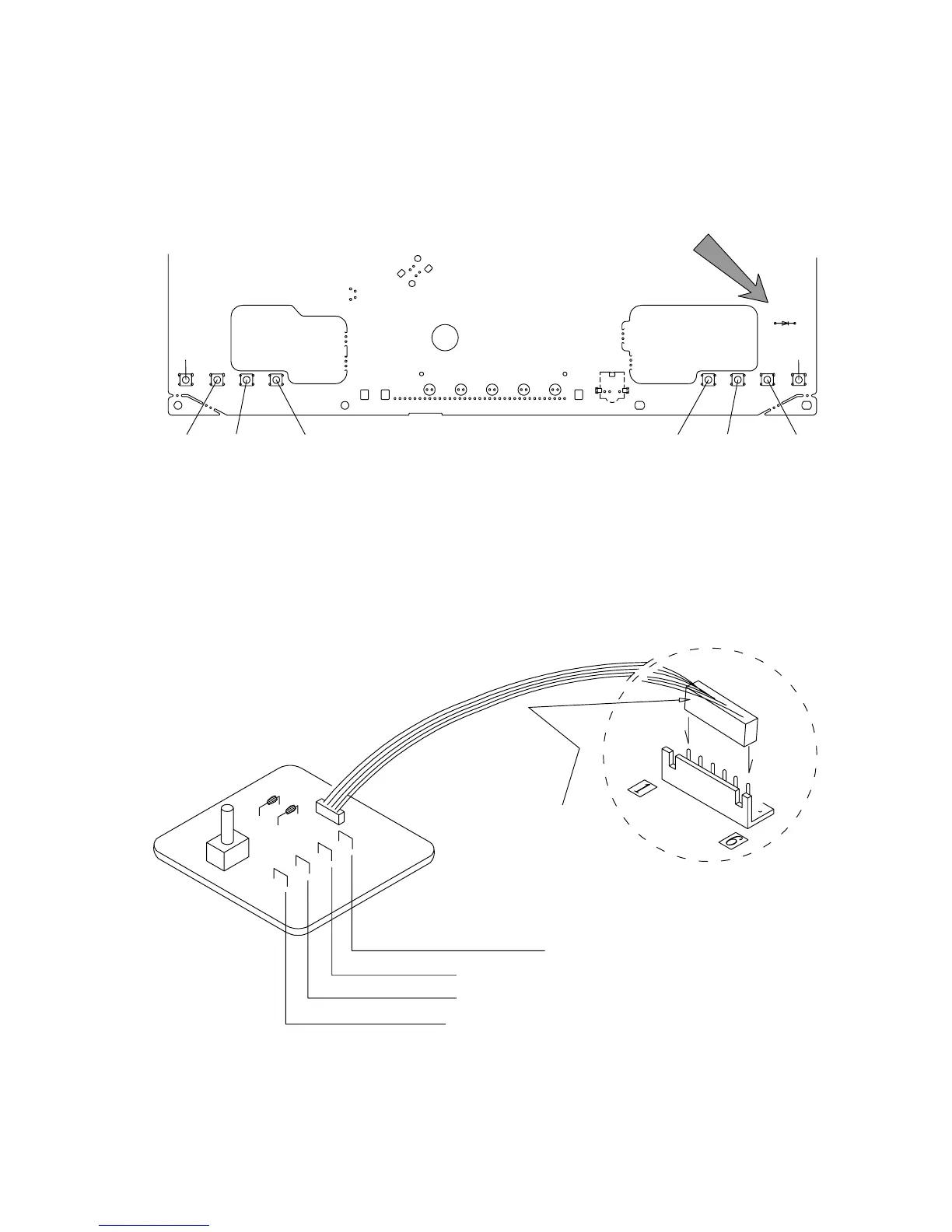

MAIN P.C.B (TOP SIDE)
PATH FIXTURE CONNECTION/TEST POINT IDENTIFICATION
Refer to the adjustment of the tape transporting system.
