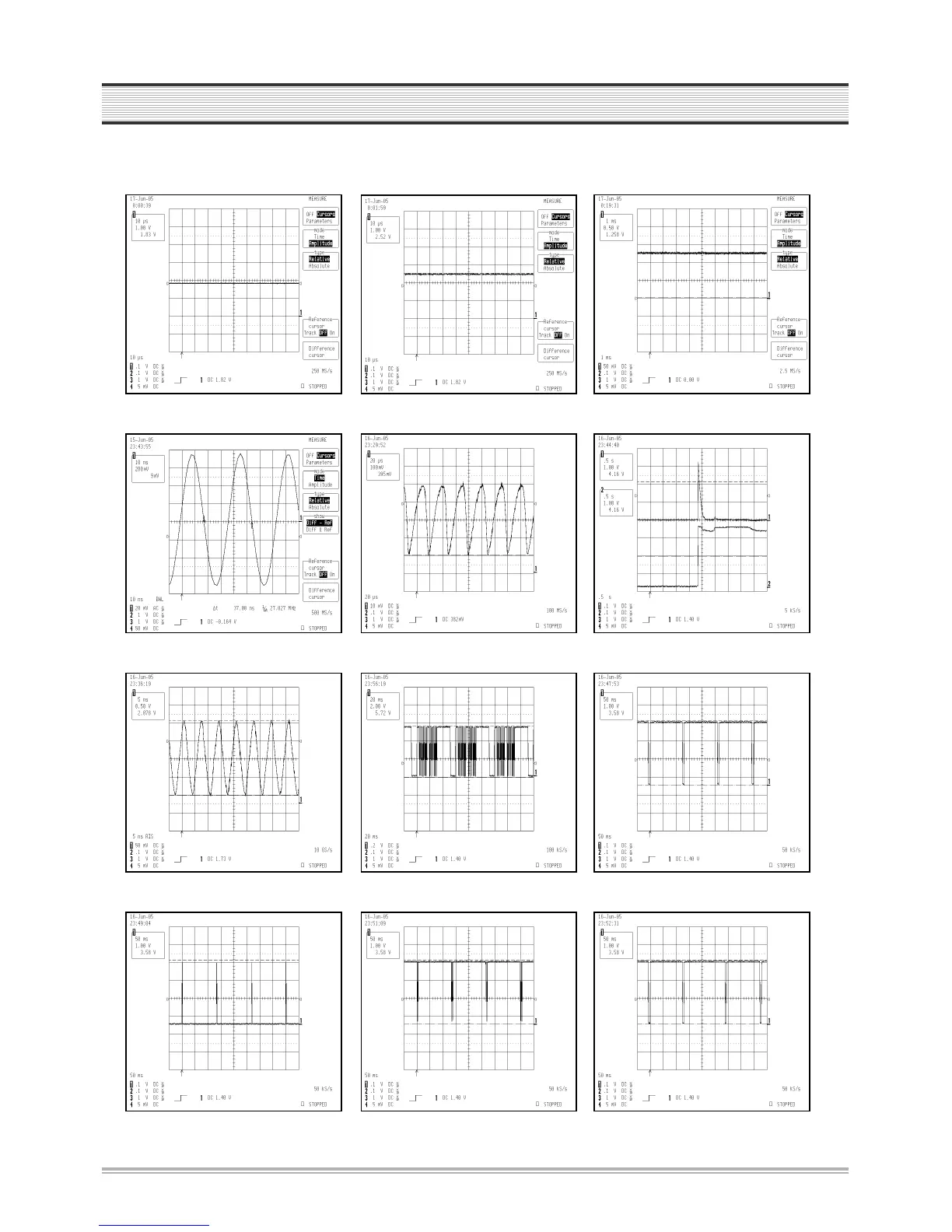

WAVEFORMS

1. SYSTEM WAVEFORMS

< ICC03 : +1.8Voltage > < ICC02 : +2.5Voltage > < ICM02 : +1.25Voltage >

< XN02 : 32.768KHz X-tal >< XN01 : 27MHz X-tal > < RN22 : MT8105 Reset

& +3.3V STBY >

< RM13 : DDR clock > < RN04 : IR > < RC71 : SDATA-IN >

< RC70 : SDATA-OUT > < RC69 : S-CLK > < RC68 : S-CS >

Daewoo DW-Q73D2N-LS - Page 36
