6

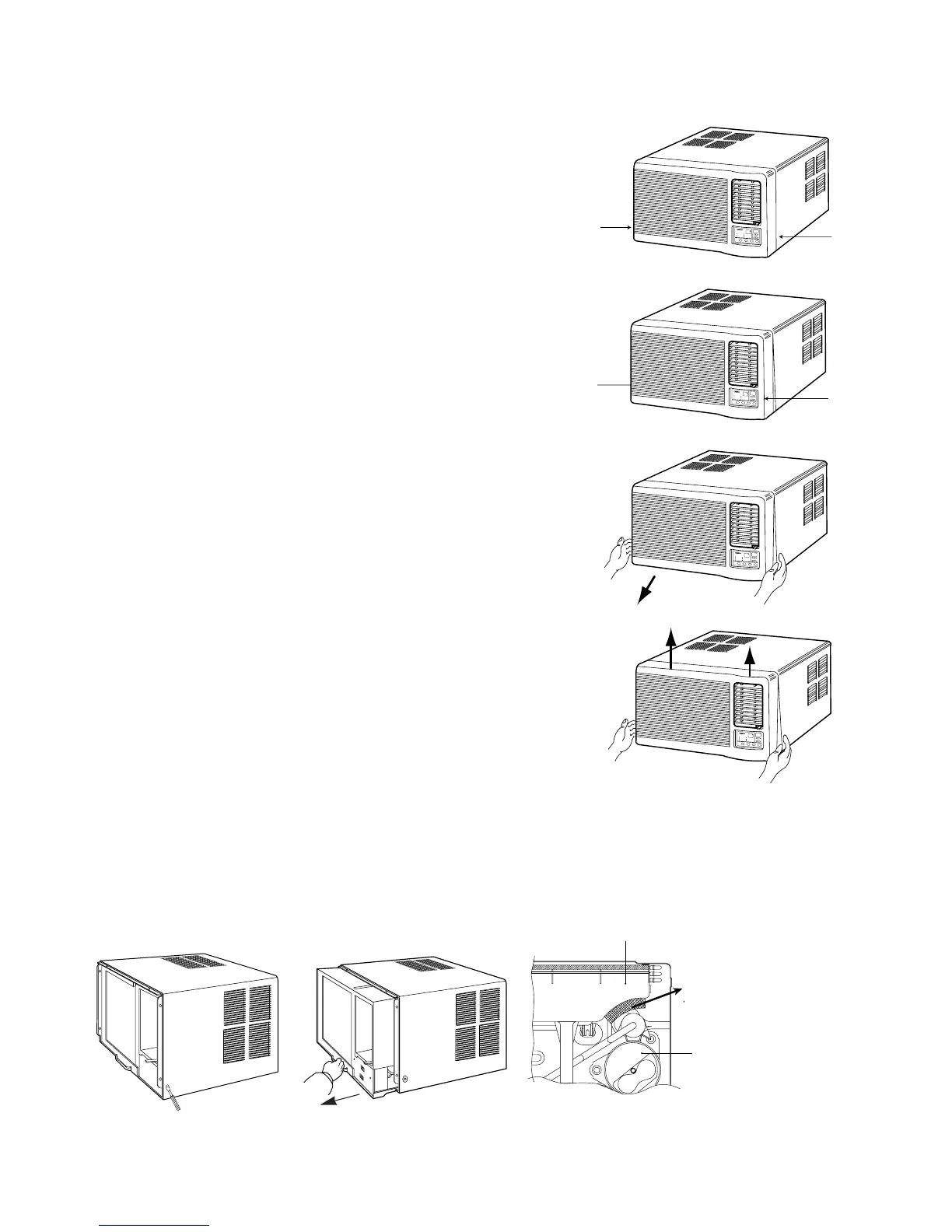

3. Disassemble Front Grille from Chassis.
– Front Grille and chassis are fixed with snap-fit.
1) Release right-lower snap-fit.
Push the right lower side of chassis to the left, with pushing left side
of Front Grille to the right until the snap-fit is released.
2) Release left-lower snap-fit.
Push the left-lower side of chassis to the right, with pushing right
side of Front Grille to the right until the snap-fit is released.
3) Pull lower side of the Front Grille until it is separated from the
chassis.
4) Push base side of the Front Grille to upper side until it is separated
from the chassis.
4. Remove the part which protect orifice
1) After front grille is removed, remove two screws located in both side of chassis.
2) Grip the handle of base pan and pull out the unit from chassis.
3) Remove the orifice protector (shaded area object) inside of the unit, when you install the unit.
Do not remove any other Styrofoam because that is a part of the unit.
Push
Push
Push
Push
Remove the orifice protector inside
when you install the set.
