22

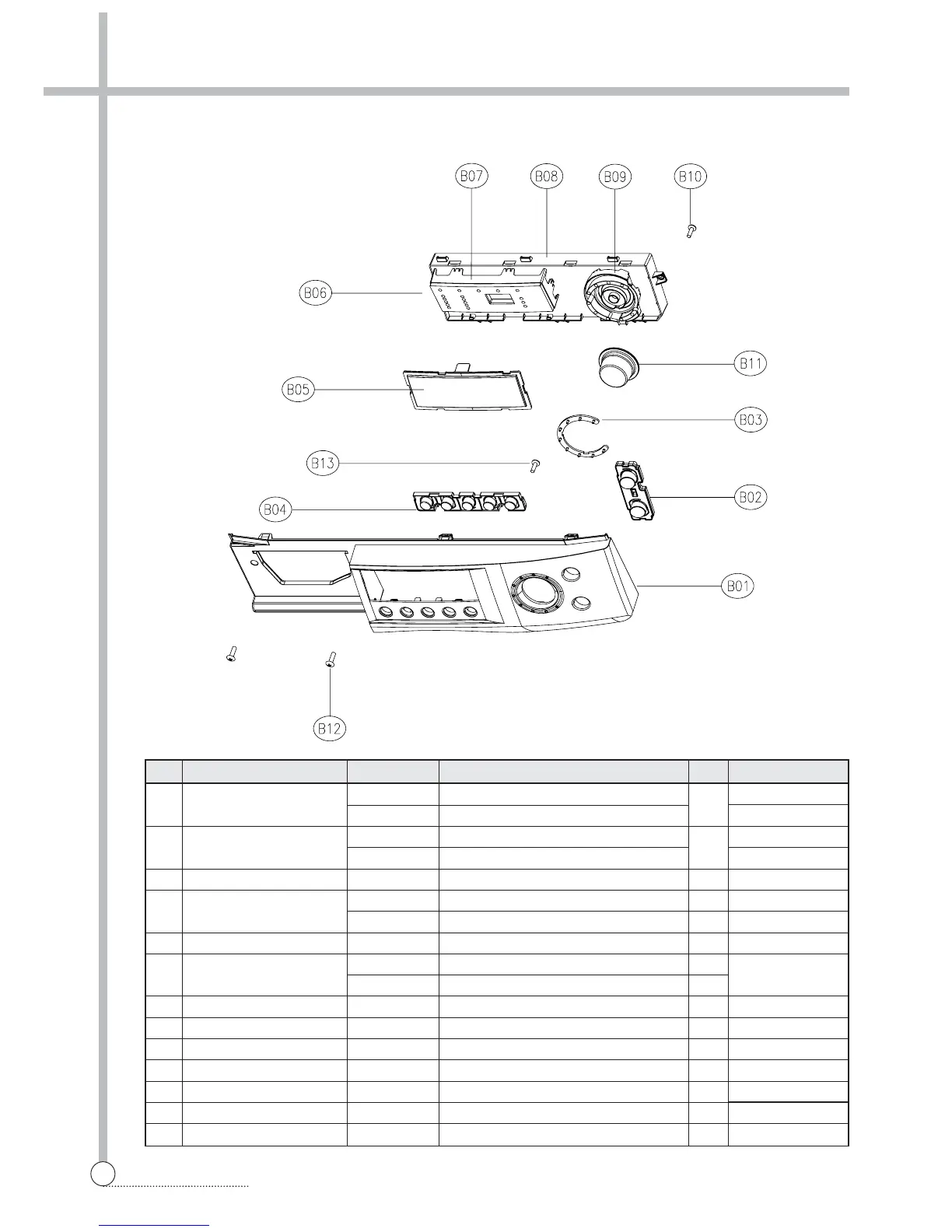

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FD142X SERIES)
B01 PANEL *F
3614284502 HIPS
1
DWD-FD1421(2)
3614284510 SILVER SPRAY DWD-FD1423
B02 BUTTON POWER
3616604200 ABS
1
DWD-FD1421
3616604210 ABS+AL COATING DWD-FD1422(3)
B03 WINDOW DIAL 3615503400 ABS 1
B04 BUTTON SELECT 3616604100 ABS 1 DWD-FD1421
3616604110 ABS+AL COATING 1 DWD-FD1422(3)
B05 WINDOW LED 3615503300 ABS 1
B06 PCB AS
PRPSSWFJ-- DWD-FD14'S, DONGSUH MOTOR 1
PRPSSWFL-- DWD-FD14'S, NEWMOTECH MOTOR 1
B07 HOLDER LED 3613050500 ABS 1
B08 CASE PCB 3611140200 HIPS 1
B09 HOLDER DIAL 3613050600 ABS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL 3613405110 ABS+SPRAY 1
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
To Next Page
