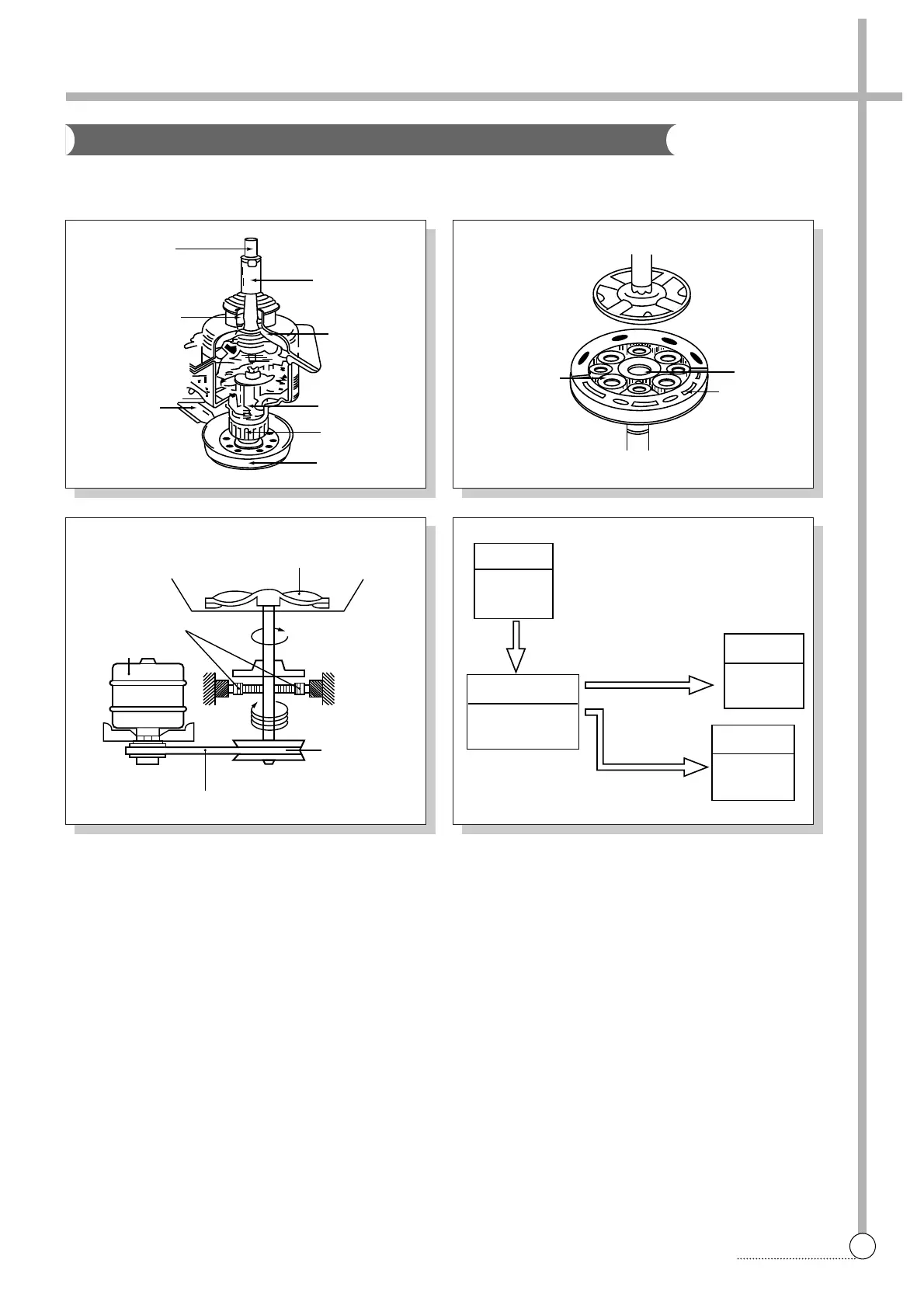

Daewoo DWF-1198 - Gear Mechanism Assembly Explanation

15
EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
Pulsator shaft
One way clutch
bearing
Brake lever
Spin shaft
Gear unit as
Clutch spring
Clutch boss
Gear pulley
Planetary gear
Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
(6:DWF-1398)
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
Directly
1/5:DWF-1098,1068,
1048
(1/6:DWF-1398)
Tub
640 r.p.m
Pulsator
128 r.p.m
(107 r.p.m)
Gear Pulley
640 r.p.m
Gear Mechanism Ass’y
