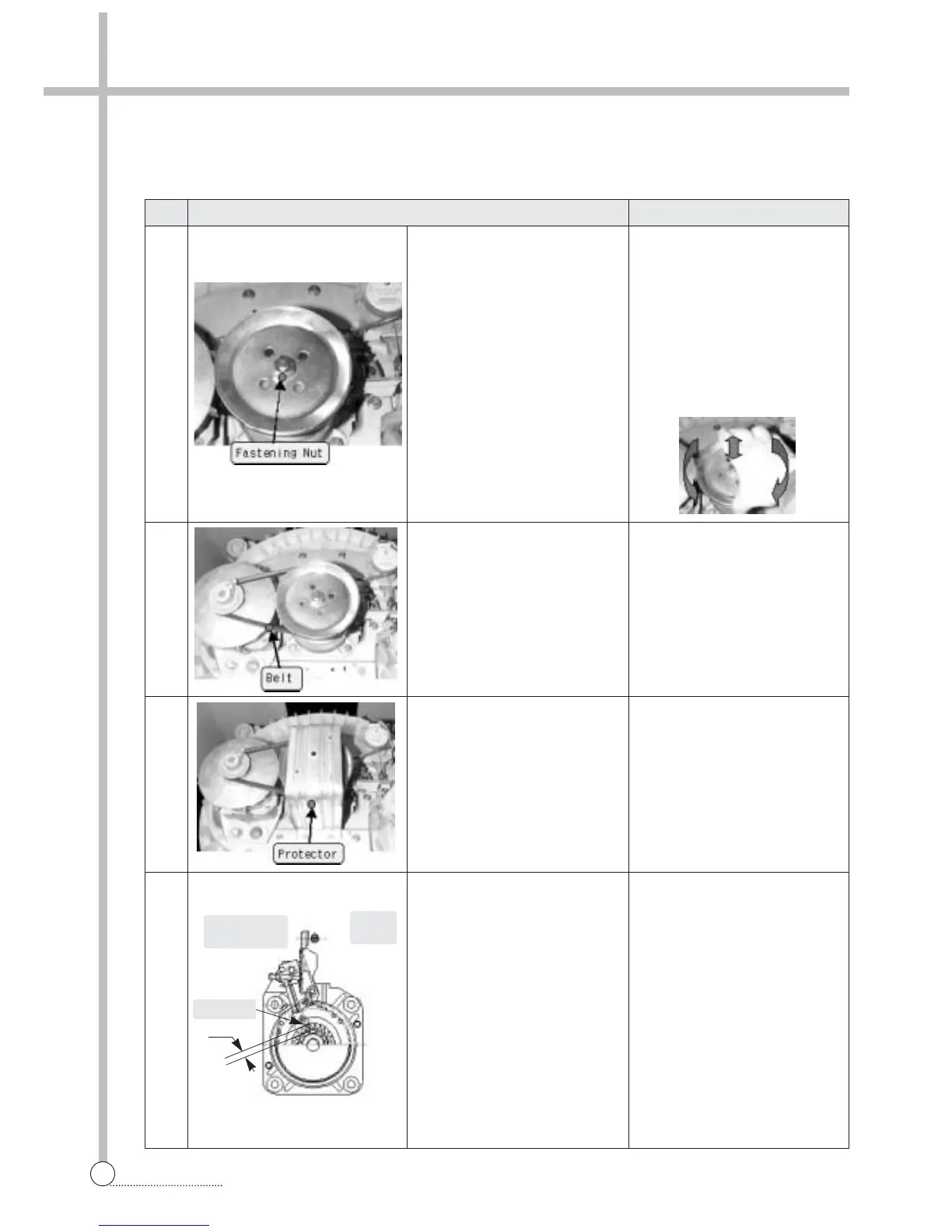

Daewoo DWF-261AW - The Process Of Assembling; Assembling 2

20
THE REPAIR
No. Process Notice
Assembling 2
5
6
7
8
Assemble the fastening nut
Assemble the belt
Assemble the protector
Final checking
- Use fixing jig and 17mm
socket wrench
as if disassembling,
as fastening torque about
100~200kgf-cm.
- Check the end-play, up and
downward and check the
binding force, too much or not
on bi-direct of rotation.
Finally, check the interference
depth both clutch tip and clutch
boss(3.5~4.5mm)
Clutch Tip
Drain
Valve
Synchronous
Motor
3.5~4.5
