2. EXTERNAL VIEW
3
STRUCTURE

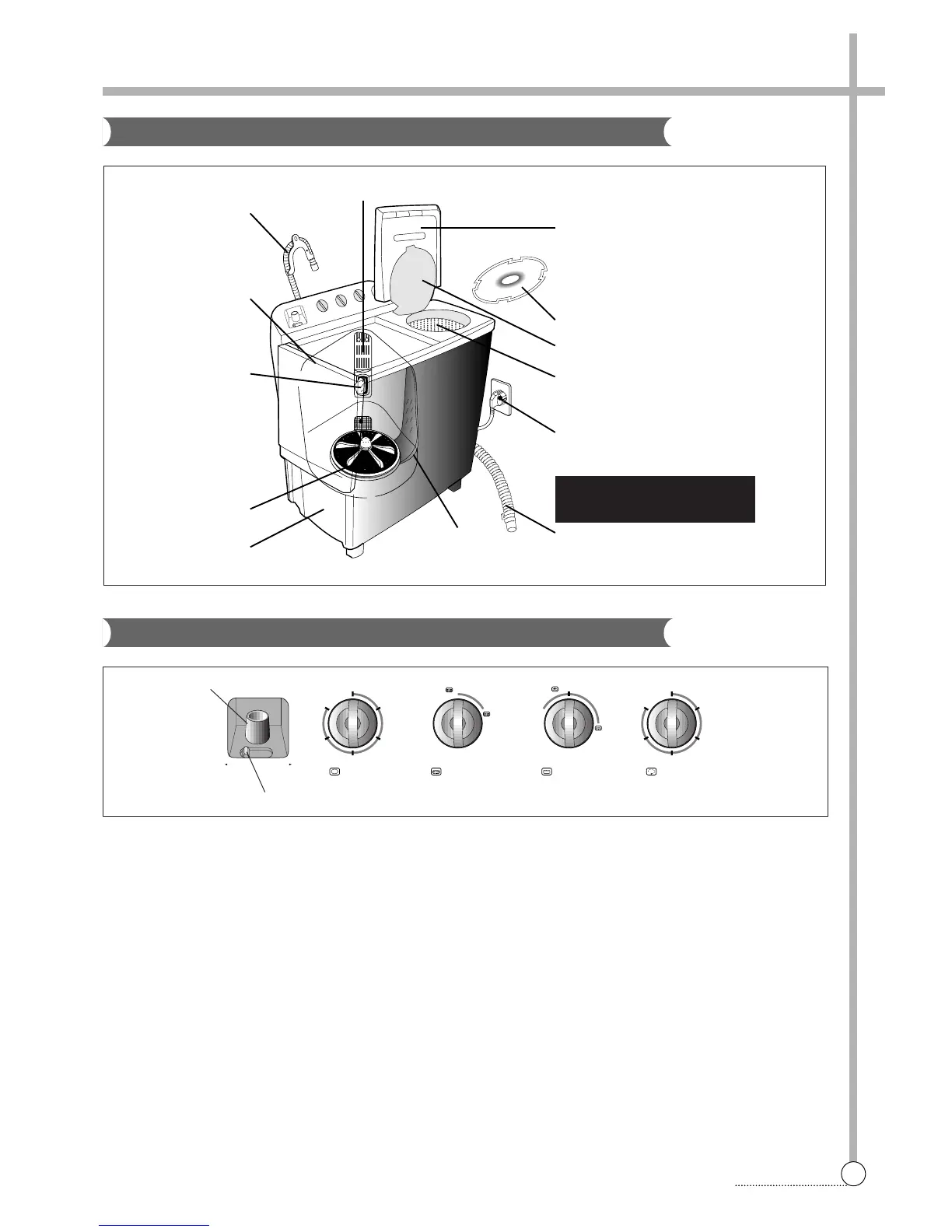

Structure Of The Wash Machine
Control Panel (Panel b Ass’y)
11
INLET WATER
Connect inlet hose to supply water in the WASH
TUB or BASKET SPIN.
22
LEVER WATER SUPPLY SELECTOR
Left : water supply in the WASH TUB.
Right : water supply in the BASKET SPIN.
33
WASH TIMER
Use to select the desired time for washing or rins-
ing.
44
WASH ACTION
Use to select wash action. (STRONG”, “NORMAL”)
55
VALVE SELECTOR
Select “WASH.RINSE” for washing and rinsing, and
“DRAIN” to drain the water.
(In case PUMP MODEL turn on the drain pump)
“OFF” to turn off the drain pump. (Only PUMP
MODEL)
66
SPIN TIMER
Used to select the desired time for spinning.
WATER DRAIN HOSE
(PUMP MODEL)
PULSATOR
BASE UNDER
OVERFLOW FILTER
SPIN DRYER LID
When you open this lid while the spin basket is spinning,
the spinning will be stopped by brake system.
LINT FILTER
This is used for gathering the
dregs which are made during
washing.
WASH TUB LID
During operation, close the
wash tub lid.
POWER CORD
The plug’s shape may not correspond with this drawing.
“WARNING-THIS APPLIANCE
MUST BE EARTHED”
SAFETY COVER
INNER LID
SPIN DRYER BASKET.
WATER DRAIN HOSE
(NON-PUMP MODEL)
GUIDE
CASCADE
! #
@
$ % ^
