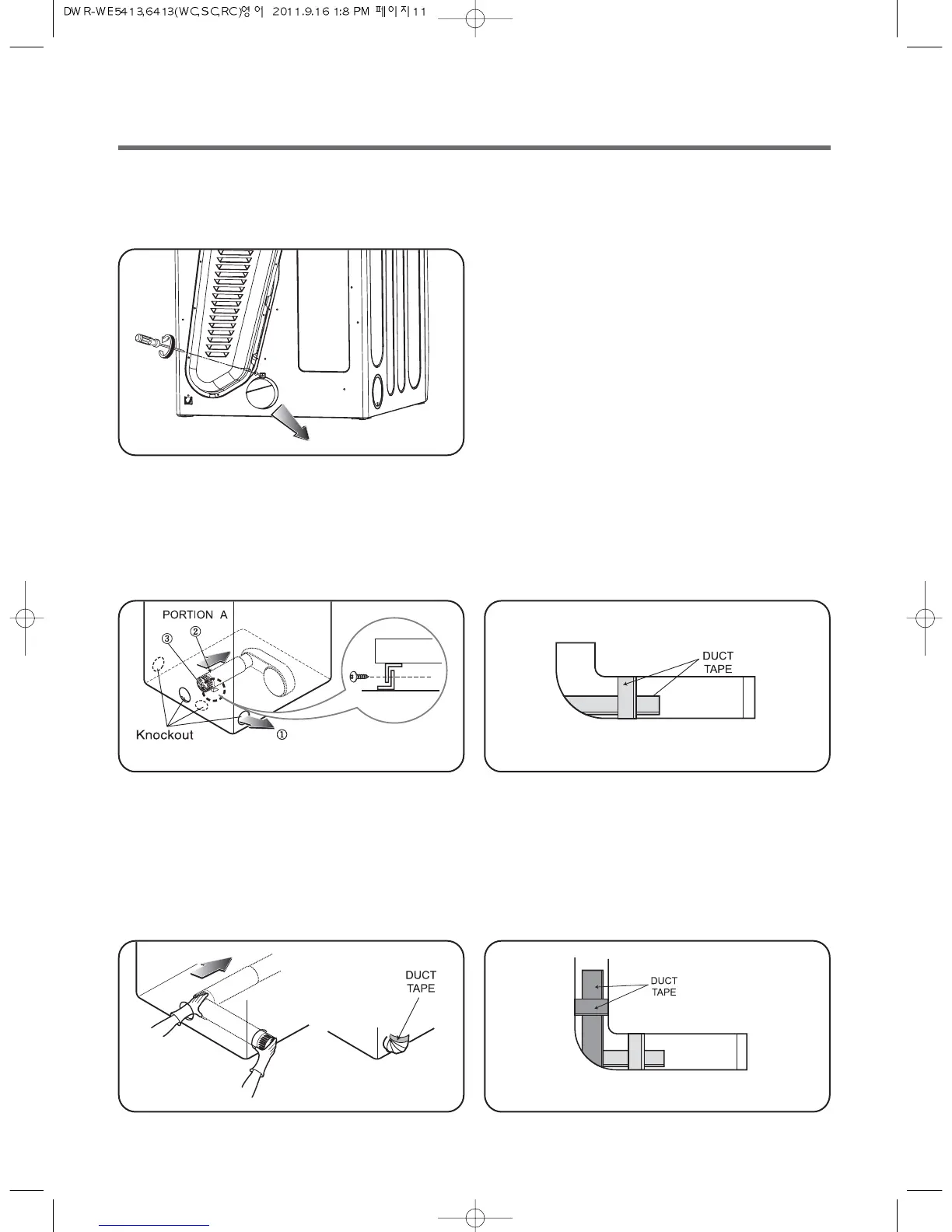

■ ALTERNATE EXHAUST DIRECTIONS
1. Remove screw and exhaust duct.
2-1. Detach and remove the knockout that
matches the desired venting direction
(Right side not available on Gas Dryers)
2-2. Reconnect the new duct[8.66 inch(22cm)]
to the blower housing, and fixing the duct
to the base.
3-1. Insert the male end of a 4" elbow into the
female end of a short duct. Tape the joint.
3-2. Insert this assembly elbow first through
the hole in the dryer and push the female
end of the elbow onto the male end of the
blower output shaft. Tape the joint.
