23
lf your local codes or ordinances permit the connection of a frame-grounding conductor to the neutral wire, use
these instructions.
If your local codes or ordinances do not allow the connection of a frame-grounding conductor to the neutral wire,
use the instructions under Section 1: Optional 3- wire connection.

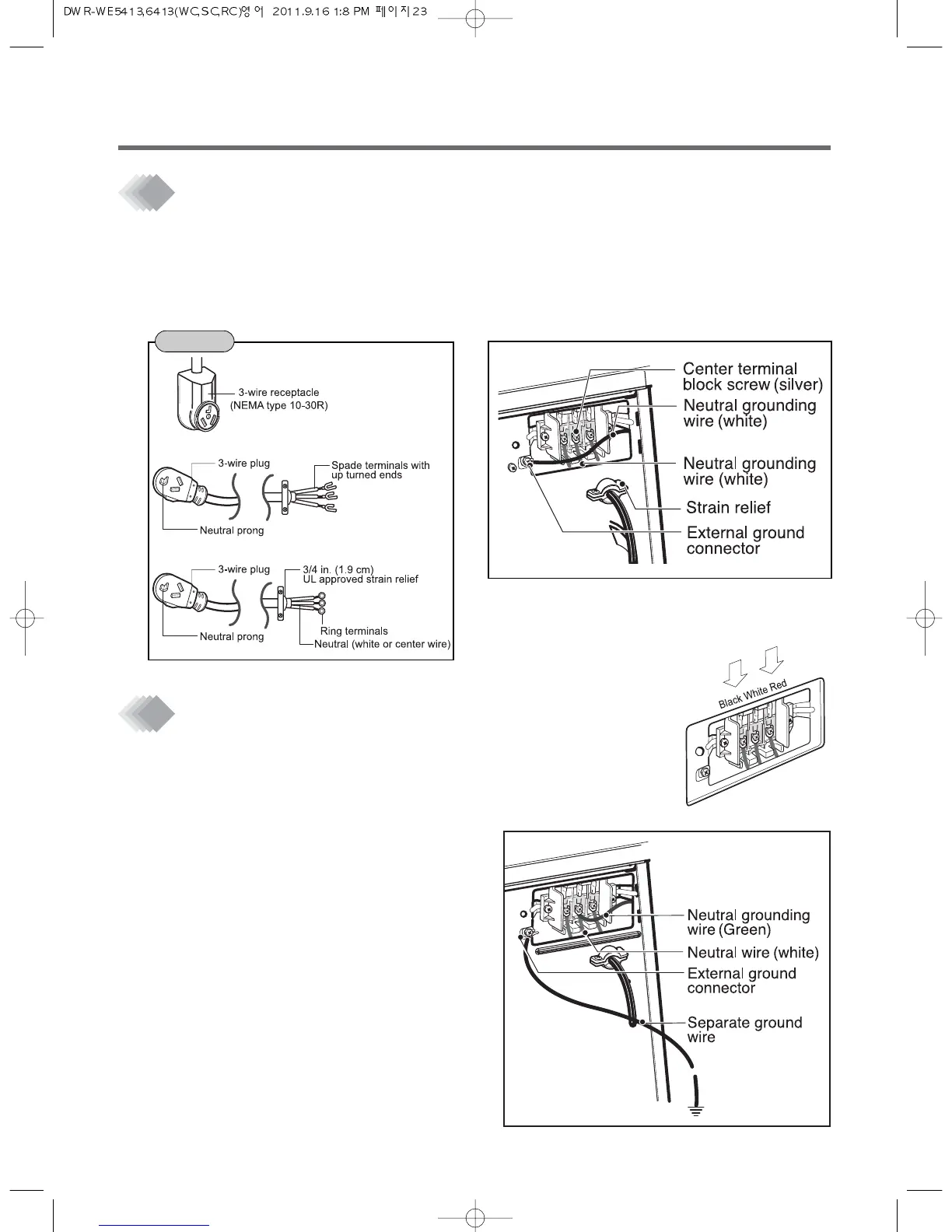

Option 2: 3-Wire connection with a power supply cord.
• If your local codes or ordinances do not allow the connection of a frame-grounding
conductor to the neutral wire, use the instructions under this section.
1. Connect neutral wire (white) of power cord to center terminal block screw.
2. Connect ground wire of appliance and neutral wire
of power cord to center terminal block screw.
3. Connect red and black wires to the left and right
terminal block screws.
4. Make sure the strain relief screw is tightened. Be
sure that all terminal block nuts are on tight and
power cord is in right position.
5. Connect independent ground wire from external
ground connector to proper ground.
Option 3: Optional 3-wire connection.
