Components disassembly pictures

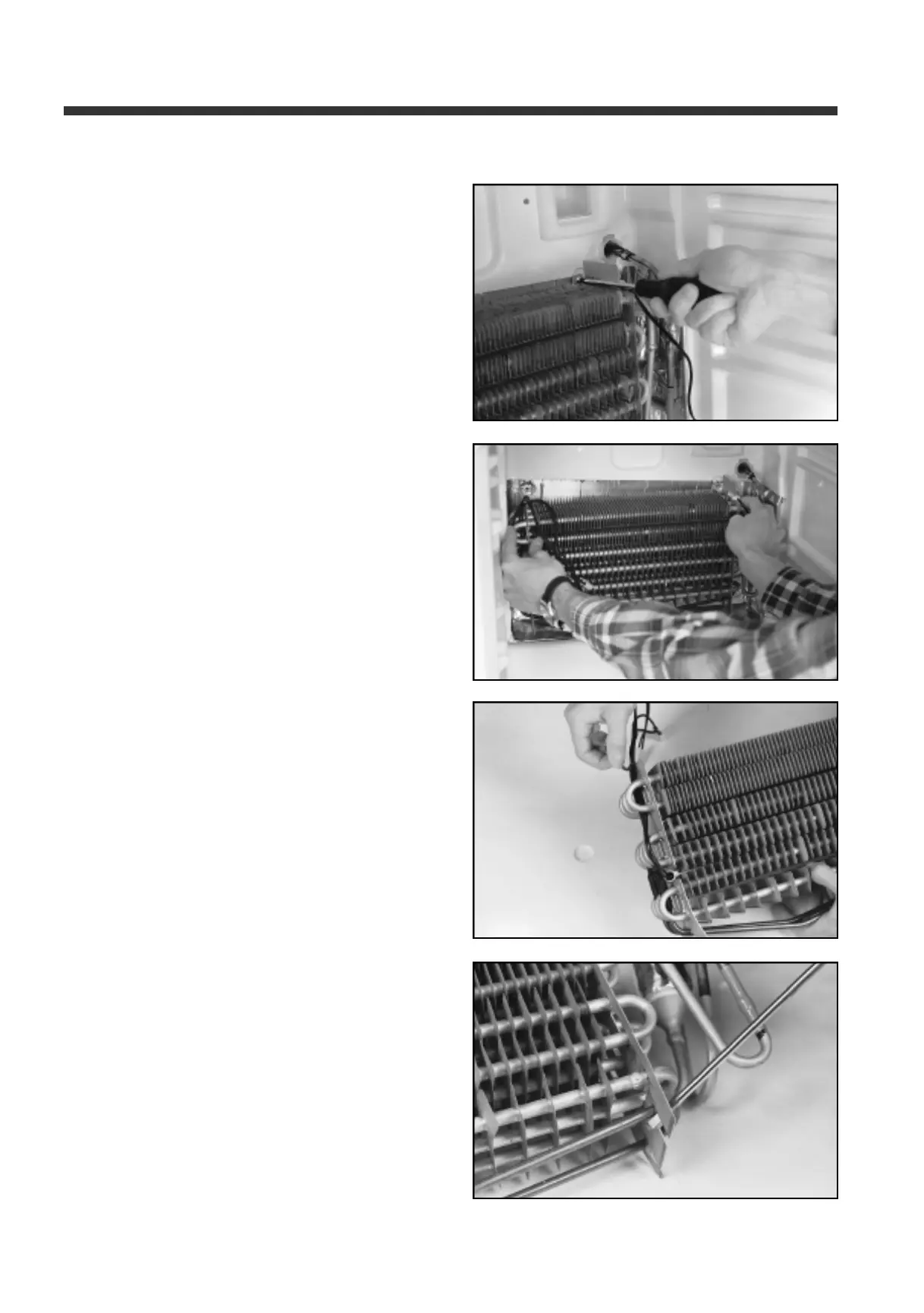

5) Extract evaporator forward with minimising the
pipe deformation after grasping the both sides of
evaporator and pulling accumulator slighty forward
4) Remove 2 evaporator fixing screws
7. Defrost Heater
1. ERF-310A, 340A, 370A, 310M,
340M, 370M
1) Remove the cable tie
2) Bend 2 small aluminium fixture ribs with
a screwdriver
To Next Page
