7

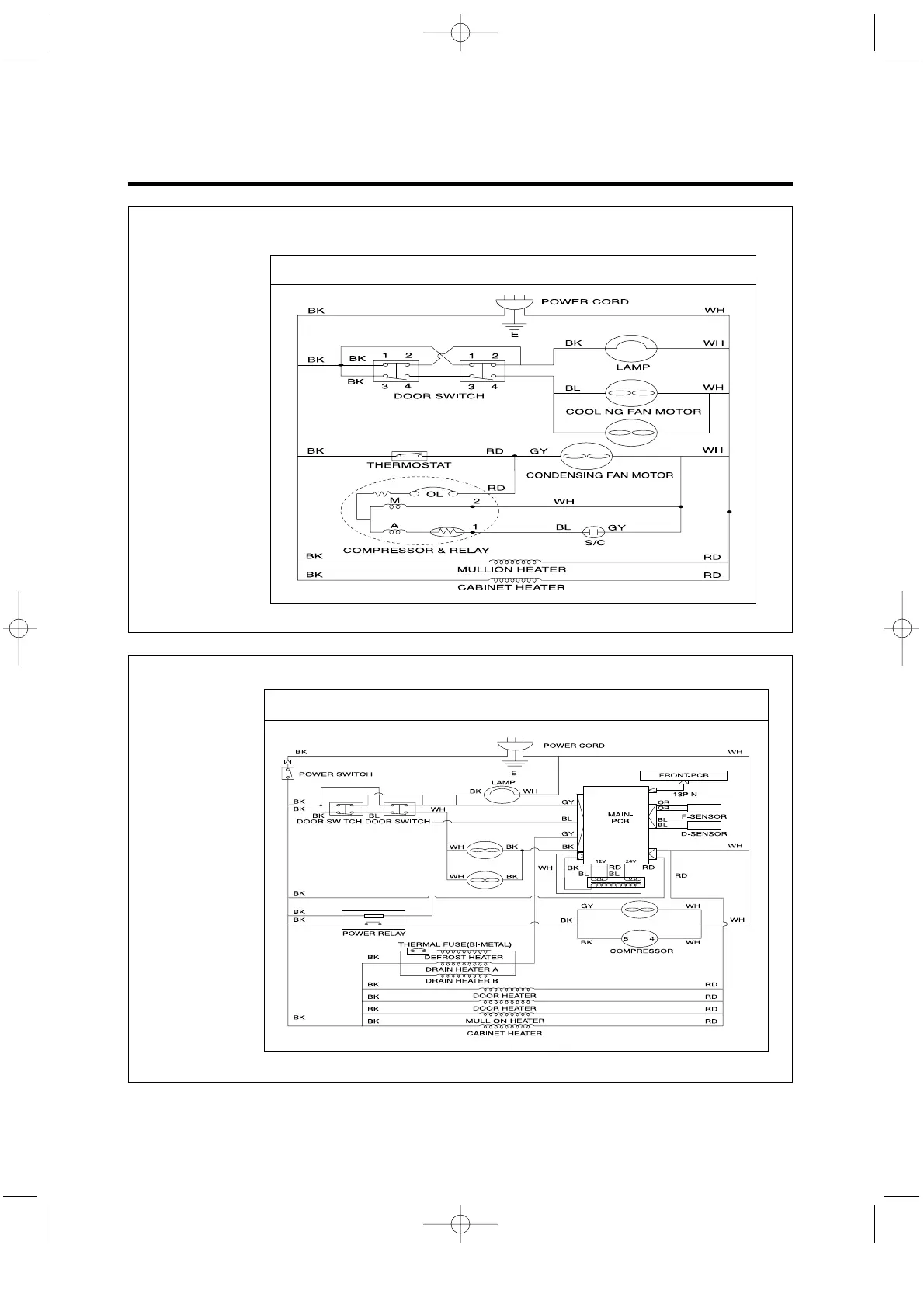

WIRE DIAGRAM
WIRING DIAGRAM
2-6. FD-1250R
220V/50Hz
WIRING DIAGRAM
COOLING
FAN MOTOR
CONDENSING
FAN MOTOR
2-7. FD,SD-1250F
220V/60Hz
FD,SD-650R,1250R¿ 12– ` (¿) 02.8.21 4:48 PM ˘`7
