Daewoo FD Series - FD,SD-1250 R Wiring Schematics

6

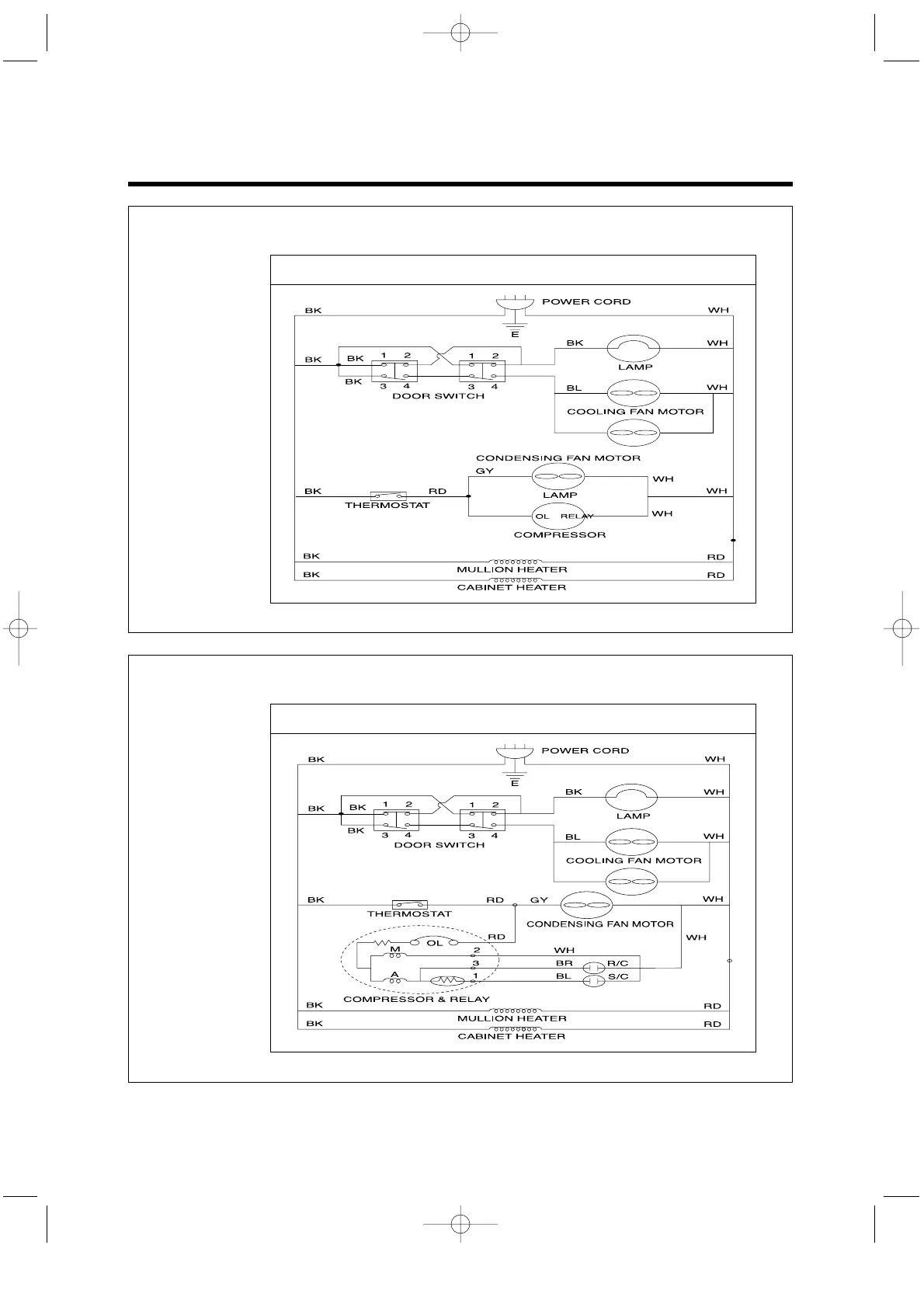

WIRE DIAGRAM
WIRING DIAGRAM
2-4. FD,SD-1250R
WIRING DIAGRAM
2-5. FD,SD-1250R
127V, 115V/60Hz
220V/60Hz
