7. MACHINE ROOM VIEW AND PART LIST
9

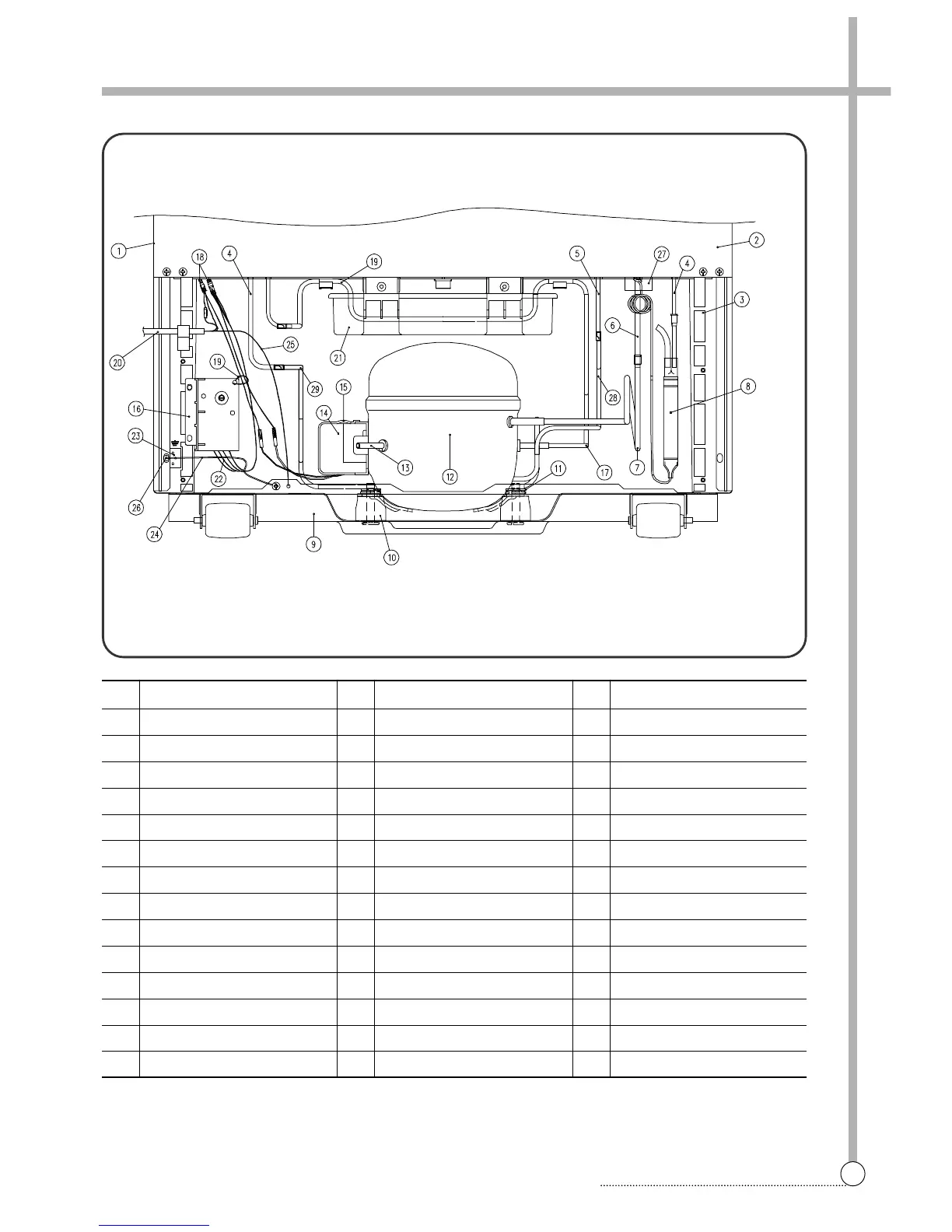

MACHINE ROOM VIEW AND PART LIST
NO. PART NAME NO. PART NAME NO. PART NAME
1 CABINET AS 15 BAND RELAY 29 PIPE COOLING
2 COVER CAB 16 BOX POWER AS 30
3 BASE CAB AS 17 PIPE VAPORI 31
4 PIPE *S PLT 18 HARNESS MAIN 32
5 PIPE HOT 19 WIRE BIND 33
6 PIPE SUC AS 20 CORD POWER 34
7 PIPE CONN (SUC) 21 CASE VAPORI 35
8 DRYER AS 22 HARNESS TIMER AS 36
9 BASE COMP 23 BRACKET EARTH 37
10 ABSORBER COMP 24 WIRE EARTH 38
11 WASHER COMP *T 25 POWER CORD EARTH 39
12 COMPRESSOR 26 SCREW MACHINE 40
13 PIPE SERVICE 27 BANGJIN GUM 41
14 SWITCH P-RELAY AS 28 PIPE COOLING HOT 42
