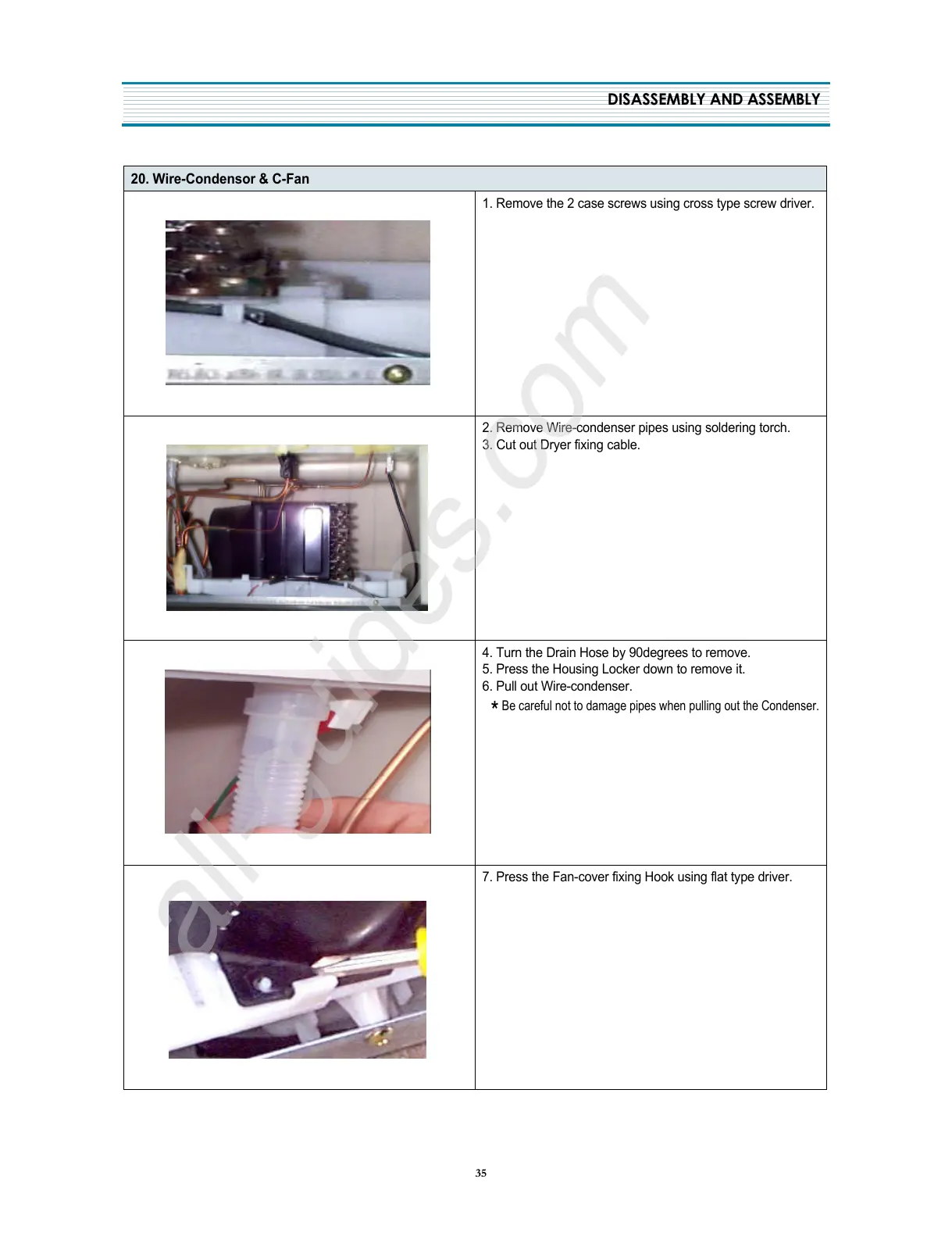

20. Wire-Condensor & C-Fan
1. Remove the 2 case screws using cross type screw driver.
2. Remove Wire-condenser pipes using soldering torch.
3. Cut out Dryer fixing cable.
4. Turn the Drain Hose by 90degrees to remove.
5. Press the Housing Locker down to remove it.
6. Pull out Wire-condenser.
Be careful not to damage pipes when pulling out the Condenser.
7. Press the Fan-cover fixing Hook using flat type driver.
DISASSEMBLY AND ASSEMBLY
To Next Page
