36

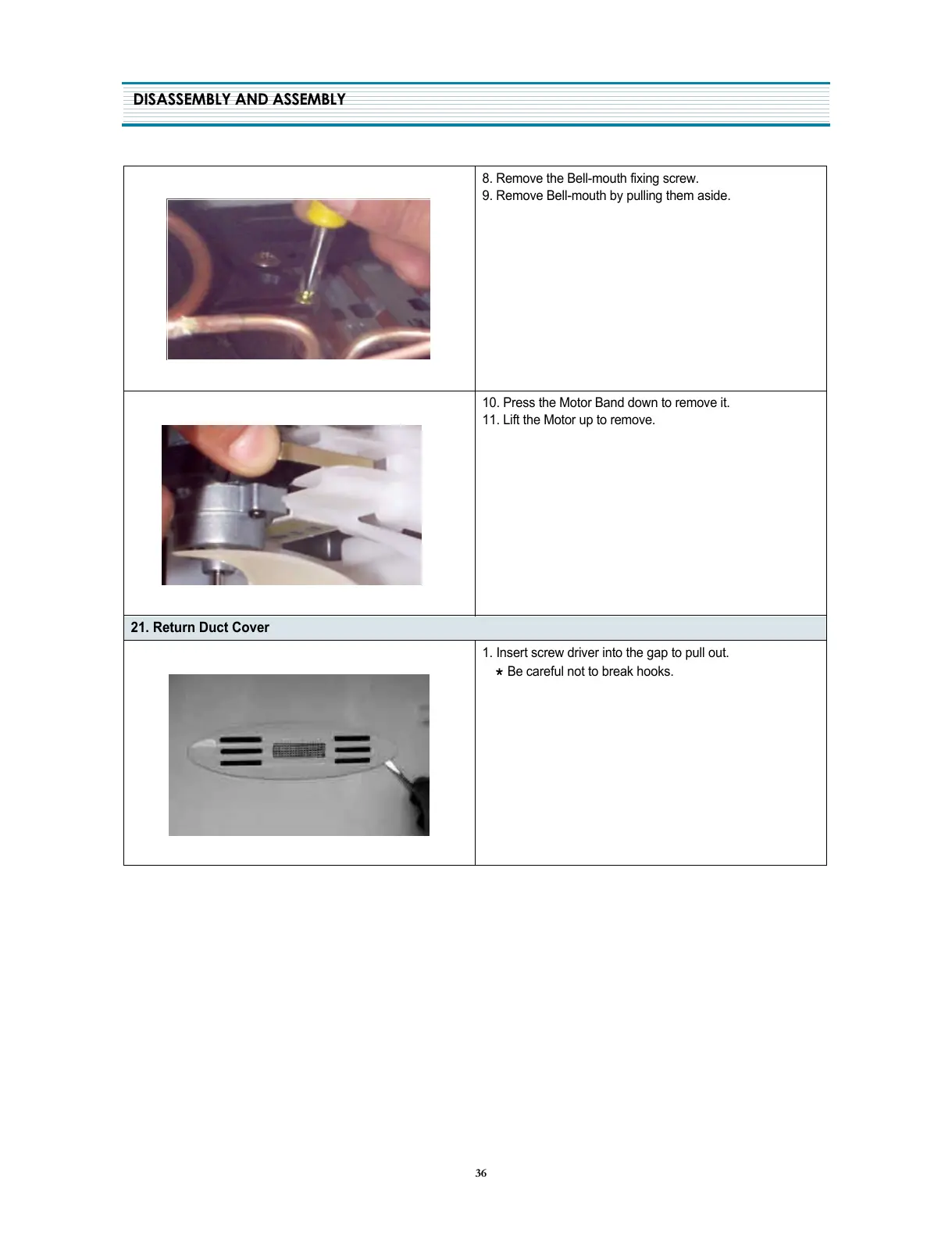

8. Remove the Bell-mouth fixing screw.
9. Remove Bell-mouth by pulling them aside.
10. Press the Motor Band down to remove it.
11. Lift the Motor up to remove.
21. Return Duct Cover
1. Insert screw driver into the gap to pull out.
Be careful not to break hooks.
DISASSEMBLY AND ASSEMBLY
To Next Page
