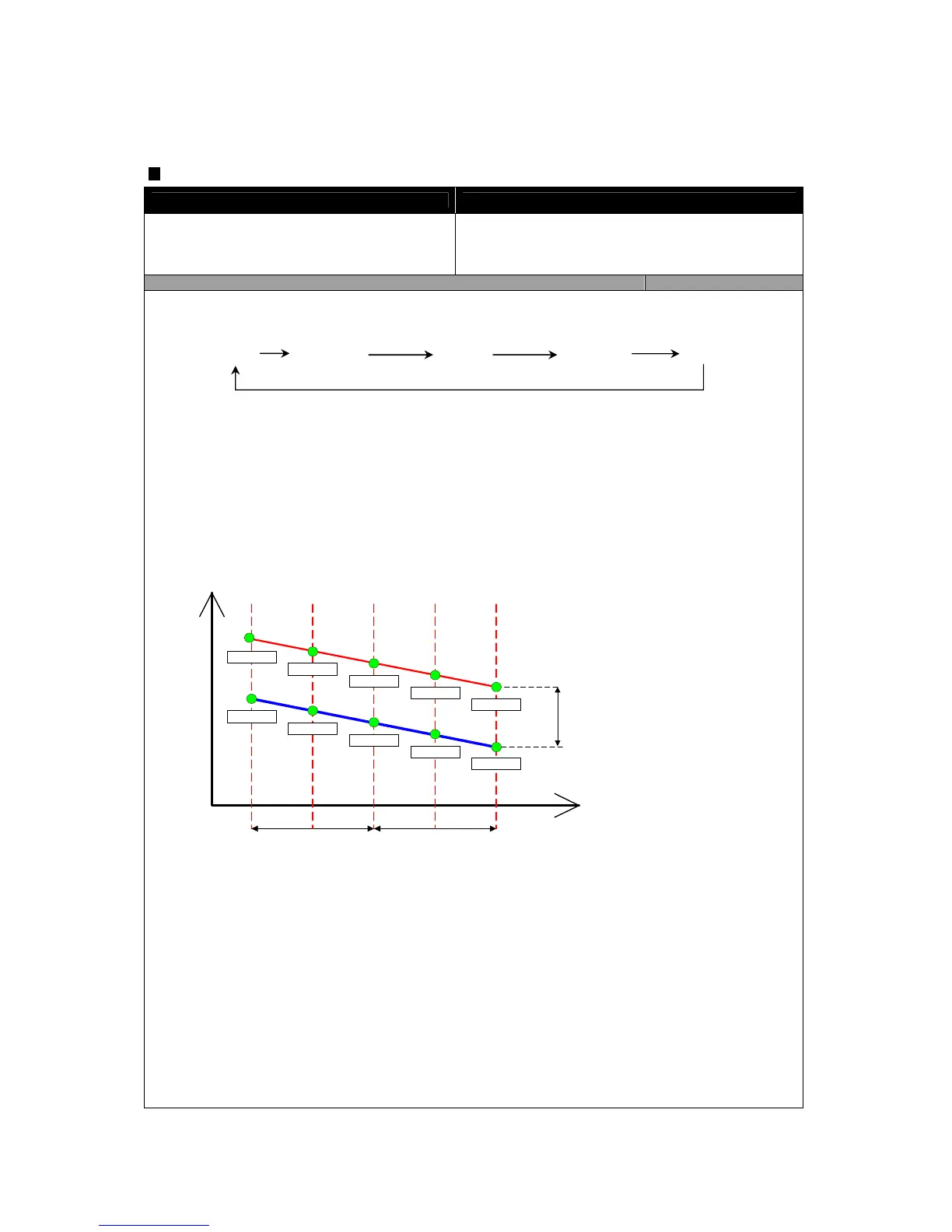

Daewoo FRS-2021 - Temperature Control of Freezer Compartment (FC)

Temperature Control of Freezer Compartment (FC)
INPUT Control Object
1. FRZ SET. button / SUPER FRZ. button
2. F-sensor
1. COMP
2. F-FAN
CONTENTS REMARKS
1. Temperature modes change by pushing the button.
2. Comp. and F-fan are controlled by ON / OFF point of each mode.
3. FC [ON / OFF] DIFF : 5
C
( Freezer middle OFFpoint : -20.0 C
4. FC [Low -> (Low-Mid) -> Mid -> (Mid-High)] DIFF : 2 degrees respectively
( * [(Mid-HIgh) -> High] DIFF : 4 degrees )
5. Control point of each mode
Temp.
MODE
ON point
OFF point
Low
Mid
High
STEP DIFFSTEP DIFF
ON/OFF DIFF
-15.0C
-20.0C
-21.0C
-26.0C
-11.0C
-16.0C
-22.0C
-18.0C
-13.0C
-20.0C
(Low-Mid) (Mid-High)
Low Low-Mid
Mid
Mid-High High
