2. Adjusting F/R Door Balance and Gap
Failure Checkup & Troubleshooting

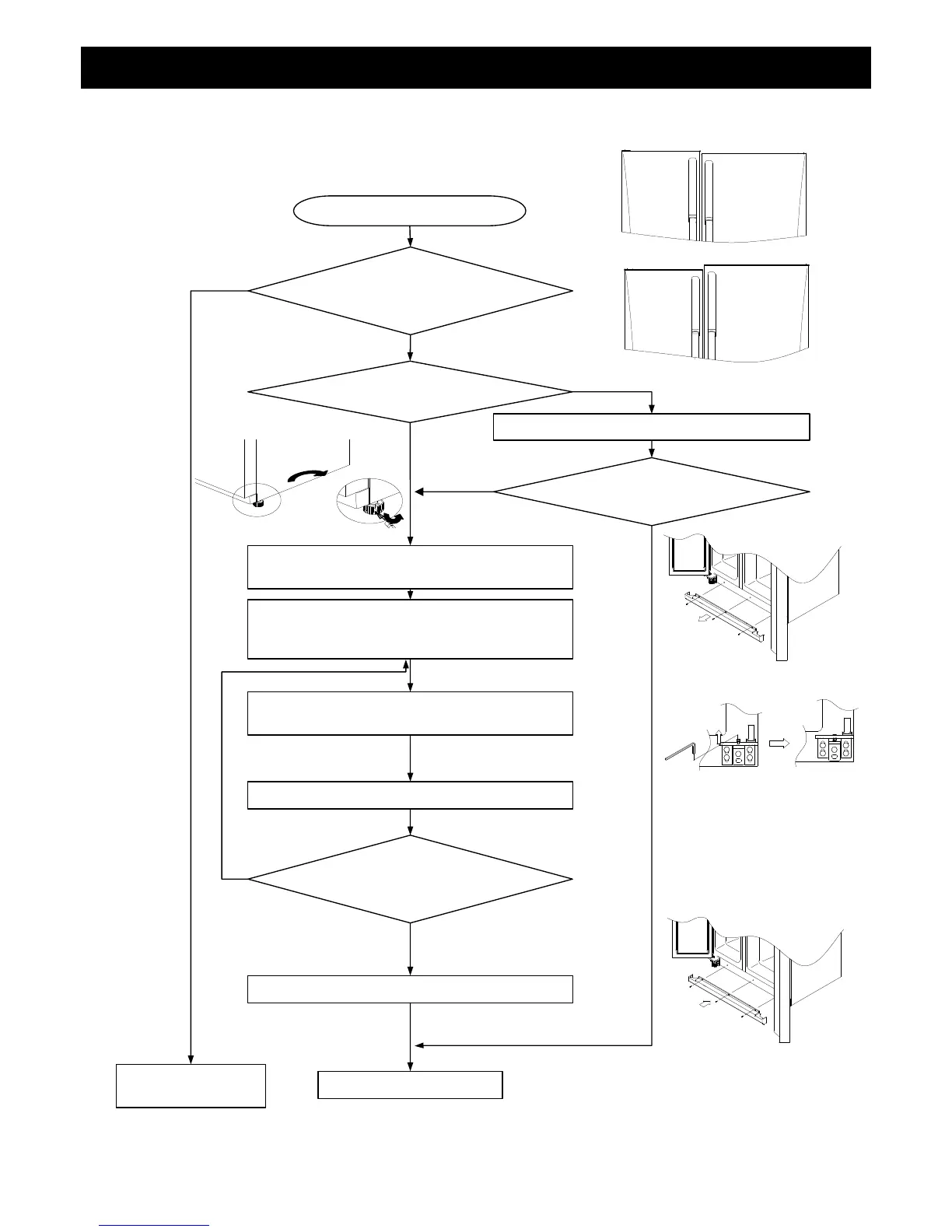

2-1) Top of F/R door is unbalanced horizontally.
(Refer to User Guide and SVC Manual for details.)
Page 4
Turn the wheels to level refrigerator.
Start
N
N
Y
Top of F/R is unbalanced
within 2 mm ?
Open F/R doors and remove front cover (fastened with 3
screws).
Close F/R doors and loosen 3 (left and right blots, not the
middle one) hinge bolts.
(Do not remove the 3 the bolts.)
Insert hex wrench into the hinge hole and turn clockwise or
counterclockwise to lift or down doors.
After adjusting door height, fasten the 3 hinge bolts back.
Open F/R doors again and replace front cover.
Top of F/R is unbalanced
within 2 mm ?
Top of F/R is unbalanced
within 2 mm ?
Refrigerator is level ?
Finish
Y
N
Y
N
F/R door horizontal
balance is OK.
Y
To Next Page
