The direction of handle
to set Vegetable Case or
Chilled Case is set OK ?
Refrigerator temp.
mode is “HIGH”?
Explain the temperature modes.
Advise to set the temp. to
“Middle”or “LOW”mode.
N
Y
N

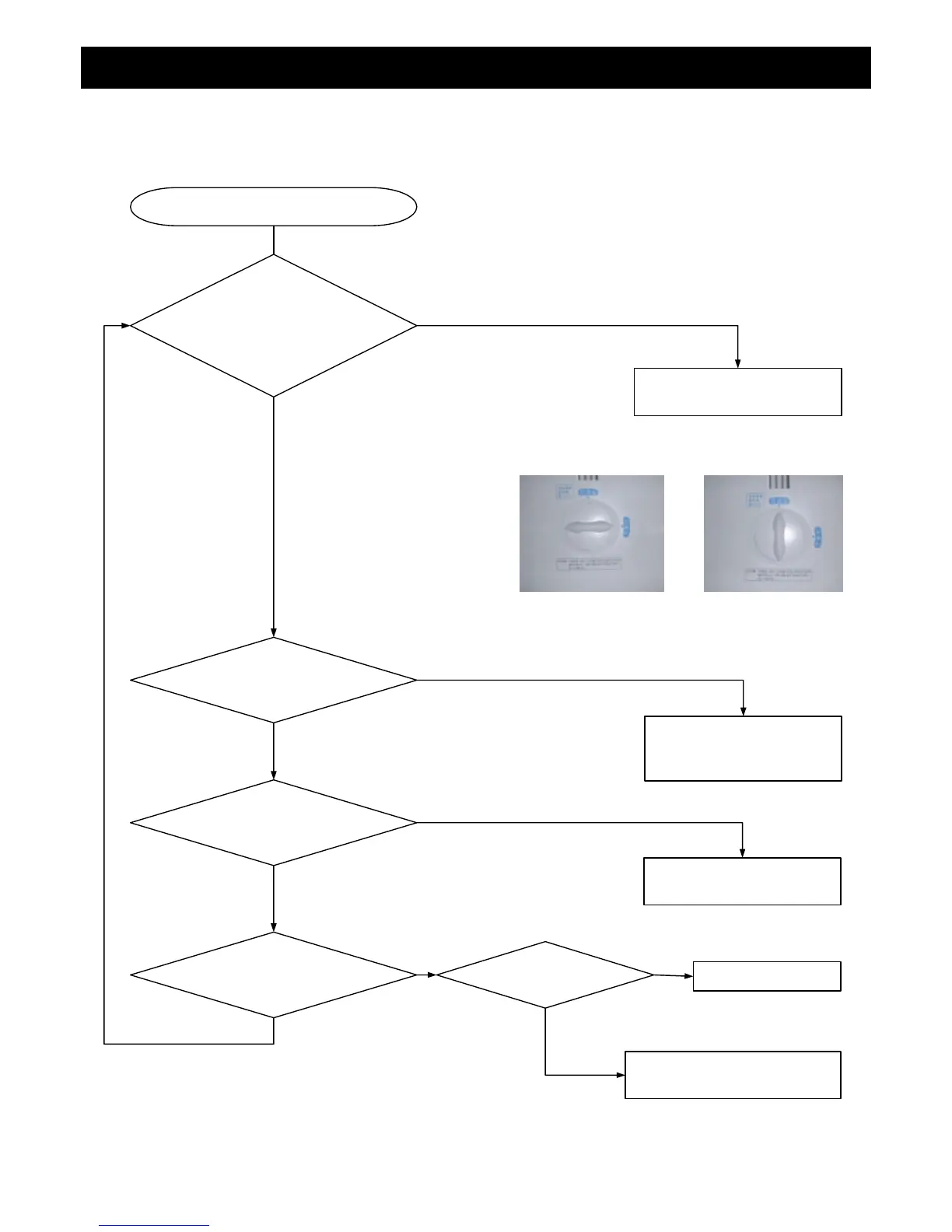

4-4) Excessive Refrigeration of Vegetable Case
R-sensor is OK ?
Set the direction of handle right to the
vegetable case.
R-check valve works
OK ?
Is there any R-sensor
error mode ?
Repair and/or Change the R-
check valve.
Change the R-sensor.
Y
N
N
Y
Check the R-sensor connection.
(Check the connector to Main PCB.)
N
Y
Failure Checkup & Troubleshooting
* Refer to “Repair /Change of Check
Valve”.
Vegetable Case
Chilled Case
Page 13
To Next Page
