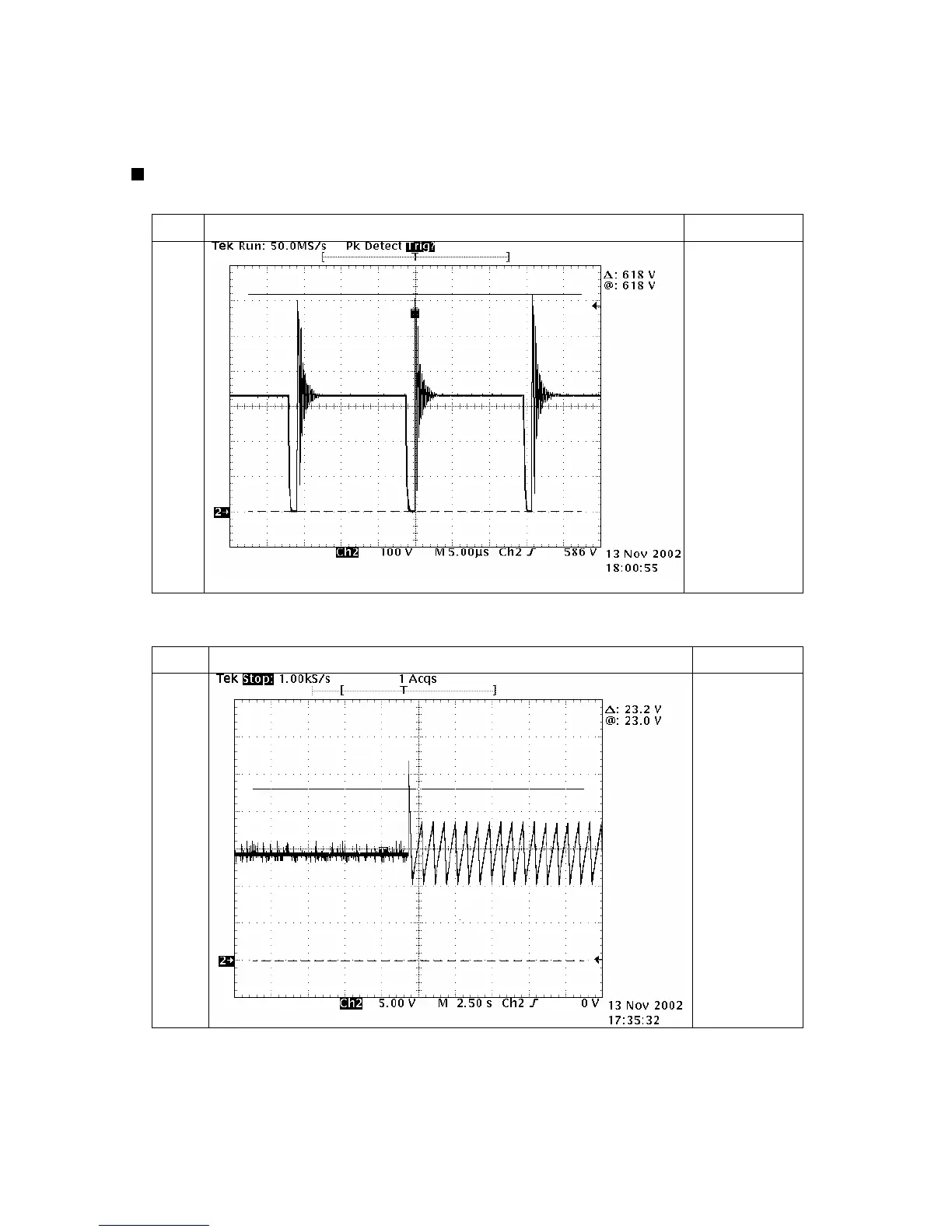

SMPS Movement Wave
Drain to Source Break Voltage
Point Oscilloscope Measurement Remarks
SMP
SIC
PIN
1,2
*Voltage between
DRAIN and
SOURCE :
below 650V
OVP(Overvoltage Protection) Wave at power input
Point
Oscilloscope Measurement
Remark
SMPS
IC PIN
3,4
*Minimum
standard
voltage at OVP
start :
23.2V
